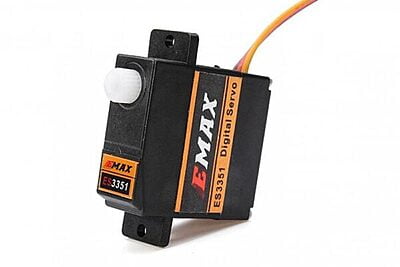

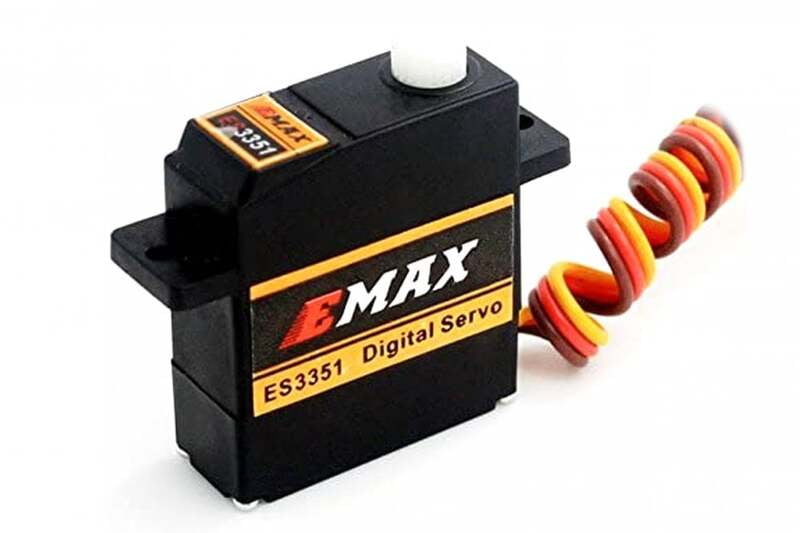

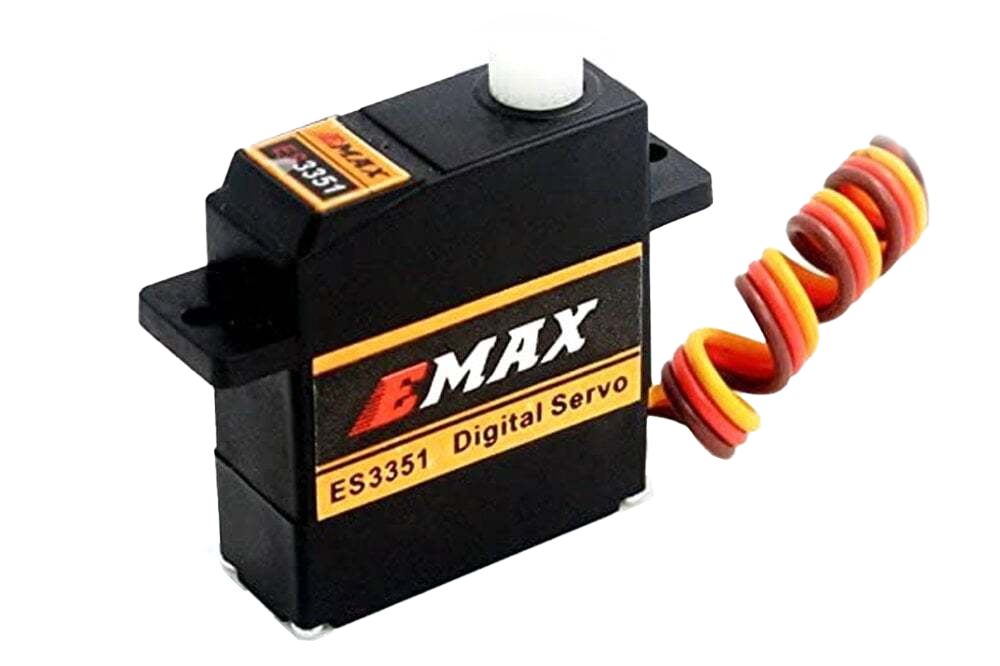

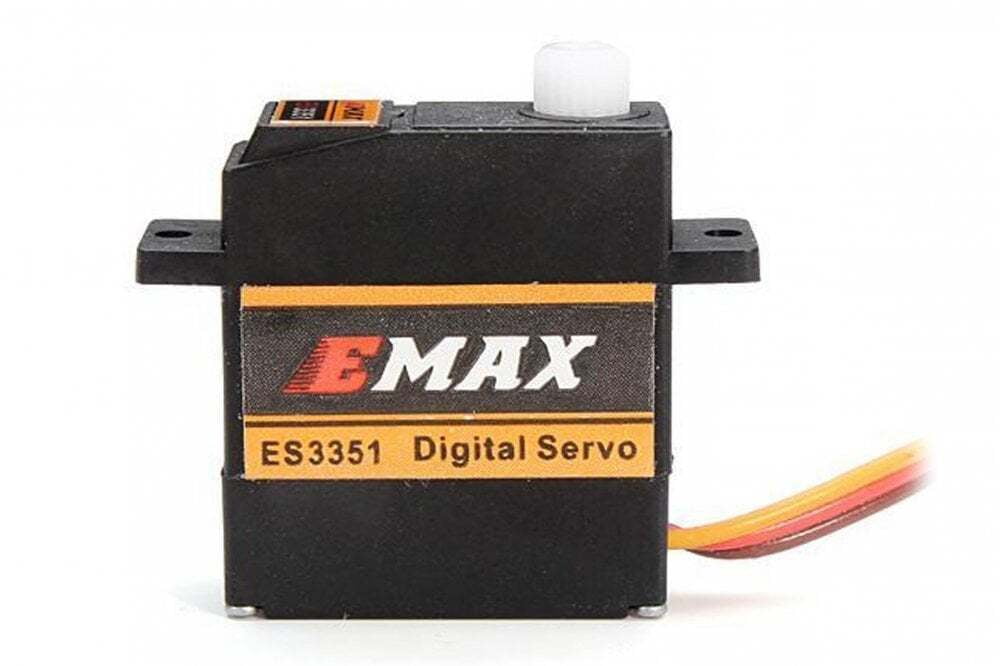

EMAX ES3351 Mini Plastic Gear Digital Servo
₹999.00 ₹3,399.00
Out of stock
The EMAX ES3351 is an ultra-lightweight 10.6g mini digital servo engineered for precision control in RC airplanes, gliders, and lightweight UAVs. Featuring a high-resolution digital amplifier and smooth plastic gear train, it delivers reliable centering accuracy and responsive actuation for tight control spaces.
Choose Quantity
Product Details
Features
- Ultra-Slim 9.17 mm Design : Fits thin glider wings and compact control-surface spaces.
- High-Precision Control : NOBLE potentiometer supports stable and accurate positioning.
- Smooth Servo Performance : Dual bearings help reduce backlash and provide smoother movement.
- Durable Construction : Engineering plastic gears and a durable plastic shell are designed for reliable operation.
- Glider-Focused Design : Optimized size, weight, and response for RC gliders and soaring applications.
- Wide Application Range : Suitable for RC gliders, sailplanes, DLG (Discus Launch Gliders), RC planes with thin control surfaces, lightweight robotics, and animatronics.
Technical Specifications
- Brand EMAX
- Model ES3351
- Signal Type Digital
- Operating Voltage 4.8V – 6.0V
- STD Direction Counter Clockwise (1500–1900 µs pulse)
- Stall Torque @ 4.8V2.0 kg·cm
- Operating Speed @ 4.8V0.12 sec/60° (no load)
- Stall Torque @ 6.0V2.2 kg·cm
- Operating Speed @ 6.0V0.10 sec/60° (no load)

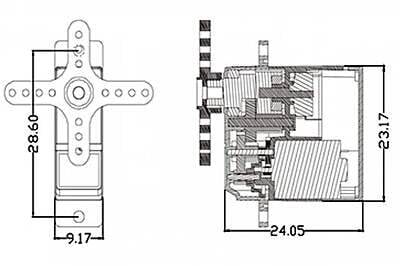

- Dimensions (L×W×H)23.17 × 9.17 × 24.05 mm
- Weight 10.6 g
- Plug Type FUT, JR
- Gear Material Special Engineering Plastics
- Bearings Dual-bearing
- Potentiometer NOBLE high-precision
Package Includes
- 1 × EMAX ES3351 Mini Digital Servo
- 1 × Assorted Servo Horns Set
- 1 × Mounting Screws Pack
Additional Details
- Generic Name: Ultra-Slim Micro Digital Servo || Plastic Gear Precision Servo || 9mm Thin Servo for RC Glider || RC Wing Servo || High-Speed Mini Servo
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
FAQs:
Q1) What is the operating voltage range for the EMAX ES3351 servo?
Ans: It operates on a voltage range of 4.8V to 6.0V DC.
Q2) What is the maximum torque output of this servo at 6.0V?
Ans: It delivers a maximum stall torque of 2.5 kgf.cm when powered at 6.0V.
Q3) What is the weight of the ES3351 servo?
Ans: It features an ultra-lightweight profile weighing approximately 10.6 grams.
Q4) Is this servo digital or analog?
Ans: It utilizes a digital circuit for faster response times and improved centering accuracy.
Q5) What applications are best suited for this mini servo?
Ans: It is ideal for RC gliders, park flyers, and lightweight fixed-wing UAV control surfaces.
