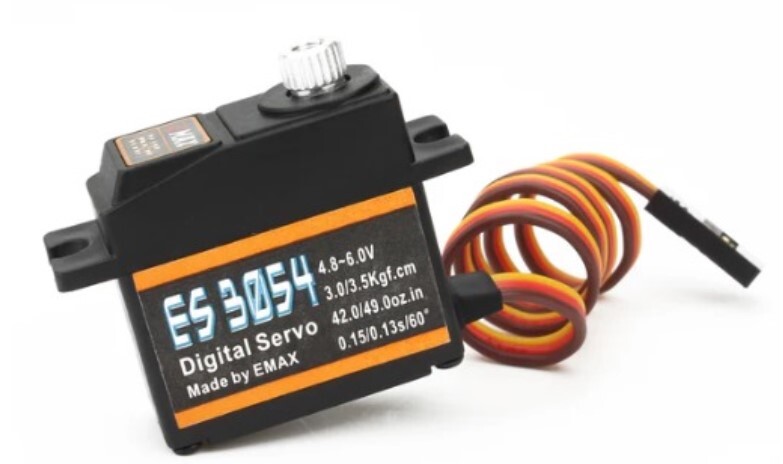

EMAX ES3054 Digital Metal Gear Servo

Features :

• Metal gear construction for durable RC airplane servo operation.
• 17g lightweight design for RC aircraft applications.
• Up to 3.5kg.cm stall torque at 6.0V.
• 0.13 sec/60° operating speed at 6.0V without load.
• 23T output head with FUT and JR plug compatibility.

Technical Details :

• Operating Voltage: 4.8V to 6.0V DC
• Stall Torque: 3.0 kgf.cm at 4.8V | 3.5 kgf.cm at 6.0V
• Operating Speed: 0.15 sec/60° at 4.8V | 0.13 sec/60° at 6.0V (no load)
• Dimensions: 28.45 x 13.00 x 31.10 mm
• Weight: 17g
• Gear Type & Spline: Metal Gears | 23T Output Spline
• Control Modulation: Digital

Additional Details:

Manufacturer: EMAX

Brand: EMAX

Generic Name: Digital Metal Gear Servo

Sold By: UAV Marketplace

Ideal For: RC airplanes, 3D aerobatic models, high-performance gliders, and UAV control surfaces

Package Details:

1x EMAX ES3054 Digital Metal Gear Servo, 1x Servo Arm and Mounting Screw Pack

FAQs:

Q1) What is the operating voltage range for the EMAX ES3054 servo?

Ans: It operates on a voltage range of 4.8V to 6.0V DC.

Q2) What is the maximum torque output of this servo?

Ans: It delivers a maximum stall torque of 3.5 kgf.cm when powered at 6.0V.

Q3) Is this servo digital or analog?

Ans: It features a high-resolution digital circuit for faster response and improved centering accuracy.

Q4) What spline count does the output shaft use?

Ans: It features a standard 23-tooth (23T) output spline.

Q5) What applications are best suited for the ES3054?

Ans: It is ideal for fixed-wing aircraft control surfaces, 3D aerobatic planes, gliders, and robotic actuators.
