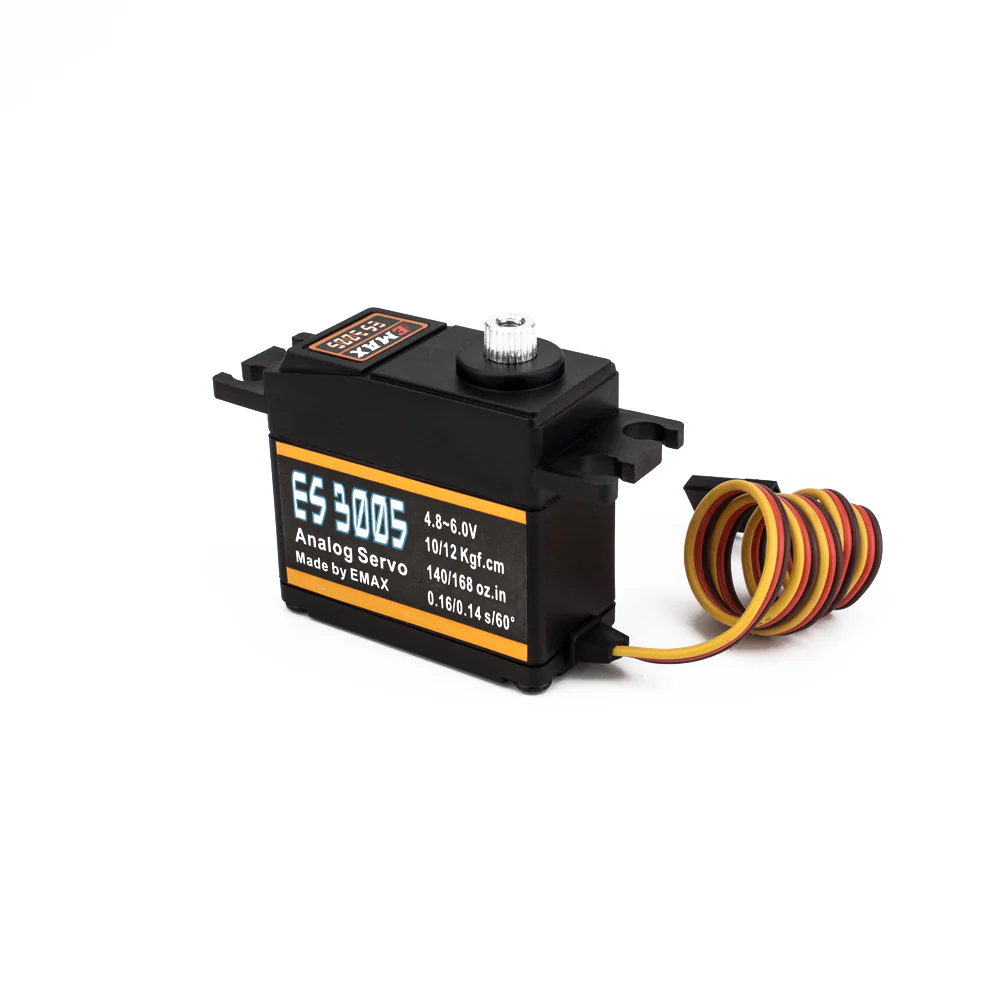

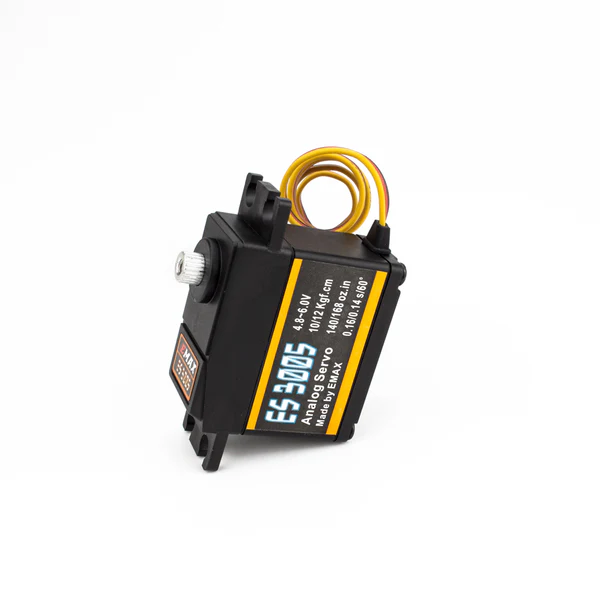

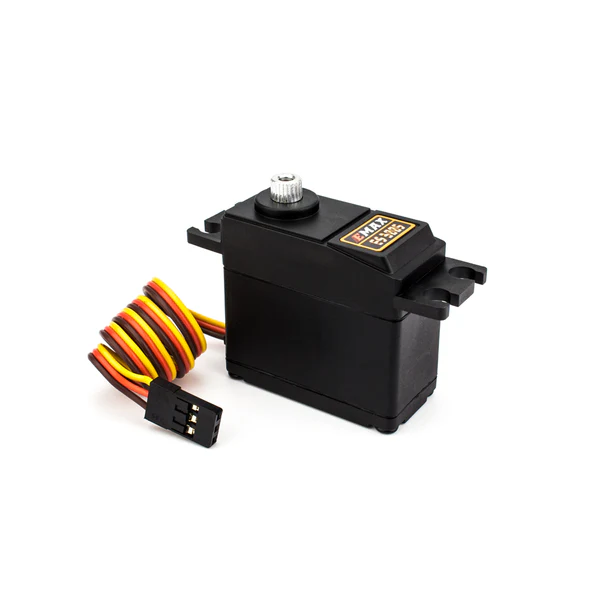

EMAX ES3005 4.8V-6V Metal Analog Servo
₹1,159.00 ₹3,289.00
The Emax ES3005 is a high-torque metal gear analog servo built for demanding RC applications. With an impressive torque output of up to 12 kg·cm, rugged metal gears, and a waterproof casing, it is ideal for RC helicopters, boats, and cars where strength, reliability, and durability are essential.
Choose Quantity
Product Details
Key Features
- Exceptional Torque: Up to 12 kg·cm for heavy-duty applications
- Waterproof Housing: Operates safely in wet environments
- Durable Metal Gears: Withstand wear, ideal for long-term use
- Dual Bearing Support: Enhanced stability and smooth movement
- Ideal for RC Helicopter, Boat, Car
- Applications : RC Helicopters (tail or cyclic servos), RC Boats (rudder or throttle control), RC Cars (steering or suspension systems), Robotics Projects requiring high torque, Mechanisms exposed to moisture or outdoor elements
Technical Specifications
- Brand Emax
- Model ES3005
- Signal Type Analog
- Operating Voltage 4.8V – 6.0V
- Operating Speed @ 4.8V0.16 sec/60° (no load)
- Operating Speed @ 6.0V0.14 sec/60° (no load)
- Stall Torque @ 4.8V10 kg·cm
- Stall Torque @ 6.0V12 kg·cm
- Rotation Direction Counter Clockwise (1500–1900 μs PWM)
- Gear Type Full Metal Gears
- Waterproof Yes
- Bearings Yes
- Servo Plug Type JR (FUTABA compatible)
- Cable Length 22 cm
- Dimensions (L×W×H)38 × 19 × 37 mm
- Weight 42g

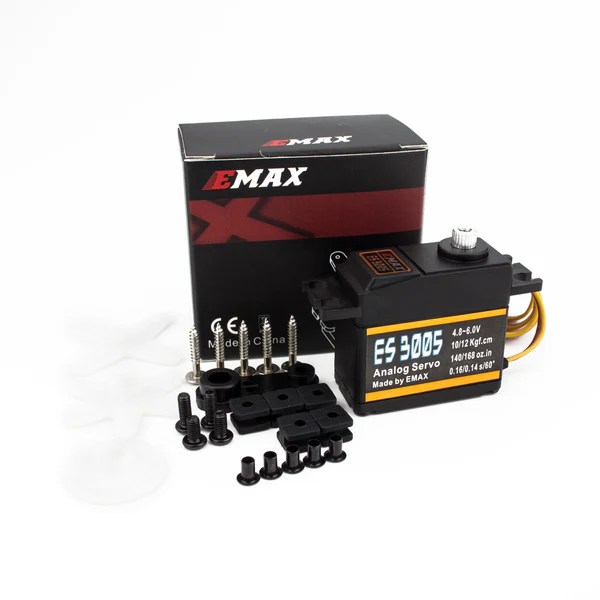

Package Includes
- 1 × Emax ES3005 Metal Analog Servo
- 1 × Accessory Kit (servo horns, screws)
Additional Details
- Generic Name: High Torque Analog Servo || Waterproof Metal Gear Servo || RC Helicopter Boat Car Servo || PWM Controlled Servo || Heavy Duty Servo Motor || Analog Robotics Servo
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
Frequently Asked Questions (FAQs)
Q1. Is the ES3005 compatible with Arduino or RC receivers?
Yes, it supports standard PWM control and works with most RC systems and microcontrollers.
Q2. Can it be used in wet conditions?
Yes, the servo is waterproof, making it suitable for boats or wet terrain use.
Q3. What kind of gear system does it use?
It uses a high-strength metal gear system for durability and long service life.
