Emax ES3001 37g Plastic Analog Servo For RC Model
₹539.00 ₹899.00
Out of stock

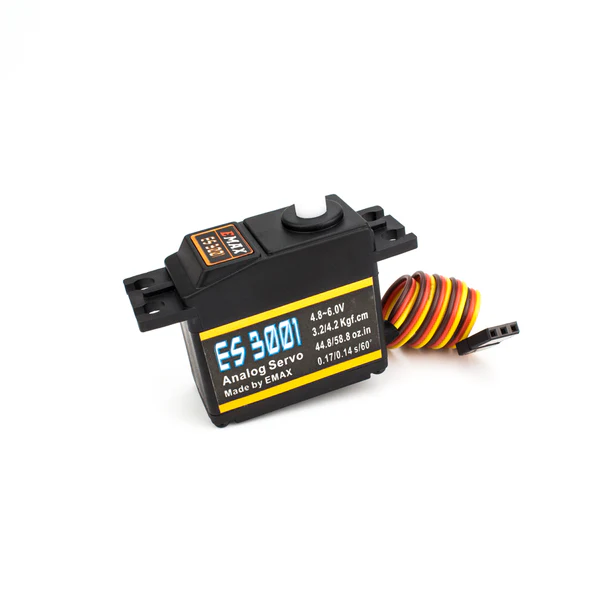

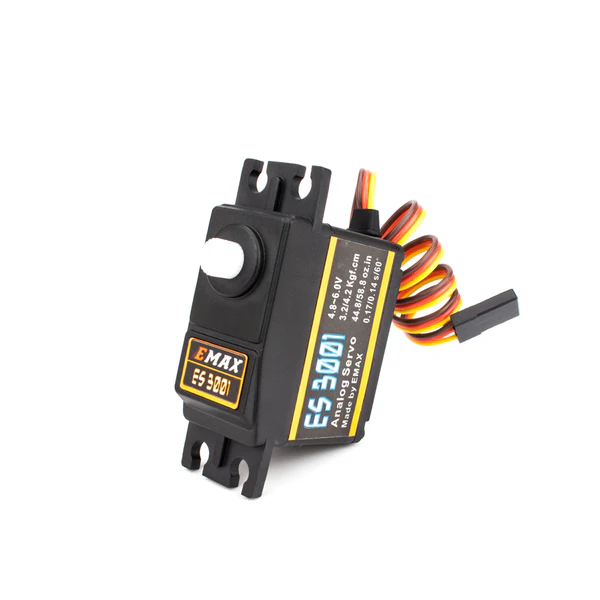

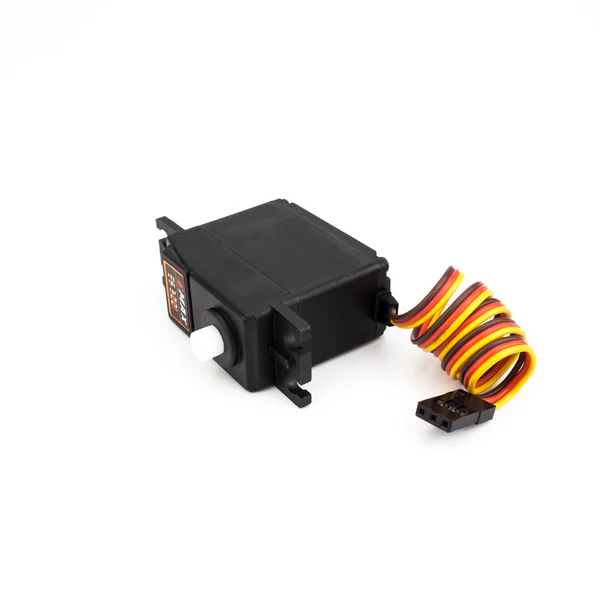

The EMAX ES3001 Analog Servo is a lightweight plastic-body servo designed for RC airplanes, gliders, cars, trucks, robotics, and other PWM-controlled projects. It provides up to 4.2 kg·cm torque at 6.0V, smooth analog movement, and FUT/JR connector compatibility for standard RC receivers and control systems.
Choose Quantity
Product Details
Features
- Reliable Analog Control: Provides smooth and predictable servo movement for general RC and mechanical applications.
- 4.2 kg·cm Maximum Torque: Delivers 3.2 kg·cm at 4.8V and up to 4.2 kg·cm at 6.0V.
- Lightweight Plastic Construction: 37g body helps keep the overall RC model weight manageable.
- PWM Control: Uses a standard PWM control signal for compatible RC receivers and microcontroller-based projects.
- FUT & JR Connector Compatibility: Designed to work with commonly used FUT and JR servo connections.
- Wide Application Range: Suitable for RC airplanes, gliders, cars, trucks, educational kits, robotics, and custom mechanical projects.
Technical Specifications
- Brand : EMAX
- Model : ES3001
- Servo Type : Analog Servo
- Operating Voltage : 4.8V–6.0V
- Stall Torque @ 4.8V : 3.2 kg·cm
- Stall Torque @ 6.0V : 4.2 kg·cm
- Operating Speed @ 4.8V : 0.14 sec/60° (no load)
- Operating Speed @ 6.0V : 0.17 sec/60° (no load)
- Control Signal : PWM (1500–1900 μs)
- Rotation Direction : Counter Clockwise
- Material : Plastic
- Temperature Range : 0°C to 55°C
- Plug Compatibility : FUT, JR
- Dimensions : 38.6 × 18.8 × 34.9 mm
- Weight : 37g
Package Includes
1 × EMAX ES3001 Analog Servo
1 × Accessory Pack with servo horns and screws
Additional Details:
Manufacturer: EMAX
Brand: EMAX
Generic Name: Analog Plastic Gear Servo
Sold By: UAV Marketplace
Ideal For: RC airplanes, gliders, RC cars, standard robotics, and educational microcontroller builds
FAQs
Q1. What is the maximum torque of the EMAX ES3001?
Ans: The maximum stall torque is 4.2 kg·cm at 6.0V. At 4.8V, it provides 3.2 kg·cm.
Q2. What voltage does the EMAX ES3001 require?
Ans: It operates from 4.8V to 6.0V.
Q3. What can the EMAX ES3001 be used for?
Ans: It can be used for RC airplanes, gliders, cars, trucks, robotics, educational kits, and custom PWM-controlled projects.
Q4. Is the EMAX ES3001 compatible with standard RC receivers?
Ans: Yes. It uses a standard PWM control signal and supports FUT and JR connector compatibility.
Q5. Can it be controlled using Arduino or similar microcontrollers?
Ans: Yes. Its standard PWM control makes it suitable for Arduino, Raspberry Pi, and similar PWM-capable control systems.
