EMAX ES08MA II 12G Mini Metal Gear Analog Servo
₹599.00 ₹2,589.00
Out of stock
The EMAX ES08MA II is a 12g mini analog servo with durable metal gears, designed for RC airplanes, gliders, small UAVs, robotics, and DIY projects. It provides up to 2.0 kgf·cm stall torque at 6.0V, fast response, and precise control through its NOBLE potentiometer and dual-bearing system. With Futaba/JR compatibility and a compact design, it is suitable for RC control surfaces and compact servo applications.
Choose Quantity
Product Details
Features:
- Metal Gear Construction: Durable metal gear train for reliable servo operation.
- 12g Mini Design: Compact and lightweight for RC aircraft, gliders, and small UAVs.
- Fast & Precise Control: 2.0 kgf·cm maximum torque, 0.10 sec/60° response at 6.0V, and NOBLE potentiometer.
- Dual-Bearing System: Helps reduce backlash and provides smooth, consistent servo movement.
Technical Specifications:
- Brand: EMAX
- Model: ES08MA II
- Type: Analog Servo
- Operating Voltage: 4.8V – 6.0V
- Operating Current: 200mA
- Stall Torque: 1.6 kgf·cm @ 4.8V, 2.0 kgf·cm @ 6.0V
- Operating Speed: 0.12 sec/60° @ 4.8V, 0.10 sec/60° @ 6.0V
- Dead Band: 1–2 µSec
- Gear Material: Metal
- Weight: 12g
- Connector Type: Futaba / JR Compatible
- Wire Length: 25cm
- Applications: Perfect for RC airplanes, gliders, small UAVs, robotic joints, control surfaces, automation projects, and other DIY systems requiring fast and reliable servo actuation in a compact package.

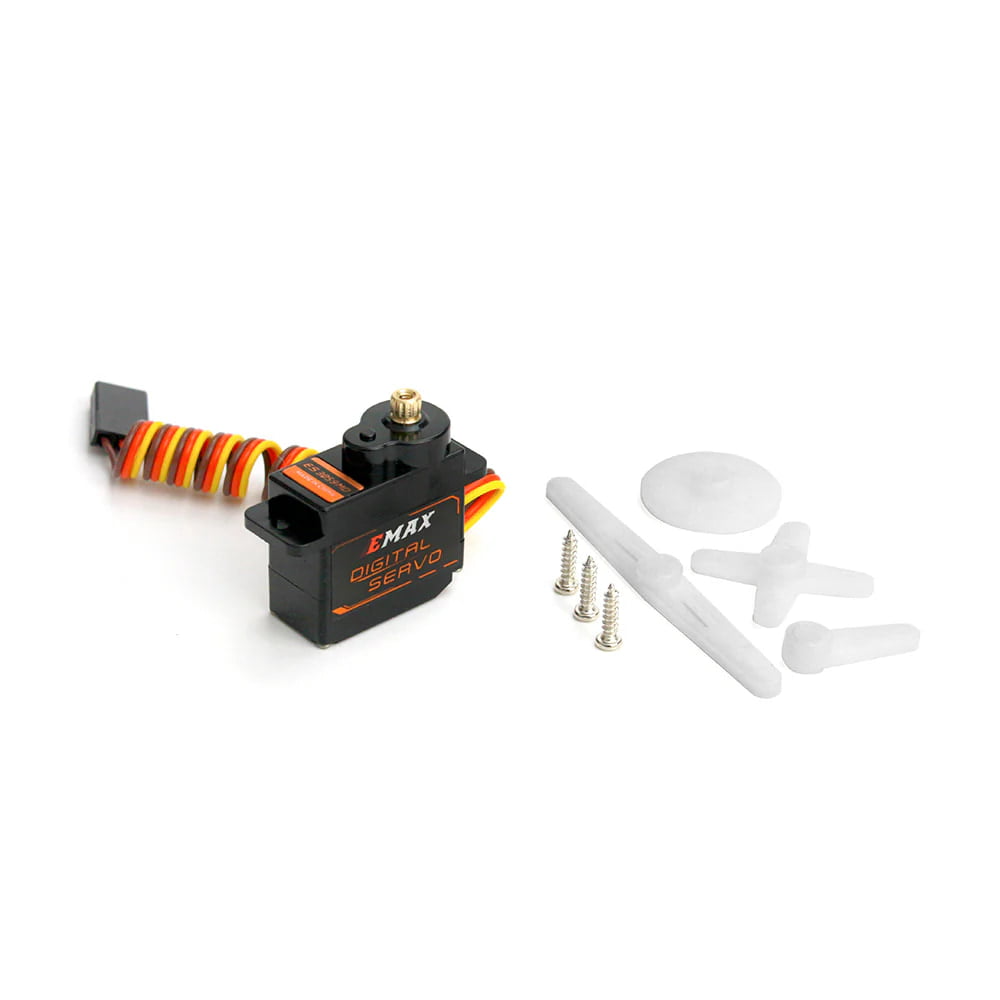

Package Includes:
1 × EMAX ES08MA II Mini Metal Gear Analog Servo
Additional Details:
Brand: EMAX
Model: ES08MA II
Generic Name: Mini Metal Gear Servo || Analog RC Servo || Robotics Metal Servo || JR Compatible Servo || Aircraft Control Surface Servo || 12g Servo Motor
Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
Ideal For: RC airplanes, RC gliders, small UAVs, robotic joints, aircraft control surfaces, automation projects, educational projects, and DIY systems.
FAQs:
Q1) What makes the ES08MA II different from the ES08A servo?
Ans: The ES08MA II uses metal gears for greater strength and durability, while the ES08A uses plastic gears.
Q2) Is the EMAX ES08MA II programmable?
Ans: No. It is an analog servo designed for standard PWM-based control in RC models, UAV applications, and robotics projects.
Q3) Can I use the ES08MA II for a glider or foam plane?
Ans: Yes. Its compact 12g design, metal gears, and fast response make it suitable for RC gliders, foam planes, and fixed-wing aircraft.
Q4) What is the maximum torque of the ES08MA II?
Ans: The maximum stall torque is 2.0 kgf·cm at 6.0V and 1.6 kgf·cm at 4.8V.
Q5) Is the ES08MA II compatible with standard RC receivers?
Ans: Yes. It supports Futaba and JR-compatible connectors and standard analog servo control.
