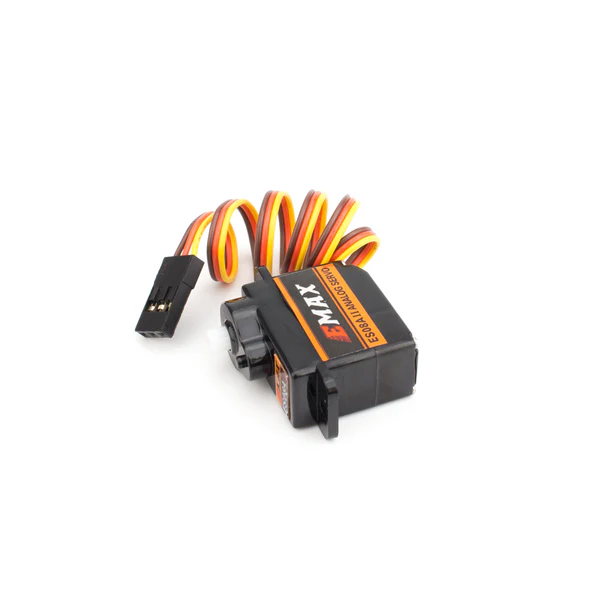

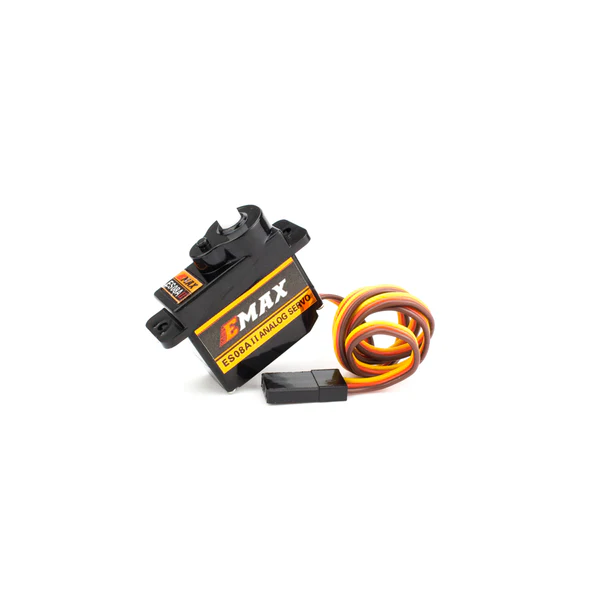

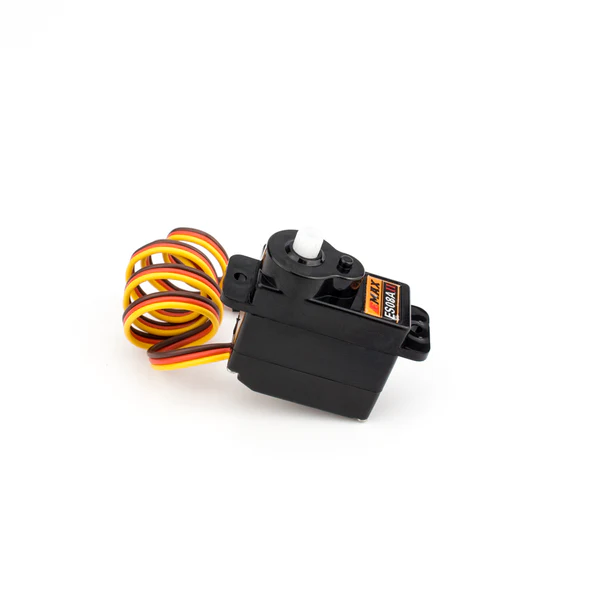

EMAX ES08A II Mini Plastic Gear Analog Servo
₹499.00 ₹999.00
Out of stock
The EMAX ES08A II is a lightweight and responsive analog servo built for RC hobbyists seeking reliable performance at an affordable price. Weighing just 8.5 grams, this servo offers smooth and consistent operation with a stall torque of up to 1.8kg/cm and an operating speed as fast as 0.10 seconds per 60° at 6V. With plastic gears, standard JR/Futaba-compatible plug, and compact dimensions, the ES08A II is ideal for small RC planes, foamies, gliders, robotics, and various control surface applications. Its stable analog control makes it a great fit for fixed-wing aircraft and entry-level builds.
Product Details
Key Features:
- Lightweight design at only 8.5g
- Quick response time: 0.10 sec/60° at 6.0V
- Consistent torque across 4.8V–6.0V input range
- Standard JR/Futaba compatible plug
- Analog control system for basic hobby project
- Compact size fits most standard servo bays
- High precision for smooth motion and positioning
Technical Specifications:
- Brand: EMAX
- Model: ES08A II
- Type: Analog Servo
- Operating Voltage: 4.8V – 6.0V
- Stall Torque: 1.5kg·cm @ 4.8V, 1.8kg·cm @ 6.0V
- Operating Speed: 0.12 sec/60° @ 4.8V, 0.10 sec/60° @ 6.0V
- Plug Type: JR (Futaba compatible)
- Cable Length: 25cm
- Gear Material: Plastic
- Size: 23 × 11.5 × 24mm
- Measured Dimensions: L: 24mm × W: 12mm × H: 28mm
- Weight: 8.5g
- Applications: Perfect for RC planes, electric gliders, foamies, small UAVs, robotic arms, and other lightweight control systems where fast and reliable actuation is needed without the bulk or weight of larger servos.
Package Includes:

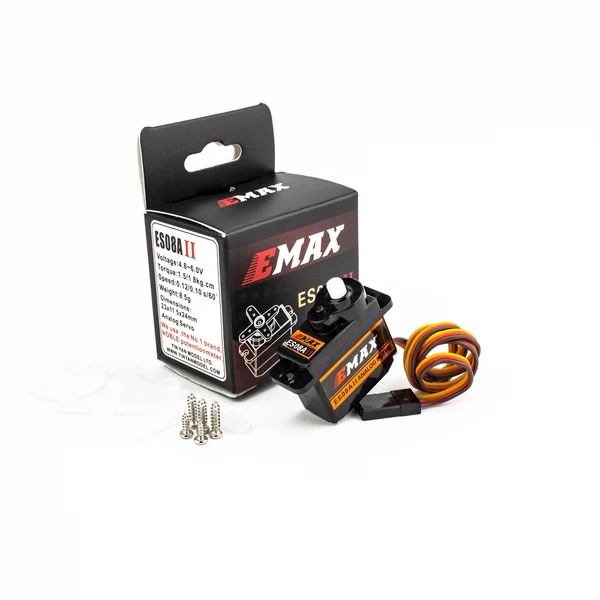

- 1 × EMAX ES08A II Mini Analog Servo
Additional Details:
- Brand: EMAX
- Model: ES08A II
- Generic Name: Mini Analog Servo || Lightweight RC Servo || Plastic Gear Servo || JR Plug Servo || Fixed-Wing Aircraft Servo || 9g Class Servo
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
Frequently Asked Questions (FAQs):
Q1. Is the ES08A II servo suitable for fixed-wing RC planes?
Yes, it is widely used for control surfaces like rudders, elevators, and ailerons in small to medium-sized fixed-wing aircraft.
Q2. Can this servo be powered with a 2S LiPo?
Directly no, since 2S LiPo outputs up to 8.4V. This servo operates safely between 4.8V and 6.0V. You can use a BEC or voltage regulator with a 2S LiPo setup.
Q3. Does this come with servo arms and mounting hardware?
Yes, it includes one servo along with standard servo arms and screws for installation.
