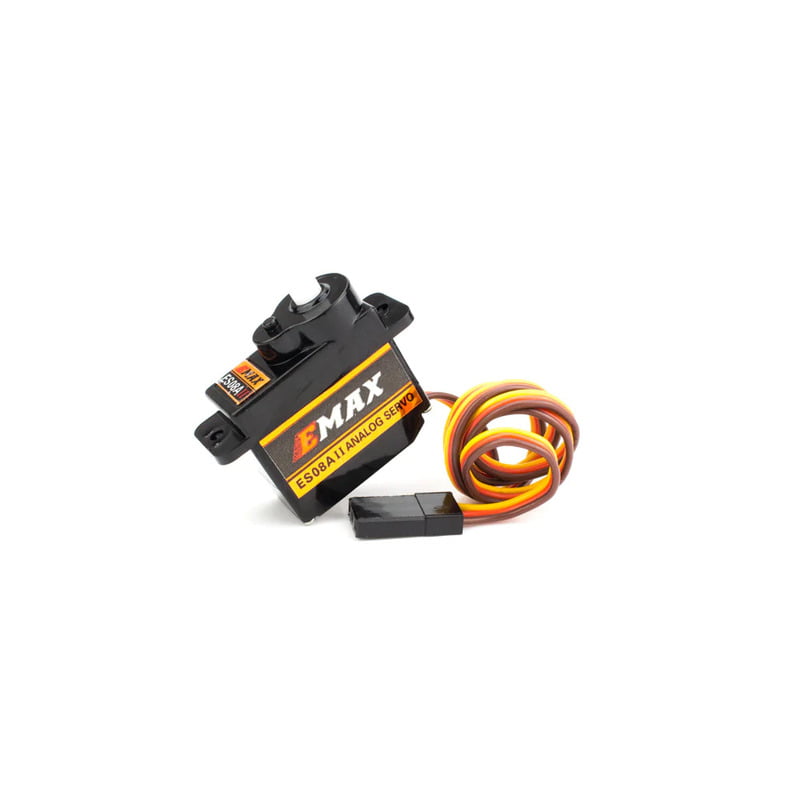

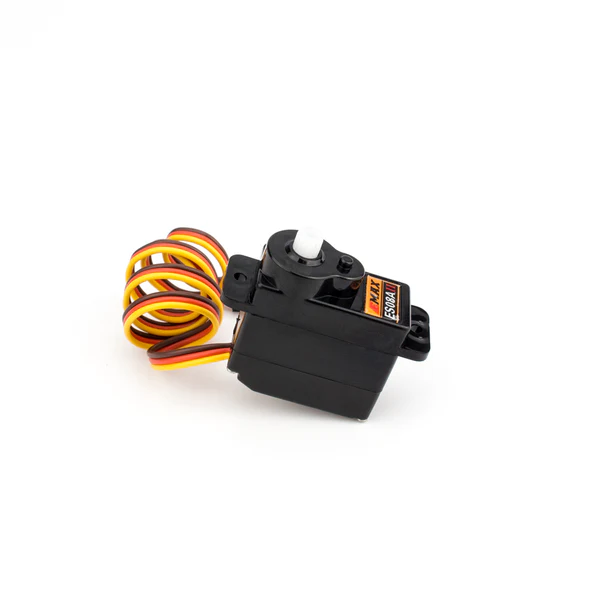

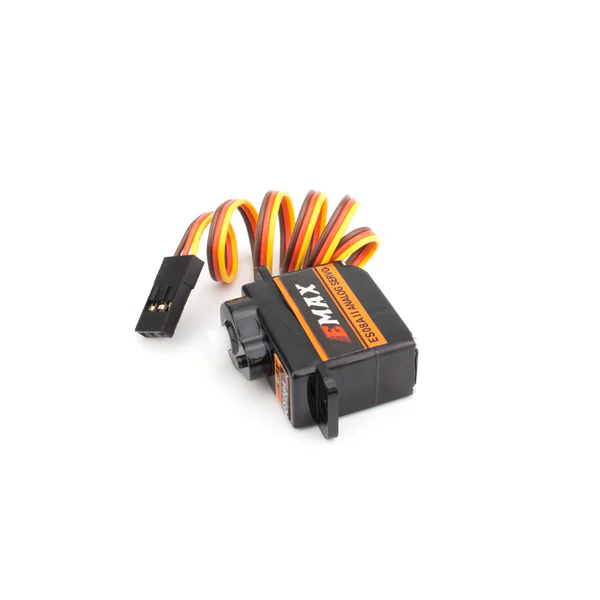

EMAX ES08A II Mini Plastic Gear Analog Servo
₹499.00 ₹999.00
Out of stock
The EMAX ES08A II is a lightweight 8.5g mini analog servo engineered for precision control in RC models, park flyers, and small robotics. Featuring a reliable analog amplifier and smooth plastic gear train, it delivers dependable centering accuracy and responsive actuation for light control loads.
Choose Quantity
Product Details
Features:
- Lightweight 8.5g Design : Reduces added weight in RC planes, gliders, small UAVs, and other lightweight builds.
- Fast Servo Response : Delivers 0.10 sec/60° operating speed at 6.0V for responsive control-surface movement.
- 1.5–1.8kg·cm Torque : Provides 1.5kg·cm at 4.8V and 1.8kg·cm at 6.0V for lightweight control applications.
- 4.8V–6.0V Operation : Designed for compatible RC systems operating within the specified voltage range.
- JR/Futaba Compatible Plug : Uses a standard JR connector compatible with supported Futaba RC systems.
- Compact 23 × 11.5 × 24mm Size : Fits compact servo bays and restricted spaces in lightweight aircraft.
- Plastic Gear Construction : Lightweight plastic gears support smooth operation for hobby and control-surface applications.
Technical Specifications:
- Brand: EMAX
- Model: ES08A II
- Type: Analog Servo
- Operating Voltage: 4.8V – 6.0V
- Stall Torque: 1.5kg·cm @ 4.8V, 1.8kg·cm @ 6.0V
- Operating Speed: 0.12 sec/60° @ 4.8V, 0.10 sec/60° @ 6.0V
- Plug Type: JR (Futaba compatible)
- Cable Length: 25cm
- Gear Material: Plastic
- Size: 23 × 11.5 × 24mm
- Measured Dimensions: L: 24mm × W: 12mm × H: 28mm
- Weight: 8.5g
- Applications: Perfect for RC planes, electric gliders, foamies, small UAVs, robotic arms, and other lightweight control systems where fast and reliable actuation is needed without the bulk or weight of larger servos.
Package Includes:

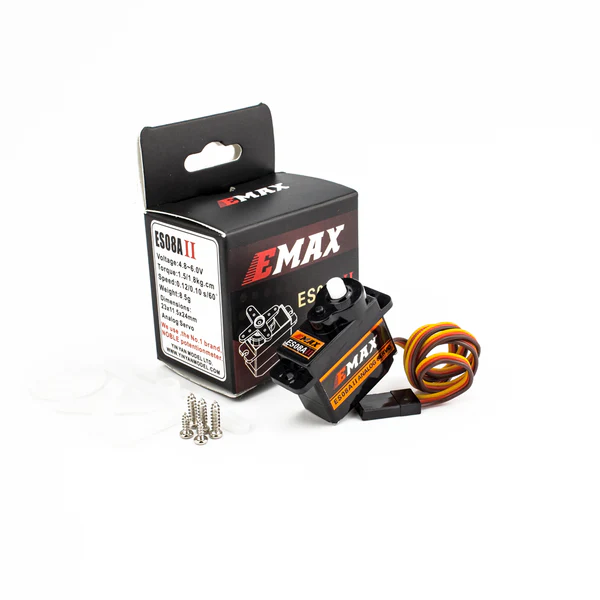

- 1 × EMAX ES08A II Mini Analog Servo
Additional Details:
- Brand: EMAX
- Model: ES08A II
- Generic Name: Mini Analog Servo || Lightweight RC Servo || Plastic Gear Servo || JR Plug Servo || Fixed-Wing Aircraft Servo || 9g Class Servo
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
FAQs:
Q1. What is the EMAX ES08A II servo used for?
Ans: The EMAX ES08A II is a lightweight analog servo suitable for RC planes, electric gliders, foam aircraft, small UAVs, robotic arms, and other lightweight control systems.
Q2. What voltage does the EMAX ES08A II support?
Ans: The EMAX ES08A II operates from 4.8V to 6.0V.
Q3. How much torque does the ES08A II provide?
Ans: It provides 1.5kg·cm stall torque at 4.8V and 1.8kg·cm at 6.0V.
Q4. How fast is the EMAX ES08A II servo?
Ans: Its operating speed is 0.12 sec/60° at 4.8V and 0.10 sec/60° at 6.0V under no-load conditions.
Q5. Can the ES08A II be used with a 2S LiPo battery?
Ans: Not directly. A 2S LiPo can reach 8.4V, while the ES08A II is rated for 4.8V–6.0V. A suitable BEC or voltage regulator is required to provide the correct voltage.
