EMAX ECO II Series 2807 3-6S Brushless Motor
₹1,679.00 - ₹1,999.00

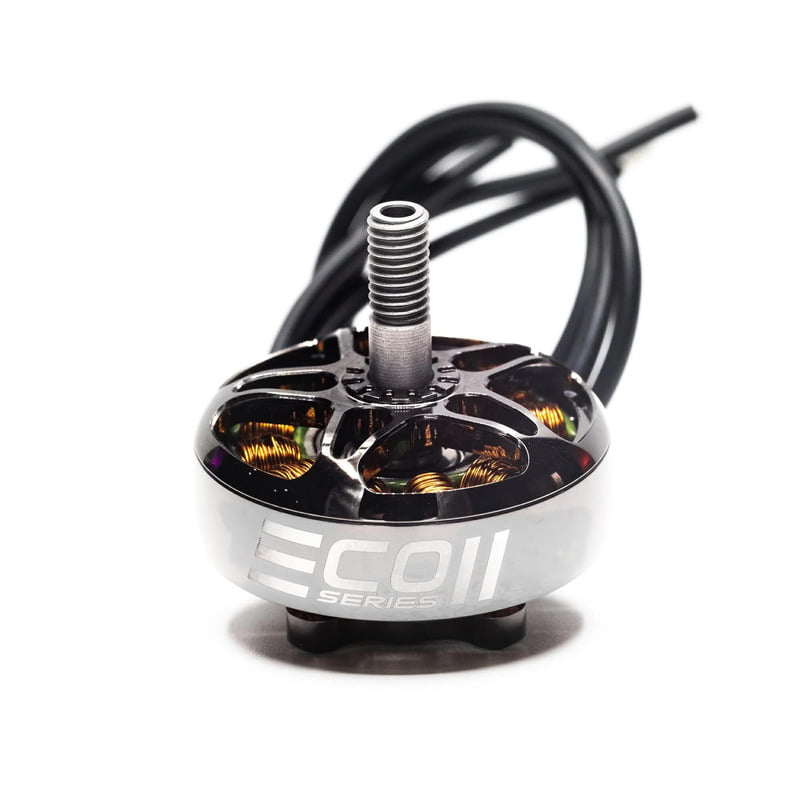

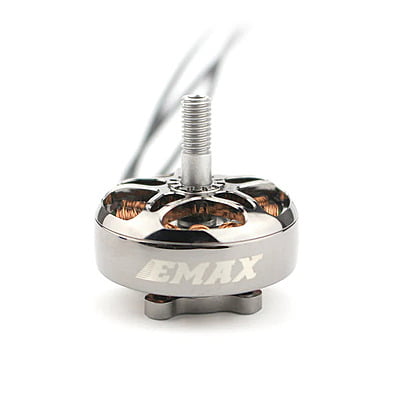

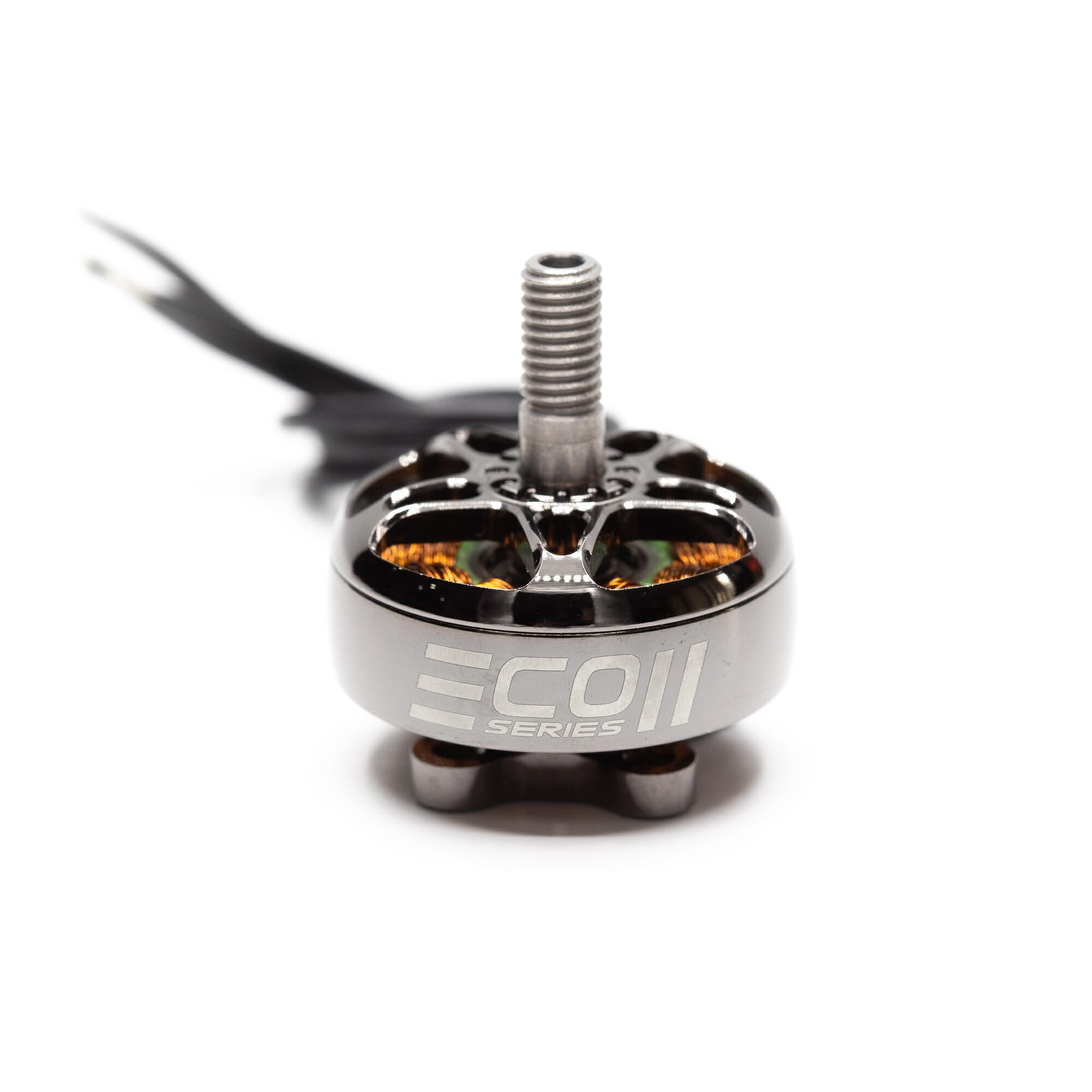

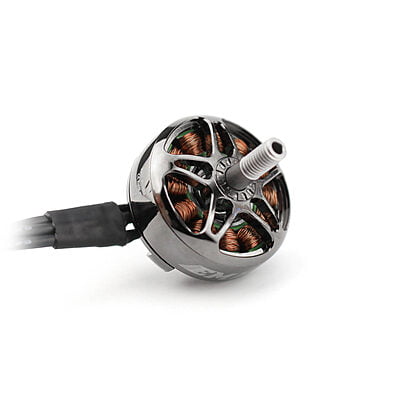

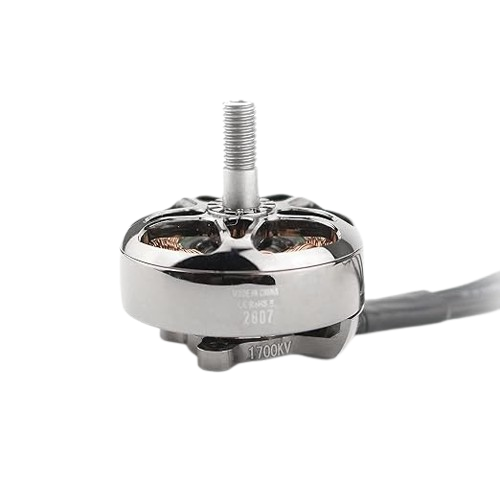

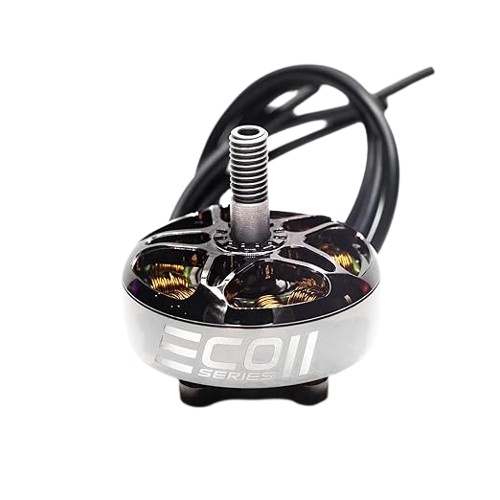

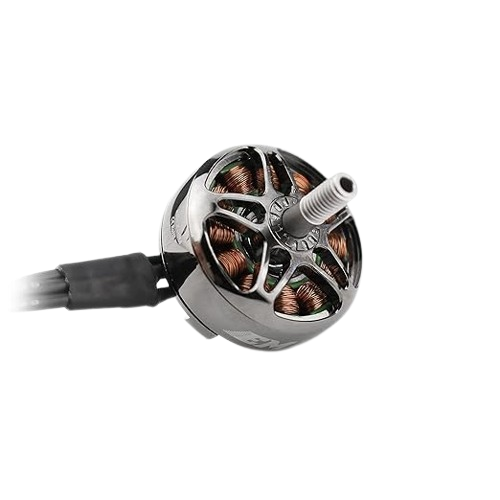

The EMAX ECO II Series 2807 Brushless Motor is a high-performance propulsion unit engineered for 6-inch to 7-inch long-range FPV drones and heavy-lift multirotors. Featuring a robust steel shaft, precision bearings, and powerful N52SH arc magnets, it delivers exceptional thrust, rapid throttle response, and long-term durability under demanding flight conditions.
KV
Choose Quantity
Product Details
Features :
- Upgraded N52SH curved arc magnets for stronger magnetic fields and faster throttle response.
- Robust steel shaft and reinforced unibell architecture providing exceptional crash resistance.
- Precision bearing design minimizing friction and ensuring smooth high-RPM operation.
- Standard 19x19mm mounting hole pattern compatible with standard 6-inch and 7-inch drone frames.
- Multi-strand winding configuration improving electrical efficiency and thermal performance.
Technical Specifications:
- Framework: 12N14P
- Stator Dimensions: 28mm x 7mm
- Shaft Diameter: 4mm
- Propeller Mount: M5
- Mounting Pattern: 19x19mm
- Input Voltage: 3-6S LiPo (11.1V - 25.2V)
- KV Options: 1300KV / 1500KV / 1700KV
- Wire Gauge: 18AWG, 200mm length
- Weight (w/o wires): 47.6g (1300KV), 46.9g (1500KV), 47.2g (1700KV)
- Bearing: 12mm x 6mm x 4mm
Additional Details:
- Manufacturer: EMAX
- Brand: EMAX
- Generic Name: Brushless Motor || FPV Drone Motor || Long-Range Motor || Electric Motor || Quadcopter Motor || UAV Motor || Outrunner Motor || 2807 Motor
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: 6-7 inch long-range FPV drones, heavy-lift cinematic rigs, high-efficiency cruising builds, and freestyle with larger props.
Package Details:

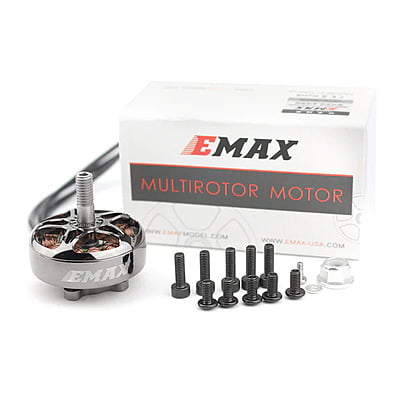

- Includes: 1 x EMAX ECO II 2807 Brushless Motor (Selected KV), 5 x M3*10mm Screws, 1 x M5 Propeller Nut, 1 x Washer and Screw for Shaft.
FAQs:
Q1) What propeller sizes is the EMAX ECO II 2807 motor designed for?
Ans: The EMAX ECO II 2807 is designed for 6-inch and 7-inch propeller applications.
Q2) What battery voltage range does the EMAX ECO II 2807 support?
Ans: It supports 3S to 6S LiPo battery configurations, depending on the selected KV variant.
Q3) What type of magnets are used in the EMAX ECO II 2807 motor?
Ans: The EMAX ECO II 2807 uses N52SH curved arc magnets in its motor rotor.
Q4) What mounting pattern does the EMAX ECO II 2807 use?
Ans: The motor features a 19 × 19mm mounting hole pattern for compatible drone frames.
ECOII 2807 1300KV
ECOII 2807 1500KV
ECOII 2807 1700KV
