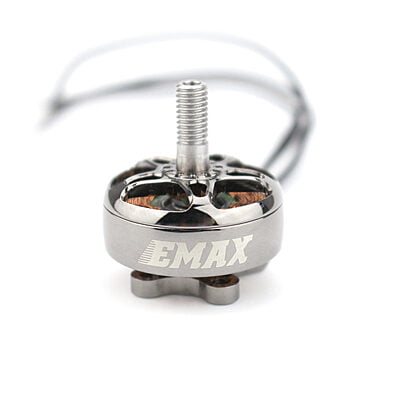

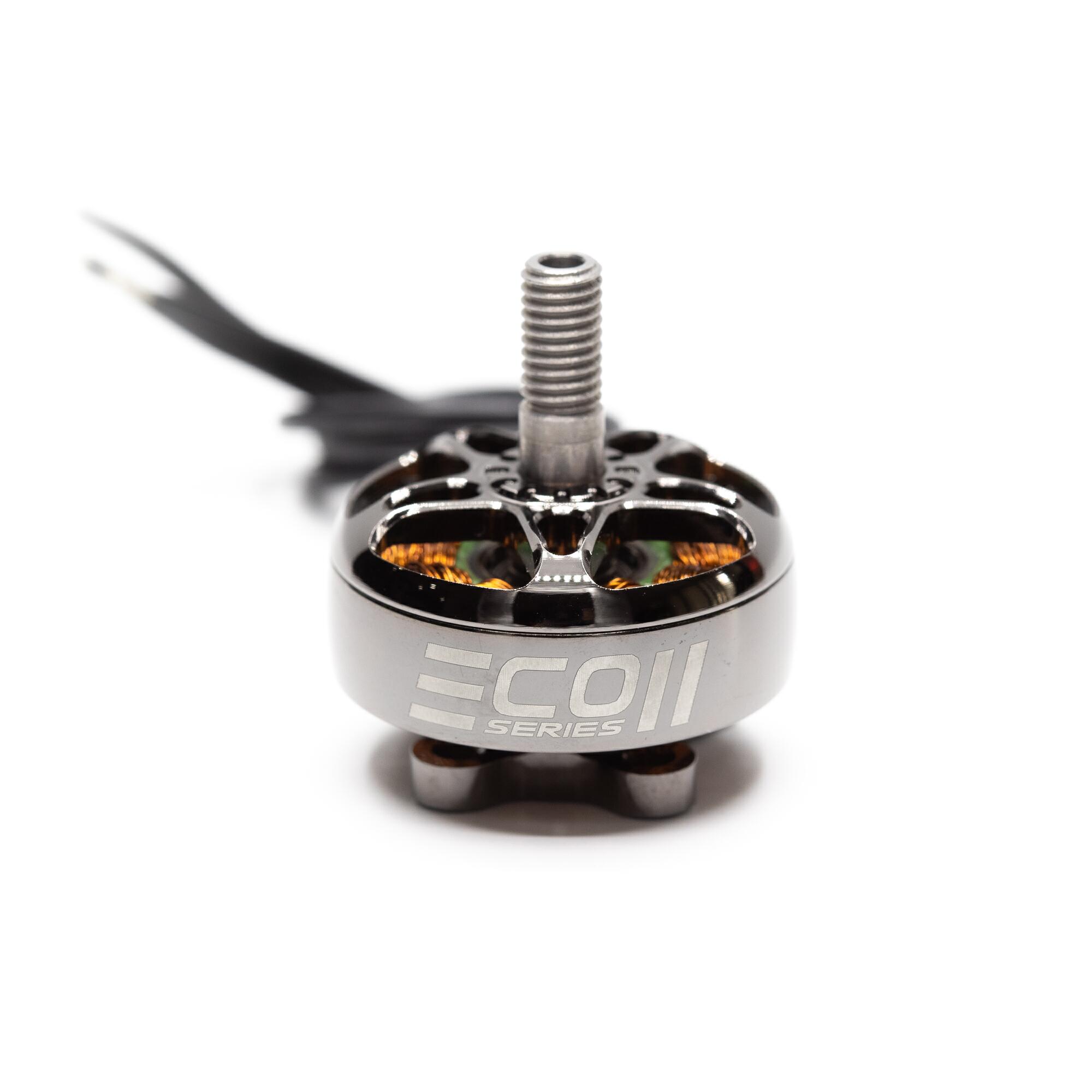

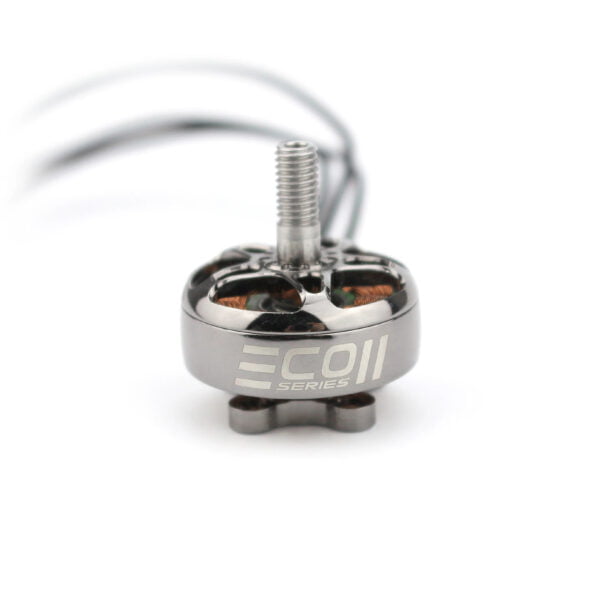

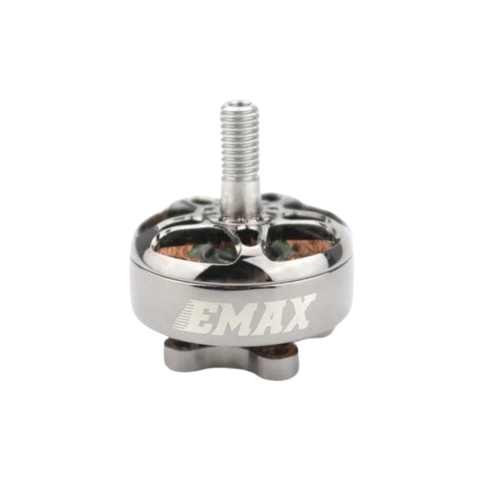

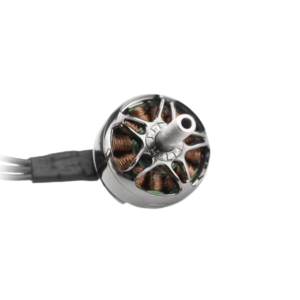

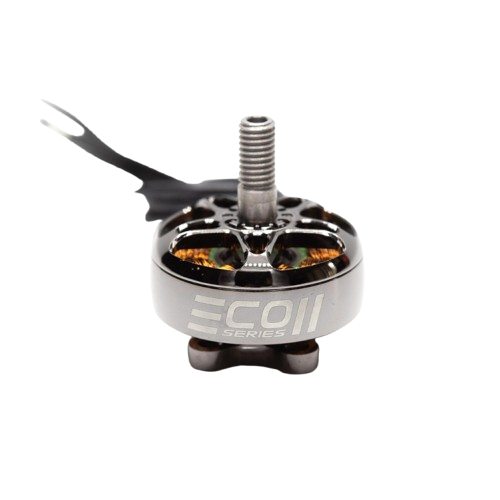

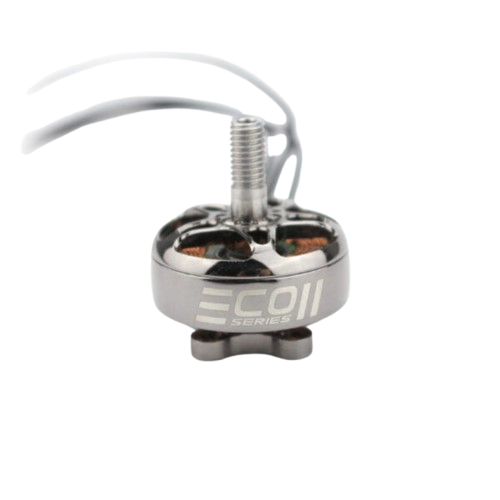

EMAX ECO II Series 2306 Brushless Motor
₹1,319.00 - ₹1,859.00
The EMAX ECO II Series 2306 Brushless Motor is a high-performance propulsion option built for 5-inch FPV racing and freestyle drones. Featuring precision bearings, a durable steel shaft, and multi-strand winding architecture, it delivers smooth power, high efficiency, and reliable durability for demanding aerial maneuvers.
KV
Choose Quantity
Product Details
Features :
- Precision bearing design ensuring smooth operation and extended lifespan under high RPMs.
- Robust steel shaft providing exceptional structural integrity against crashes and impacts.
- Vibrant anodized finish offering corrosion resistance and a sleek aesthetic.
- Standard 16x16mm mounting hole pattern compatible with standard drone frames.
- Multi-strand winding configuration improving electrical efficiency and thermal performance.
Technical Details :
- Motor Size: 2306
- Available KV Options: 1700KV, 1900KV, 2400KV
- Framework: 12N14P
- Motor Diameter: 28mm
- Motor Length: 31.5mm
- Input Voltage: 3-6S LiPo (dependent on KV selection)
- Wire Specification: 120mm 20 AWG silicone wire
Additional Details:
Manufacturer: EMAX
Brand: EMAX
Generic Name: Brushless FPV Drone Motor
Sold By: UAV Marketplace
Ideal For: 5-inch FPV racing drones, freestyle quadcopters, and acrobatic UAV builds
Package Details:

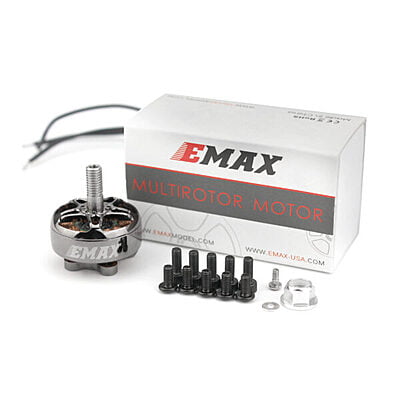

1x EMAX ECO II Series 2306 Brushless Motor, 1x Mounting Hardware Pack
FAQs:
Q1) What KV options are available for the EMAX ECO II 2306 motor?
Ans: It is available in 1700KV, 1900KV, and 2400KV variants to suit different battery setups.
Q2) What frame mounting hole pattern does this motor use?
Ans: It utilizes a standard 16x16mm mounting hole pattern.
Q3) What size propellers are recommended for this motor series?
Ans: It is optimized for 5-inch to 5.5-inch propellers commonly used on racing and freestyle quads.
Q4) What is the stator size and framework of the motor?
Ans: It features a 2306 stator size with a 12N14P framework configuration.
Q5) What gauge of silicone wire is attached to the motor?
Ans: It comes equipped with 120mm of 20 AWG silicone wire for reliable power connection.
