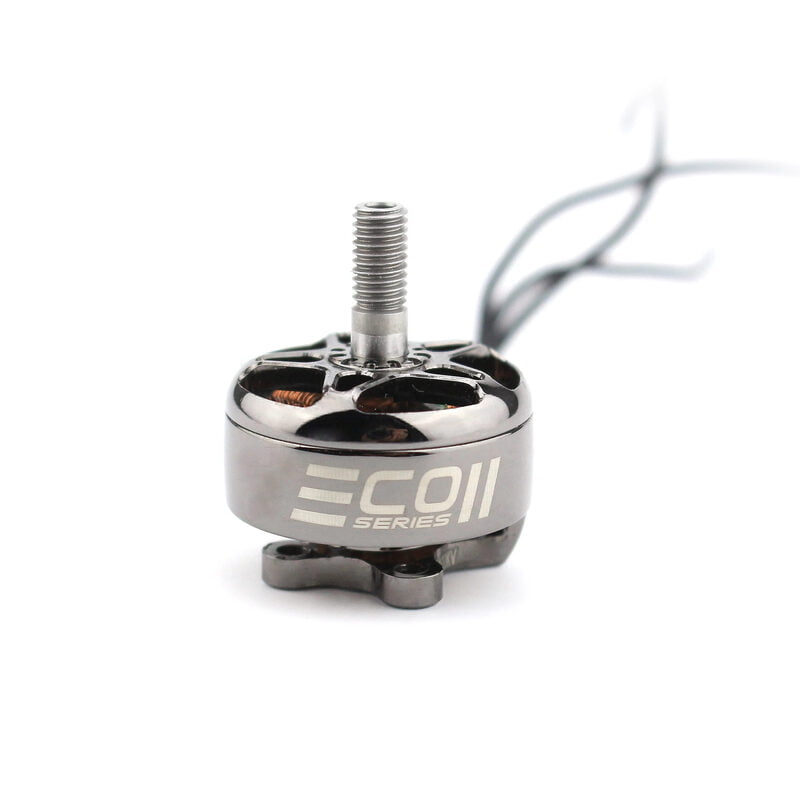

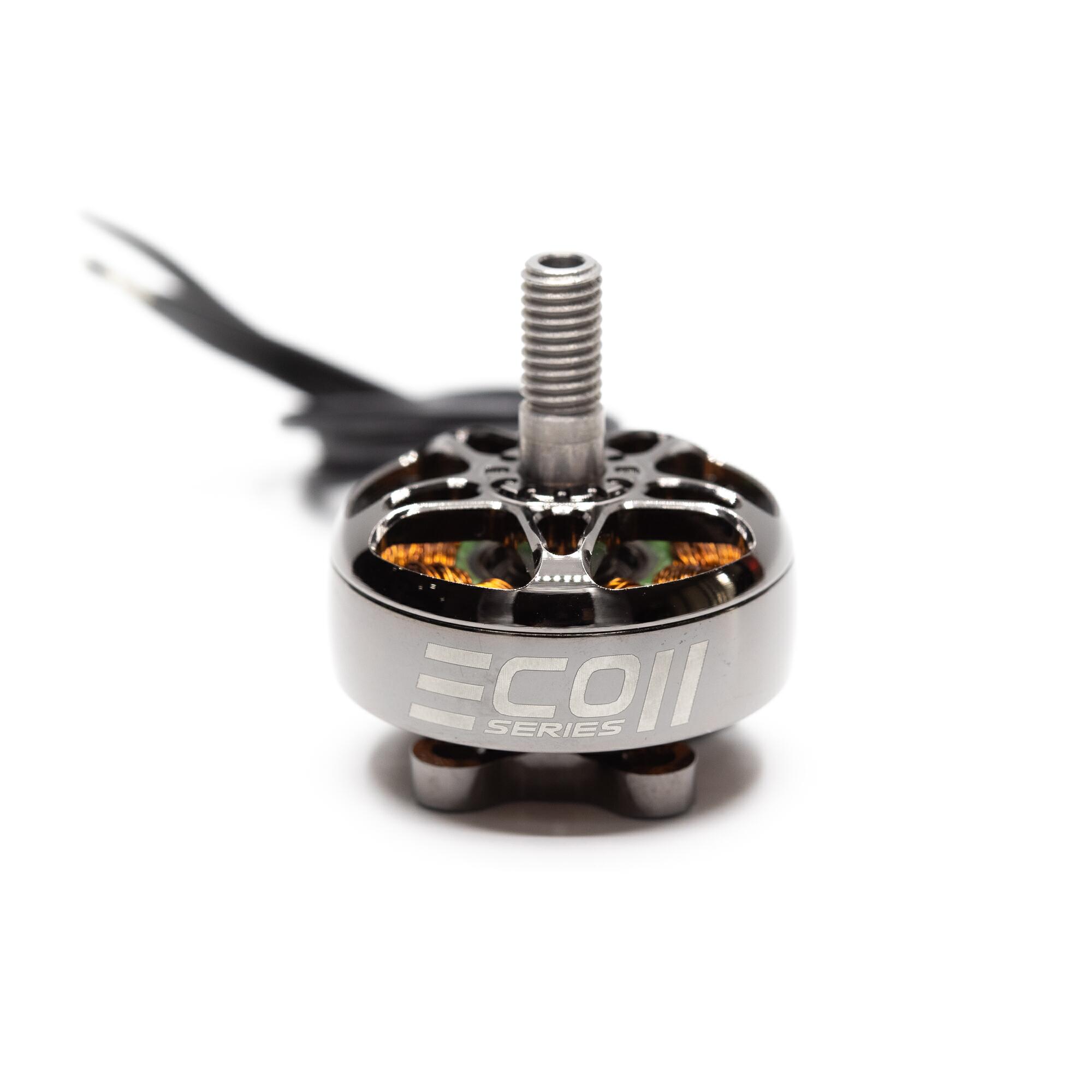

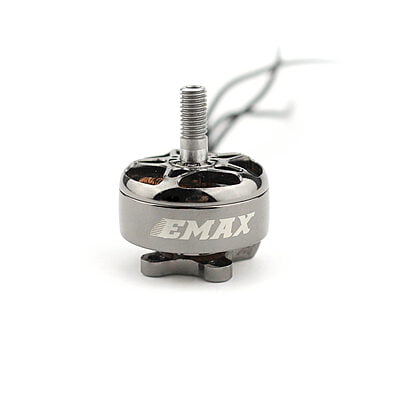

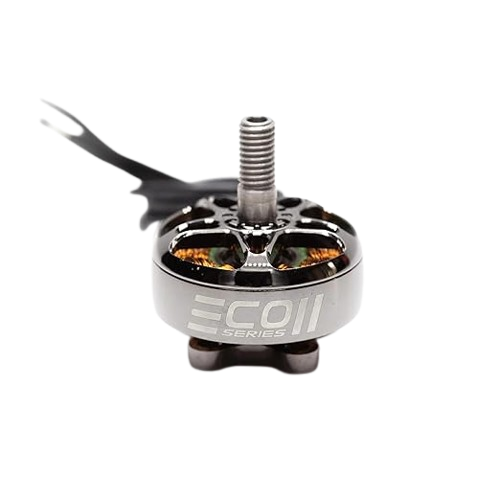

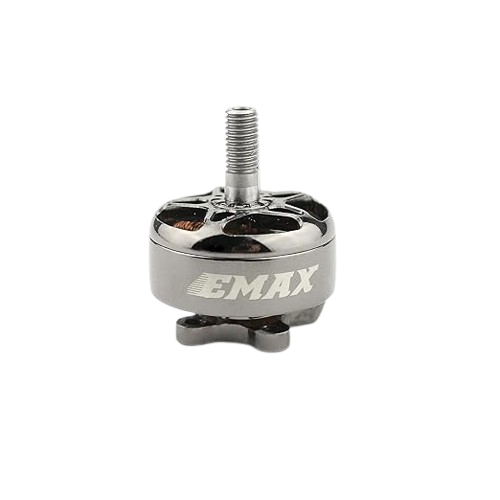

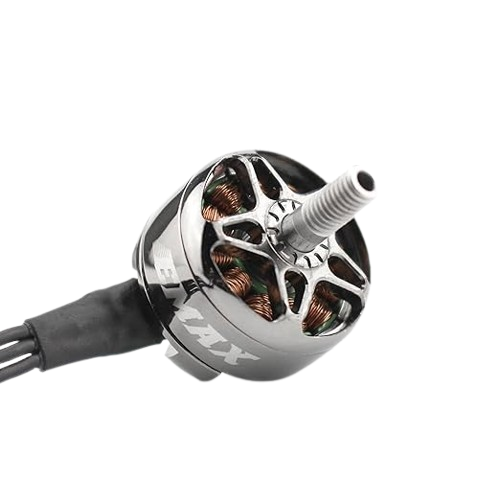

EMAX ECO II Series 2207 Brushless Motor
₹1,439.00 - ₹1,699.00

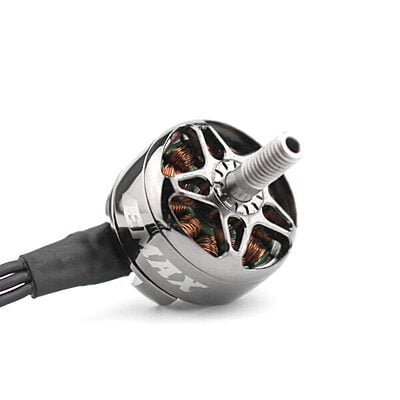

The EMAX ECO II Series 2207 Brushless Motor is a FPV drone motor designed for 5-inch racing and freestyle drones. Featuring precision bearings, a steel shaft, and N52SH curved arc magnets, it provides responsive power and reliable operation for demanding FPV flight.
KV
Choose Quantity
Product Details
Features :
- Precision bearing design supporting smooth motor operation during high-RPM FPV flights.
- Steel shaft construction providing reliable structural support for drone motor use.
- Anodized mirror-polished finish providing corrosion resistance and a refined appearance.
- Standard 16x16mm mounting pattern compatible with standard 5-inch FPV drone frames.
- Multi-strand winding configuration supporting electrical efficiency and thermal performance.
Technical Details:
- Motor Type: Brushless Outrunner DC Motor
- Model: ECO II Series 2207
- KV Options: 1700KV, 1900KV, 2400KV
- No. of Cells (LiPo): 1700KV: 4-6S, 1900KV: 4-5S, 2400KV: 4S
- Framework: 12N14P
- Maximum Thrust: 2020 g(on 6s)
- Motor Dimensions (approx.): 27.5 x 33.1mm
- Shaft Diameter: 5mm (hollow)
- Weight (approx.): 33.6g (without silicone wire)
- Shaft Material: High-strength steel
- Bearing Size: 9x4x4mm
- Wire Gauge: 20AWG
- Wire Length: 120mm
Additional Detail:
- Manufacturer: EMAX
- Brand: EMAX
- Generic Name: FPV Motor || Drone Motor || Brushless Outrunner Motor || Racing Drone Motor || Freestyle Motor || RC Motor || Electric Motor || 2207 Motor || Quadcopter Motor || FPV Racing Motor
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: 5-inch FPV Freestyle Drones, 5-inch FPV Racing Drones, 6-inch Propeller Drones, High-Performance FPV Builds, DIY FPV Drones, Long-Range FPV Drones, Aggressive FPV Flying, Competitive FPV Racing, High-Thrust Drone Builds, FPV Practice Drones
Package Details:

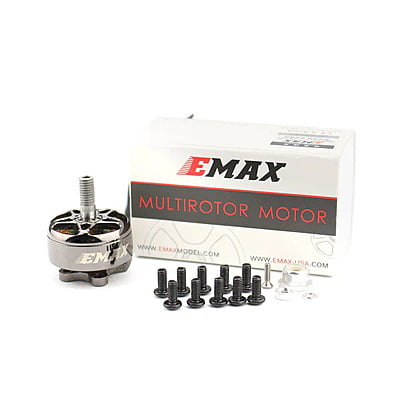

- Includes: 1 x EMAX ECO II Series 2207 Brushless Motor (with selected KV), 5* МЗ*8 Ѕсrеw, 5* M3*7 Screw, 5* МЗ*6 Ѕсrеw, 1* Aluminum M5 nylock nut, 1* Washer and Screw for shaft
FAQs:
Q1) What KV options are available for the EMAX ECO II 2207 motor?
Ans: The EMAX ECO II 2207 is available in 1700KV, 1900KV, and 2400KV variants for different FPV drone setups.
Q2) What frame mounting hole pattern does this brushless motor use?
Ans: The EMAX ECO II 2207 uses a 16x16mm mounting hole pattern for compatible FPV drone frames.
Q3) What propeller sizes are recommended for this EMAX drone motor?
Ans: The motor is optimized for 5-inch to 5.5-inch propellers used on racing and freestyle FPV quadcopters.
Q4) What battery voltage does the EMAX ECO II 2207 support?
Ans: It supports 3S to 6S LiPo battery configurations depending on the selected 1700KV, 1900KV, or 2400KV variant.
Q5) Does the EMAX ECO II 2207 use N52SH arc magnets?
Ans: Yes, it uses N52SH curved arc magnets in the motor rotor design for the specified motor construction.
ECOII 2207 1700KV
ECOII 2207 1900KV

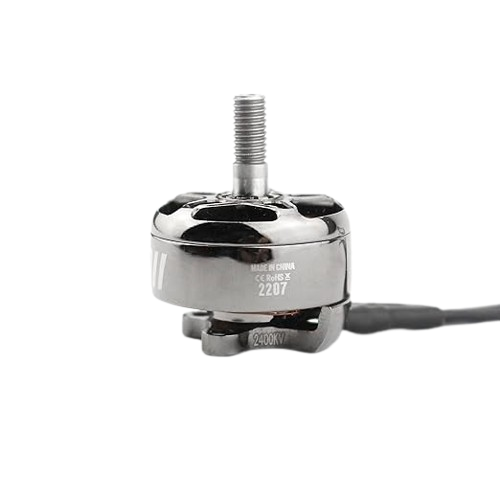

ECOII 2207 2400KV
