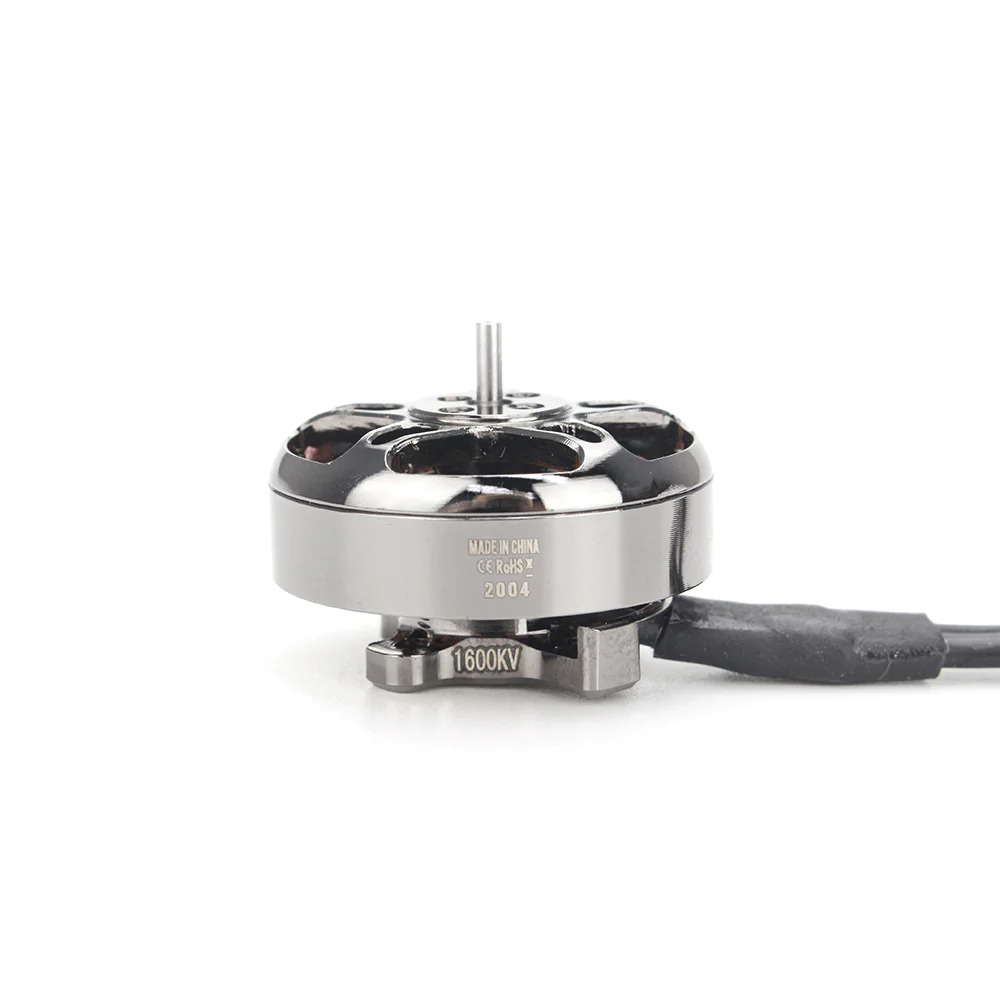

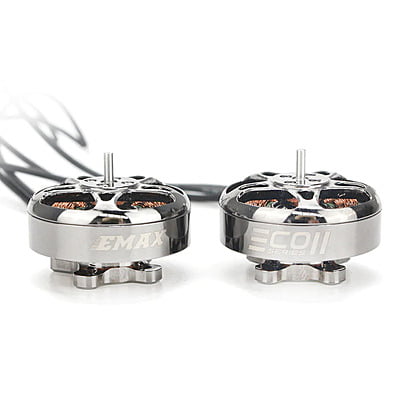

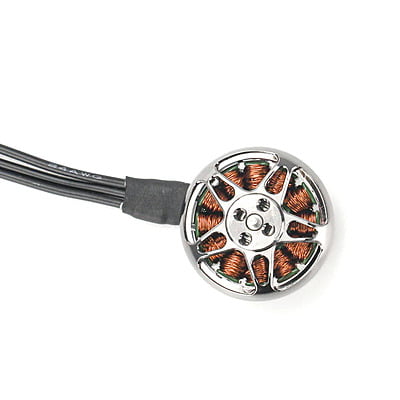

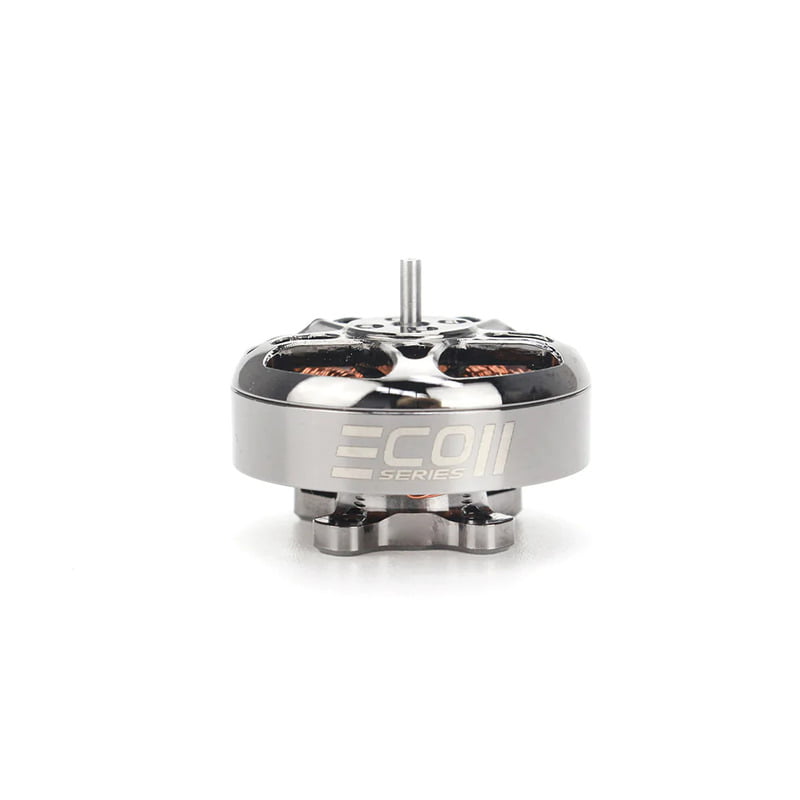

EMAX ECO II Series 2004 Brushless Motor

Features

• NSK Precision Bearing for smooth and reliable motor operation
• AL 7075 Base Casing for the specified motor construction
• N52SH Arc Magnets used in the motor rotor assembly
• Steel Shaft for the motor’s rotating shaft assembly
• Anodized Construction for the specified motor surface finish
• 12 × 12mm Hole Pattern for compatible FPV drone frame mounting
• Multi-Strand Winding used in the motor winding construction
• 120mm 24 AWG Silicone Wire for the motor electrical connection

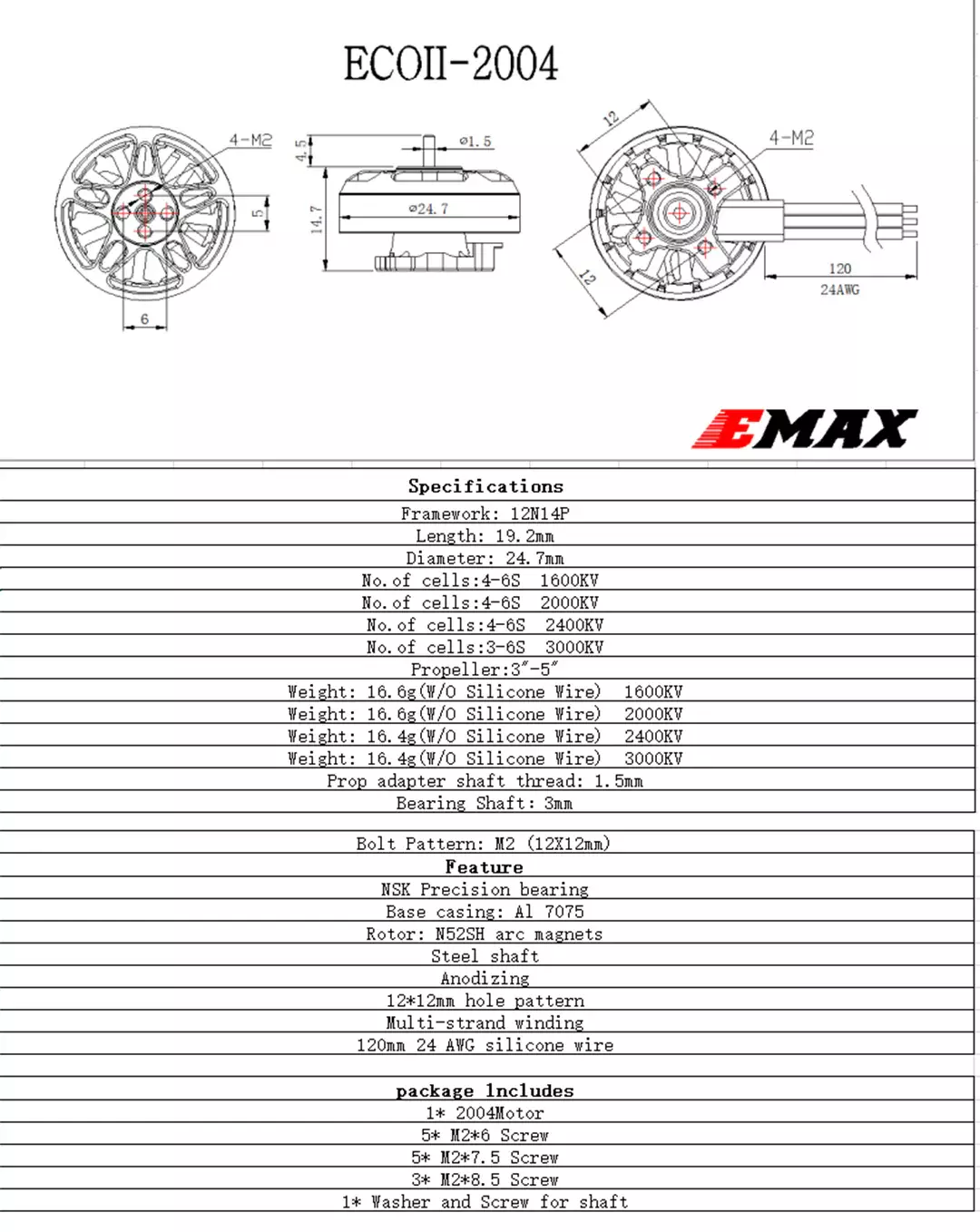

Technical Specifications:

• Framework : 12N14P
• Propeller Size : 3"–5"

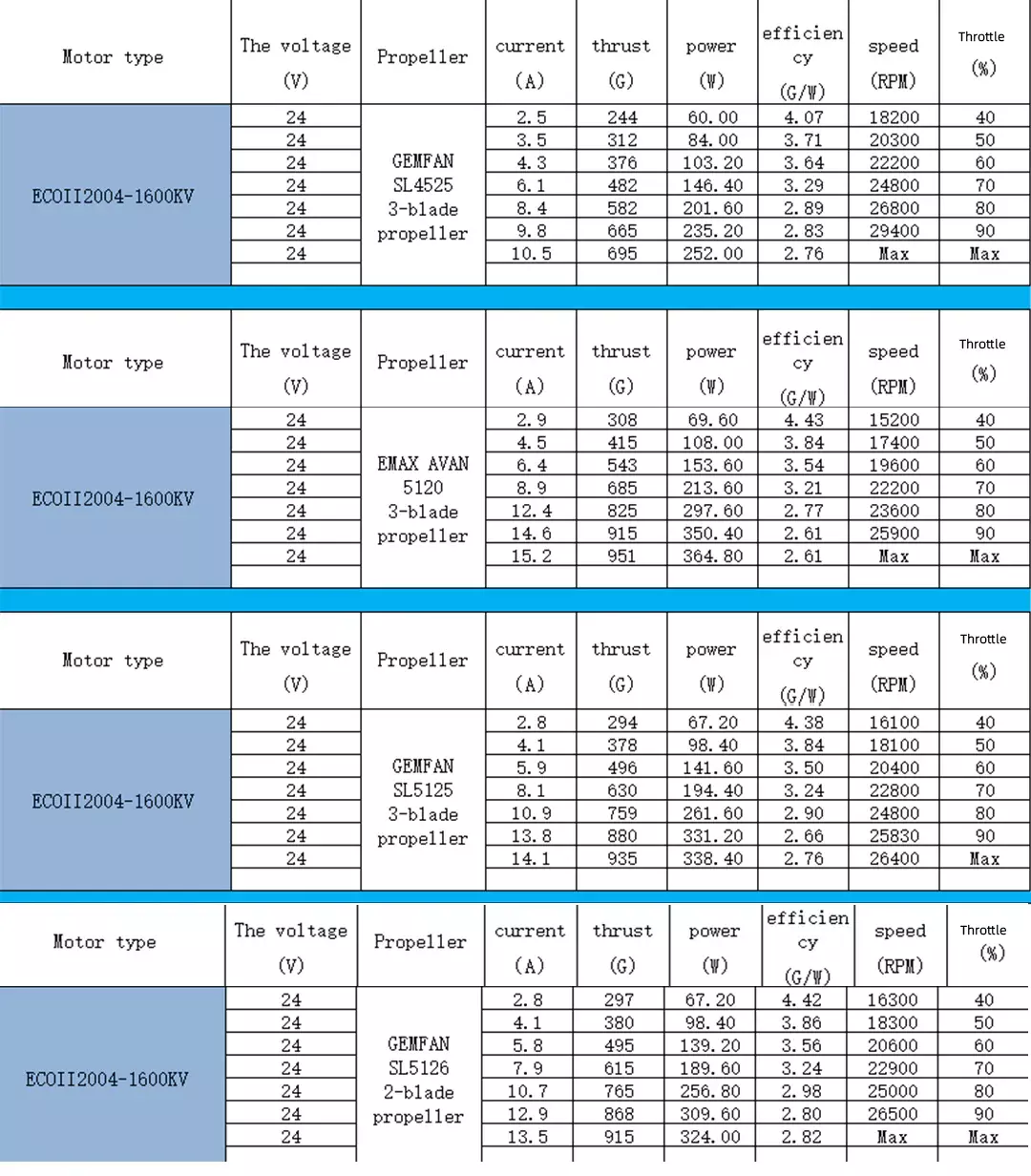

• Weight : 16.6g (without silicone wire) – 1600KV

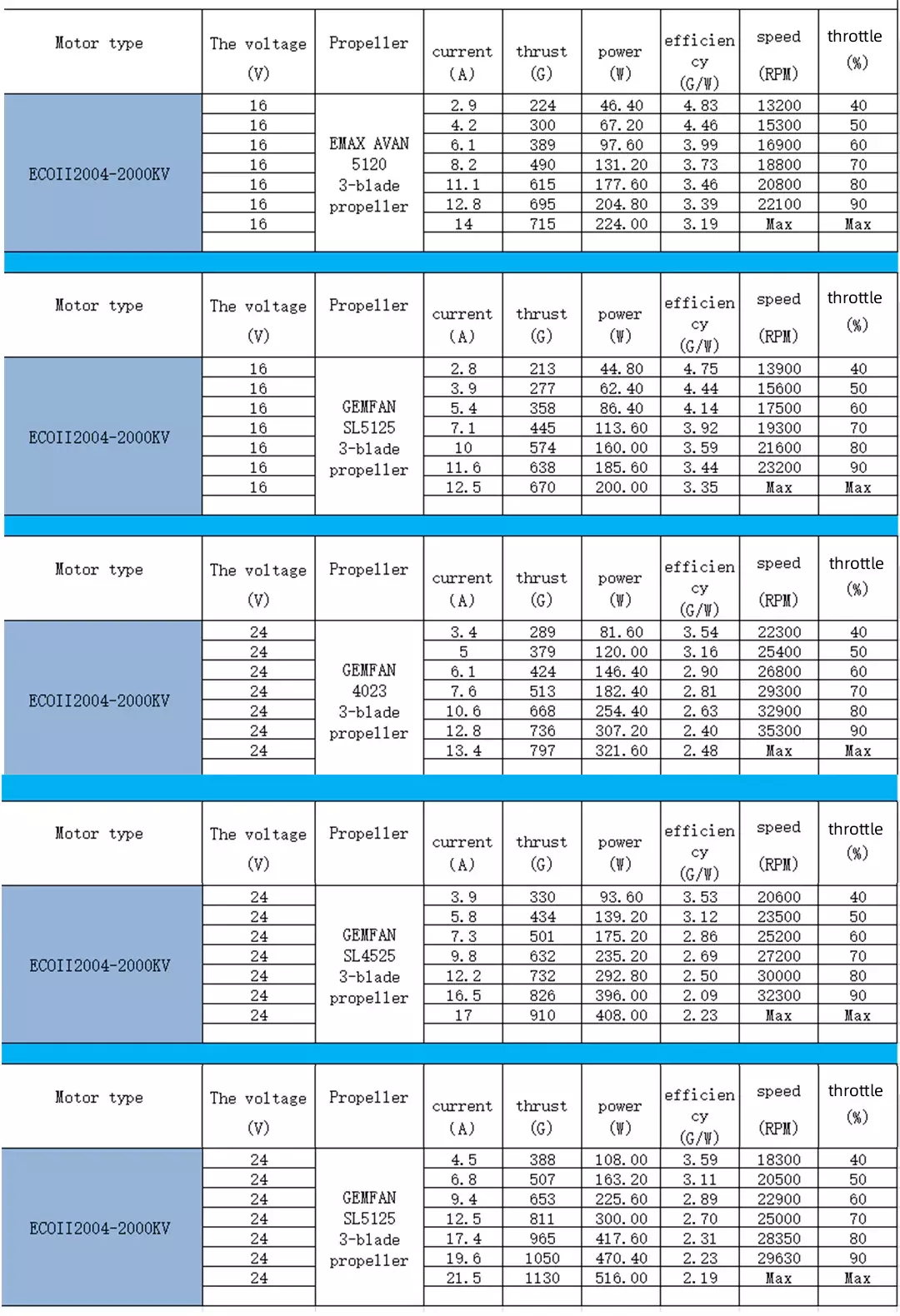

• Weight : 16.6g (without silicone wire) – 2000KV

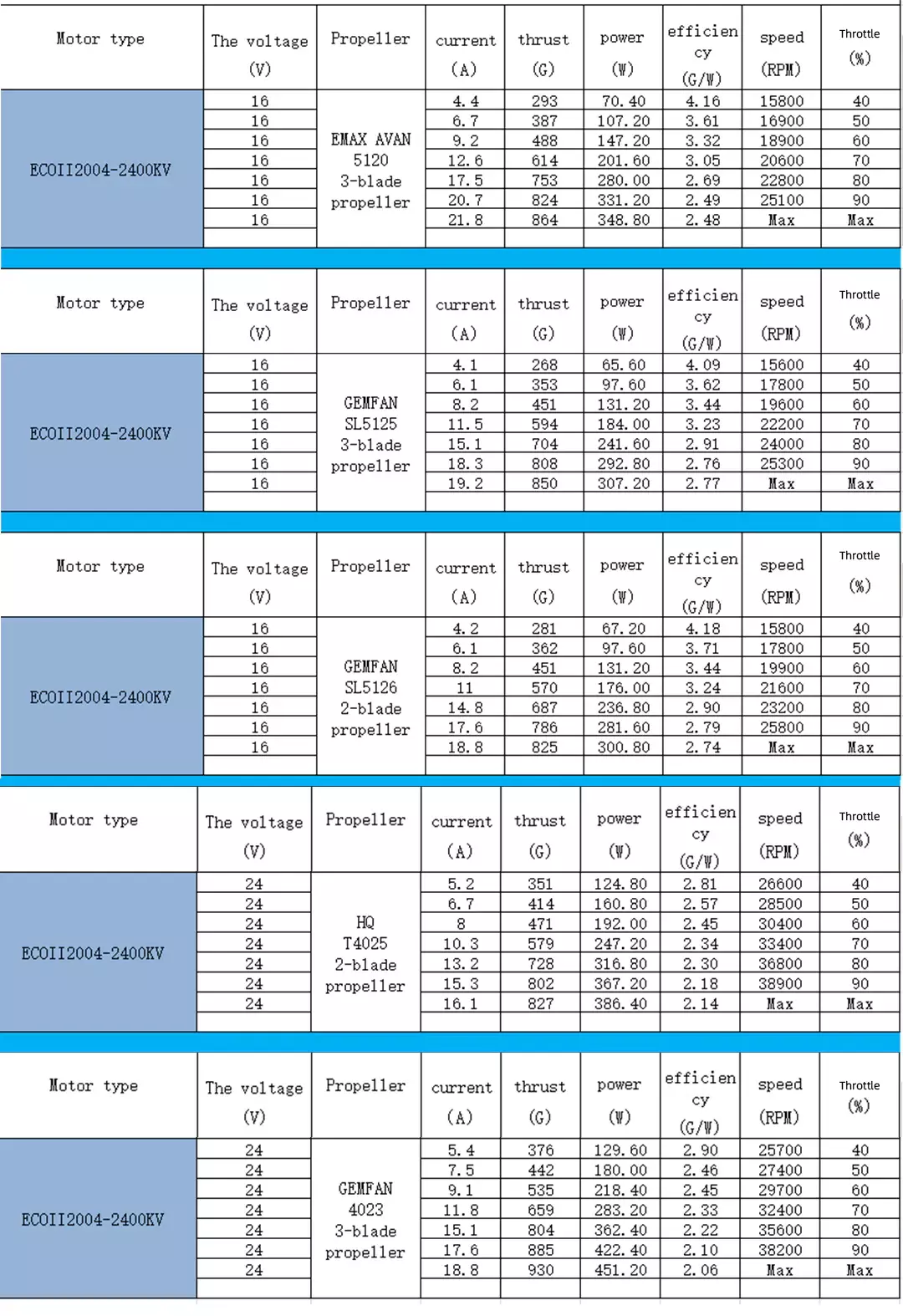

• Weight : 16.4g (without silicone wire) – 2400KV
• Prop Adapter Shaft Thread : 1.5mm
• Bearing Shaft Diameter : 3mm
• Bolt Pattern : M2 (12 × 12mm)
• Mounting Hole Pattern : 12 × 12mmLength : 19.2mm
• Diameter : 24.7mm
• Battery Cell Compatibility : 4–6S for 1600KV
• Battery Cell Compatibility : 4–6S for 2000KV
• Battery Cell Compatibility : 4–6S for 2400KV

Additional Details:

• Manufacturer: EMAX

• Brand: EMAX

• Generic Name: Brushless Motor, Drone Motor, RC Motor

• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)

• Ideal For: FPV drone builders, freestyle pilots, long-range flyers, and hobbyists building 3-inch to 5-inch quads.

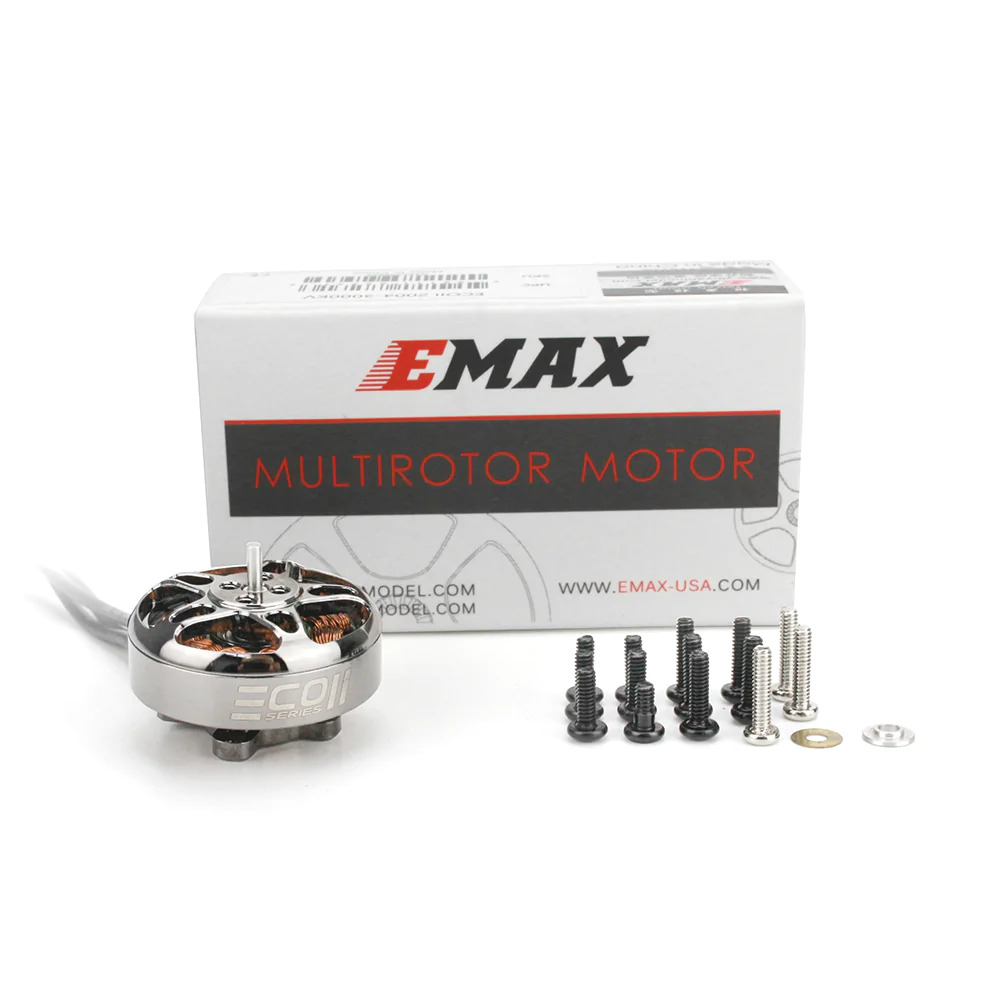

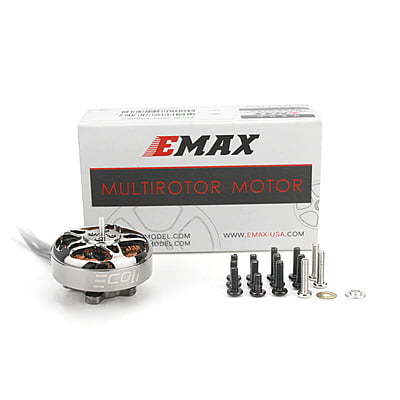

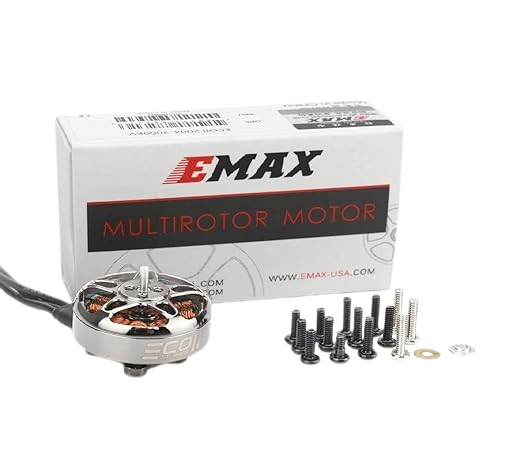

Package Details:

Includes:

• 1 x 2004 Motor

• 5 x M2*6 Screws

• 5 x M2*7.5 Screws

• 3 x M2*8.5 Screws

• 1 x Washer and Screw for shaft


Frequently Asked Questions:

Q1) What KV options are available for the EMAX ECO II 2004 motor?

Ans: The EMAX ECO II 2004 is available in 1600KV, 2000KV and 2400KV variants.

Q2) What propeller size is compatible with the EMAX ECO II 2004 motor?

Ans: The specified propeller size is 3"–5".

Q3) What is the stator framework configuration of the motor?

Ans: The motor features a 2004 size with a 12N14P framework configuration.

Q4) What battery cell range does the EMAX ECO II 2004 support?

Ans: The 1600KV, 2000KV, and 2400KV versions support 4–6S battery configurations.

Q5) What are the mounting specifications of the EMAX ECO II 2004?

Ans: It uses an M2 bolt pattern with a 12 × 12mm mounting hole pattern.
