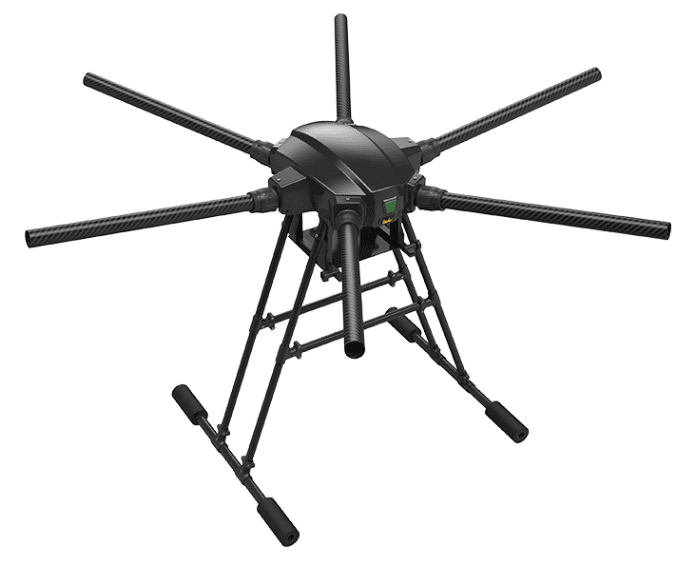

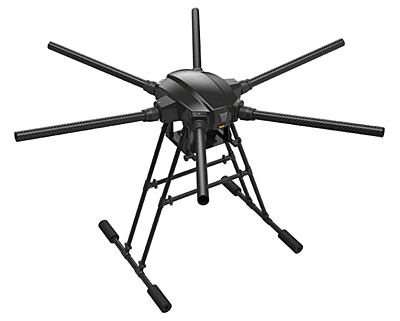

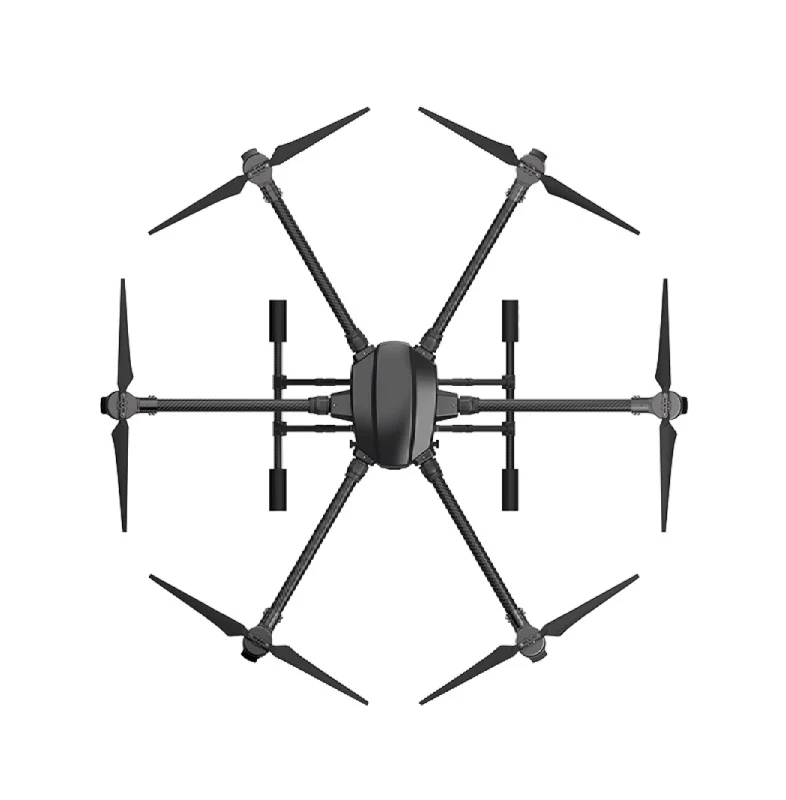

EFT X6120 Multifunction Surveillance Drone Frame
- Model: EFT X6120 Multifunction Surveillance Drone Frame
- Simplified structure and easy assembly with a nylon + carbon fiber frame.
- Separate Arm Disassembly.

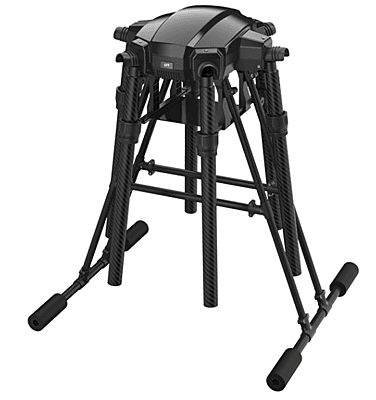

- Umbrella Folding Design.
- Built-In GPS.
- Full Waterproof IP65 protection Body.
- Quick Release Battery Track.
Description:
The EFT X6120 Multifunction Surveillance Drone Frame offers a modular design for easy assembly, featuring a durable nylon + carbon fiber frame. With separate arm disassembly and an umbrella folding design, it ensures convenience and reduced maintenance costs. The quick-release battery track facilitates tool-free battery replacement, while the IP65 waterproof design enables rain-resistant flight. The scalable mounting platform accommodates various equipment, and built-in GPS enhances navigation. Integrated power and distribution boards, along with an expandable interface, contribute to efficient operation and flexibility.
Item type | Frame |
Model type | Drone frame |
Model | Eft x6120 multifunction surveillance drone frame |
Wheelbase (mm) | 1290 |
Recommended blade (inch) | 24 |
Recommended battery (ah) | 16-22 |
Shipping weight | 4.508 kg |
Shipping dimensions | 56 × 45 × 31 cm |
Features:
- Modular Integrated Fuselage: Simplified structure and easy assembly with a nylon + carbon fiber frame.
- Separate Arm Disassembly: Reduces maintenance costs with ingeniously designed breakpoints for the 30mm diameter carbon tube arms.

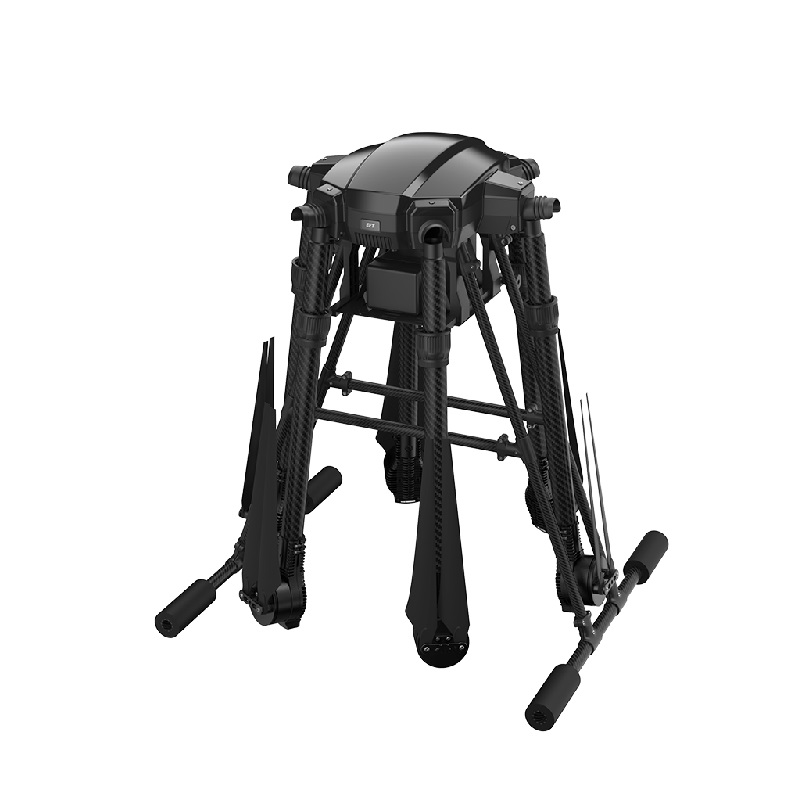

- Umbrella Folding Design: The classic folding method minimizes size after folding for convenient storage.
- Quick Release Battery Track: Tool-free battery replacement with spring positioning knob for quick and convenient changes.
- Full Waterproof Body: IP65 protection grade ensures normal flight even in rainy conditions.
- Scalable Mounting Platform: Adaptable for various equipment, such as PTZ, pod, megaphone, and throwing device.
- Built-In GPS: Enhances navigation and positioning capabilities for precise operations.
Power Board & Distribution Board: Integrated boards for efficient power management. - Expandable Interface: Allows for the integration of additional modules and accessories.
- Rack weight: 3.18kg
- Empty weight: 7.5kg
- Full load weight: 18kg
- Effective load: 4-6kg
- Recommended motor: X6 Plus
- Recommended ESC: 60A ESC
Package Includes:
1 x EFT X6120 Multifunction Surveillance Drone Frame
