EFT Horizontal Spraying System

Features:

• Wide horizontal spray boom for extensive coverage.




• Multiple nozzles ensure uniform liquid distribution.




• Includes a high-efficiency brushless water pump.




• Designed to fit seamlessly on EFT drone frames.




• Durable, chemical-resistant components.




• Optimized for various liquid agricultural products.




• Minimizes waste and improves application accuracy.




• Easy to assemble and maintain.




• An essential upgrade for professional farming.




• Original EFT spare or upgrade part.

Technical Specifications:

• Model: EFT Horizontal Spraying System

• System Type: Horizontal spray boom assembly

• Pump Type: Brushless diaphragm pump

• Working Voltage: 12–14S (44–60.9 V DC)

• Pump Flow Rate: 5–8 L/min

• Number of Nozzles: 4–6 nozzles

• Spray Width: 3–5 meters

• Material: High-strength plastic, metal fittings, and chemical-resistant tubing

• Compatibility: EFT G series, E series, and other compatible agricultural drone frames

• Total Weight: 1–2 kg (without liquid)

Additional Details:

• Manufacturer: EFT

• Brand: EFT

• Generic Name: Drone Spray System || Agricultural Sprayer || UAV Spray Kit || Crop Sprayer || Drone Attachment || Liquid Application System || Horizontal Boom || Drone Equipment || UAV Farming Tool || Spraying System

• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)

• Ideal For: Agricultural Drones || Crop Spraying || Precision Farming || Liquid Fertilizer Application || Pesticide Spraying || Professional Drone Fleet Operators || Drone Builders || UAV Upgrades || Autonomous Flight Systems || Large-Scale Farming

Package Details:

• Includes:

  • 1x Horizontal Spray Boom with Nozzle Holders

  • 1x Brushless Water Pump

  • 1x Set of Spray Nozzles

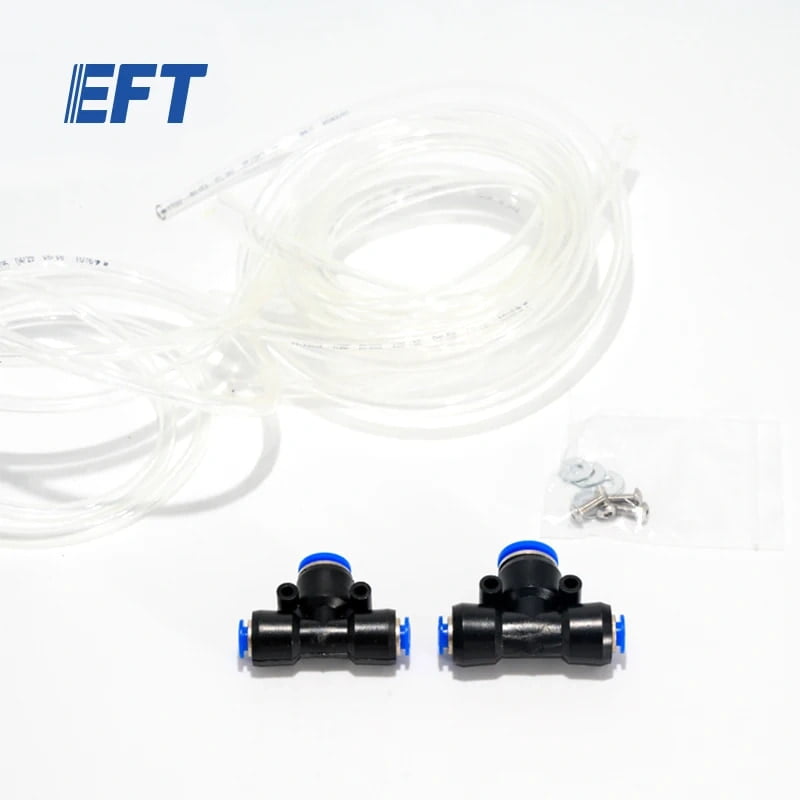

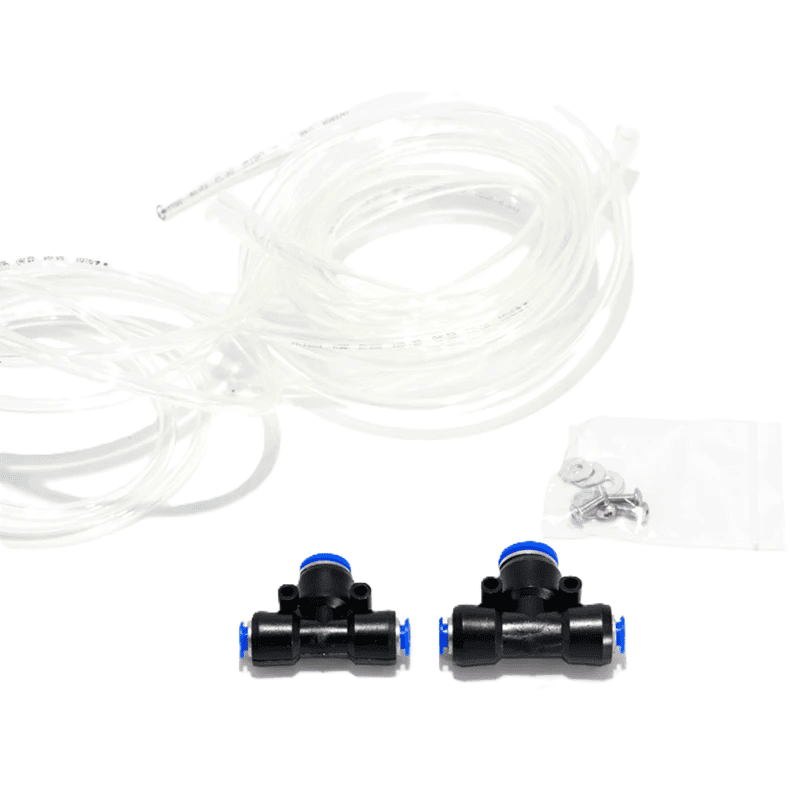

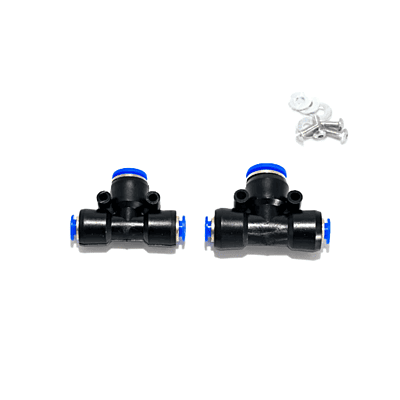

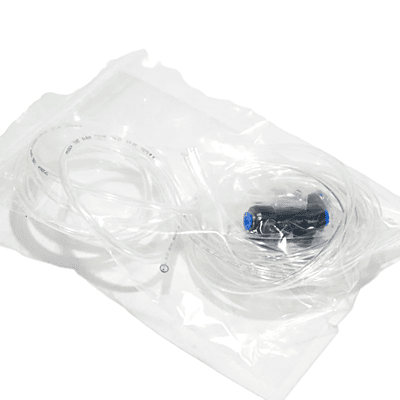

  • 1x Set of Tubing and Fittings

  • 1x Universal Mounting Brackets

Frequently Asked Questions:

Q1. What is the main advantage of a horizontal spraying system?

Ans. A horizontal spraying system, or spray boom, provides a wide and consistent spray pattern, which is crucial for achieving uniform coverage over crops. This method is highly efficient for large fields, as it reduces the number of flight passes required, saving both time and battery life.

Q2. Is this system a plug-and-play solution?

Ans. This kit includes all the necessary components, but it requires assembly and integration with the drone's frame and flight controller. It is not a single, pre-assembled unit. Users will need to mount the pump, attach the boom, and connect the wiring and tubing to the drone's power system and flight controller for flow rate management.

Q3. What kind of maintenance does this spraying system require?

Ans. Regular maintenance is important to ensure optimal performance. This includes flushing the system with clean water after each use to prevent chemical buildup and clogging, and regularly checking the nozzles and tubing for any blockages or leaks. Replacing worn-out nozzles is also recommended to maintain a consistent spray pattern.
