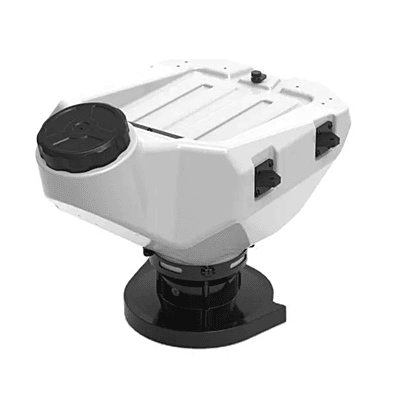

EFT EPS200 Seeder with 10L tank

Features:

• Large 10-liter tank capacity.




• High-efficiency centrifugal spreading mechanism.




• Adjustable flow rate for precise control.




• Durable, lightweight plastic construction.




• Quick and easy installation on compatible drones.




• Ideal for seeds, granular fertilizer, and solid materials.




• Wide spreading width for efficient coverage.




• Designed for automated and precise distribution.




• Integrated into the drone's flight control system.




• Reliable and consistent performance.

Technical Specifications:

• Model: EFT EPS200 Spreading System

• Tank Capacity: 10 Liters

• Spreading Method: Centrifugal Spreader

• Compatible Materials: Seeds, granular fertilizers, granular pesticides, etc.

• Spreader Width: 12 m

• Support Particle Diameter: 0.5–6 mm (Dry particle)

• Maximum Warehouse Area: 43 cm

• Valve Angle: 0–60°

• Speed Control Signal: 1000us–2000us

• Power Supply: 24V–80V (12–14S via the drone's power system)

• Maximum Power: 180W

• Motor: Brushless motor for the spreading mechanism

• Material: High-strength plastic

• Dimensions: 300 × 250 × 145 mm

• Weight: 1.98 kg (approx. 2–3 kg with tank)

• Protection Level: IP67

Additional Details:

• Manufacturer: EFT

• Brand: EFT

• Generic Name: Drone Seeder || Agricultural Spreader || UAV Spreader System || Drone Attachment || Granular Spreader || Seeding System || Drone Equipment || UAV Farming Tool || Drone Payload || Agricultural Drone Accessory

• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)

• Ideal For: Agricultural Drones || Crop Seeding || Fertilizer Application || Granular Pesticide Spreading || Precision Farming || Large-Scale Farming || Autonomous Agriculture || Landscaping || Drone Payload Delivery || Drone Retrofitting

Package Details:

• Includes:

  • 1x EFT EPS200 Spreading System

  • 1x 10L Tank

Frequently Asked Questions:

Q1. What drone models is the EFT EPS200 Seeder compatible with?

Ans. This seeder is designed to be compatible with a wide range of EFT agricultural drone frames, particularly the G and E series, but it can also be adapted to other large industrial drones. Its universal mounting system allows it to be securely attached and powered by the drone's existing components.

Q2. Can this seeder be used for both seeds and granular fertilizer?

Ans. Yes, the EFT EPS200 is a versatile spreading system suitable for a variety of granular materials. It is commonly used for both seeds and granular fertilizers, as well as other solid particles like granular pesticides. The adjustable flow rate allows for precise control of the material output, which is crucial for different applications.

Q3. How is the flow rate of the seeder controlled?

Ans. The flow rate is controlled electronically via the drone's flight controller and ground station. The spreading unit's brushless motor speed can be precisely adjusted by the pilot using the remote controller, allowing for on-the-fly calibration of the spreading amount to match the needs of the specific crop or terrain being covered.
