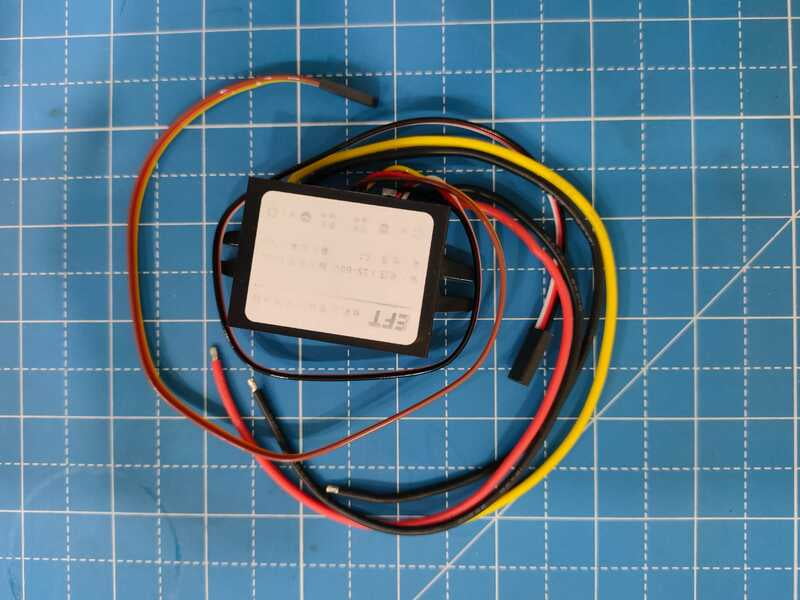

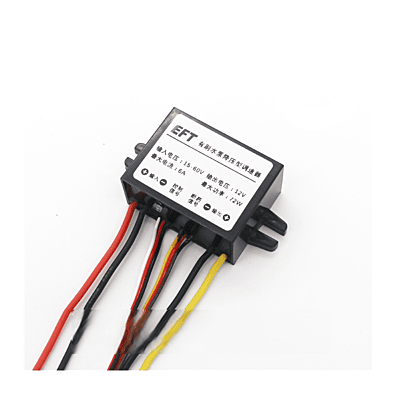

EFT 12S Brush ESC

Features :

• Supports wide 6S to 12S LiPo battery input.

• Designed for high-current, heavy-duty applications.

• Optimized for large agricultural and industrial drones.

• Efficient heat dissipation for extended operation.

• Precise throttle linearity for smooth control.

• Multiple protection features ensure system safety.

• High compatibility with various flight controllers

• Robust and durable construction for reliability.

• Essential for professional, long-endurance UAVs.

• Simple installation and setup process.

Technical Specifications :

• Continuous Current: (e.g., 80A, 100A, 120A - User needs to provide specific amperage)

• Peak Current: (e.g., 100A, 120A, 150A for 10 seconds - User needs to provide specific amperage)

• Input Voltage: 6-12S LiPo (22.2V - 50.4V)

• BEC Output: No BEC (OPTO) - Requires a separate BEC for powering flight controller/receiver.

• Firmware: Often proprietary or optimized for large agricultural drones; may be based on specific protocols like PWM, OneShot, or customized.

• Processor: Typically a robust MCU for industrial applications

• Throttle Signal Rate: Commonly standard PWM range

• Dimensions: Varies significantly by amperage, e.g., 80x40x15mm for 80A

• Weight: Varies significantly by amperage, e.g., 80-120g

• Input Wires: Heavy-gauge silicone wire (e.g., 10AWG or 8AWG)

• Output Wires: Heavy-gauge silicone wire (e.g., 12AWG or 10AWG)

• Capacitors: Often includes large external or internal capacitors for voltage stability.

• Protection Features: Over-current, Over-temperature, Low-voltage cutoff, Throttle signal loss.

Additional Details:

• Manufacturer: EFT (Easton Flying Technology)

• Brand: EFT

• Generic Name: Brush Electronic Speed Controller || High Voltage ESC || Agricultural Drone ESC || Industrial Drone ESC || 12S ESC || Drone Motor Controller || Heavy Duty ESC || UAV Power System || Large Drone ESC || OPTO ESC

• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)

• Ideal For: Agricultural Spraying Drones || Industrial Inspection Drones || Logistics & Delivery UAVs || Heavy-Lift Drones || Professional Mapping Drones || Long-Endurance UAVs || Custom Large Drone Builds || Surveillance Drones || Search & Rescue UAVs || Robotics Platforms


Package Details:

Includes:

• 1x EFT 12S High Voltage Brush ESC (specific amperage)

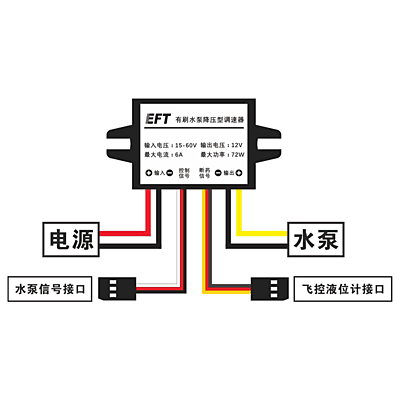

• 1x User Manual / Wiring Diagram

Frequently Asked Questions:

Q1. What is the primary benefit of a 12S ESC like this for drone applications?

Ans. A 12S ESC (Electronic Speed Controller) is designed to handle high-voltage 12-cell LiPo battery systems. This is crucial for larger agricultural and industrial drones as higher voltage allows for lower current draw for the same power, leading to increased efficiency, reduced heat generation, and the ability to use smaller diameter wires, which is beneficial for heavy-lift and long-endurance operations.

Q2. Does the EFT 12S ESC require a separate BEC to power other drone components?

Ans. Yes, the EFT 12S ESC is typically an "OPTO" type ESC, meaning it does not have a built-in Battery Eliminator Circuit (BEC). You will need to use a separate, dedicated high-voltage BEC or ensure your flight controller can provide regulated 5V or 12V power to operate the flight controller, receiver, and other low-voltage electronics.

Q3. Is this ESC suitable for continuous heavy-duty operation in harsh environments?

Ans. Yes, the EFT 12S Brushless ESC is specifically designed for the demanding conditions of agricultural and industrial drone applications. It features robust construction, efficient heat dissipation, and comprehensive protection mechanisms (like over-current and over-temperature protection) to ensure reliable and stable performance during prolonged heavy-duty operations in various environmental conditions.
