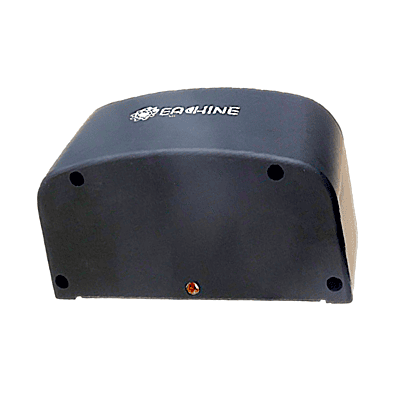

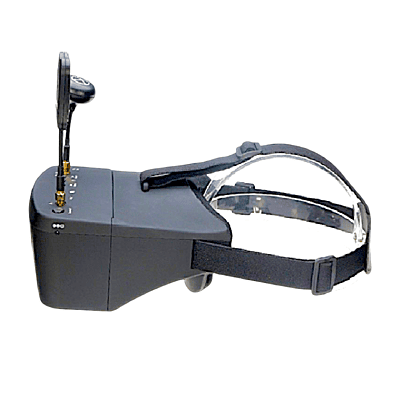

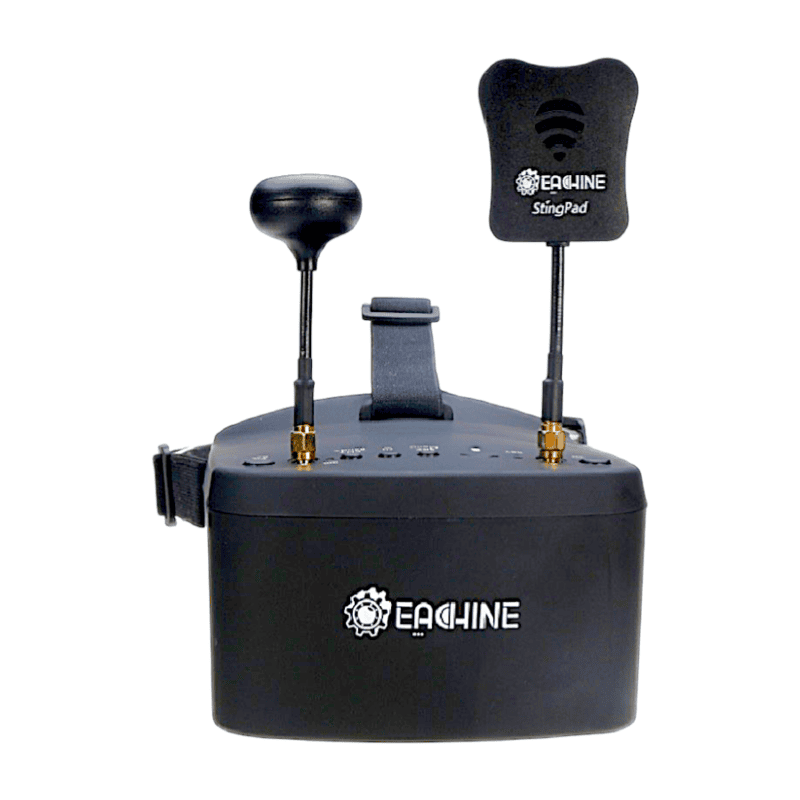

Eachine EV800D 5.8G 40CH Diversity FPV Goggles
₹15,579.00 ₹18,999.00
The Eachine EV800D is a high-performance 5.8GHz 40CH diversity FPV headset featuring a crisp 5-inch 800x480 HD screen and a built-in Super HD DVR. Designed with dual receivers and auto-searching technology, it delivers stable video transmission, zero-latency display, and convenient modular separation for use as a standalone ground monitor.
Choose Quantity
Product Details
Features :
- Built-in 5.8GHz 40-channel diversity receiver with advanced auto-searching capability.
- Integrated Super HD DVR supporting frame-accurate video recording up to 720x576px.

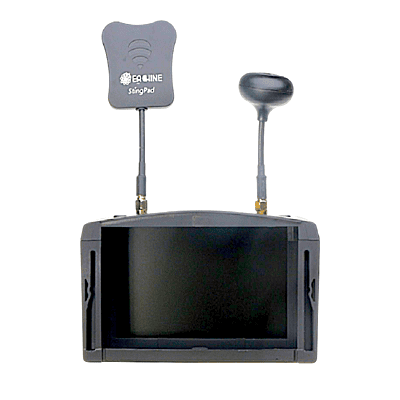

- High-brightness 5-inch 800x480 LCD screen specially tuned for outdoor FPV racing.
- Separable design allowing the display screen to be detached and used as a monitor.
- Dual-core separated chipsets ensuring zero delay in video display and no dropped frames in recording.
Technical Details :
- Screen Size & Resolution: 5.0 Inch | 800 x 480 Pixels
- Receiver Type: Built-in 5.8GHz 40CH Diversity Module
- Viewing Angle & Lens: 140/120 Degrees (Horizontal/Vertical) with 92% Transparent Lens
- Battery Configuration: Built-in 7.4V/1200mAh (Supports 2S/3S External Backup)
- Dimensions & Weight: 180 x 145 x 82 mm | 362g (Without Antenna)
Additional Details:
Manufacturer: Eachine
Brand: Eachine
Generic Name: FPV Racing Goggles with DVR
Sold By: UAV Marketplace
Ideal For: FPV drone racing, freestyle flying, aerial photography, and monitoring setups
Package Details:

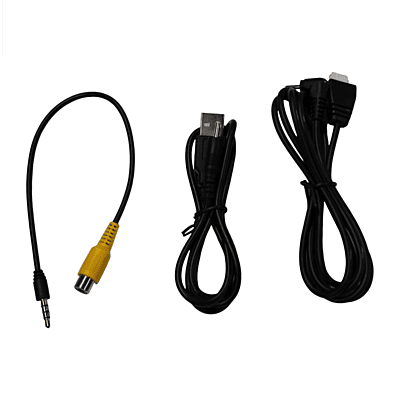

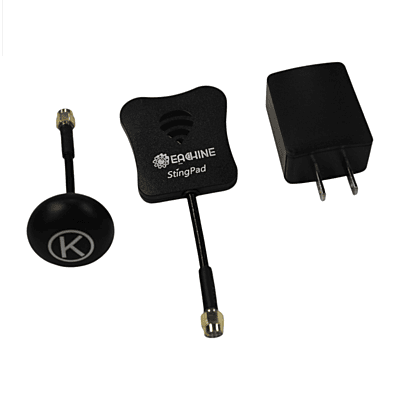

1x Eachine EV800D FPV Goggles, 1x Cloverleaf Antenna, 1x Panel Antenna, 1x USB Charger Cable, 1x DC Power Cable, 1x AV IN Cable, 1x User Manual
FAQs:
Q1) Does the Eachine EV800D have a built-in DVR for recording flights?
Ans : Yes, it features a built-in Super HD DVR that records smooth video directly to a micro SD card.
Q2) Can the screen be detached from the headset?
Ans : Yes, it features a separable design allowing the 5-inch screen to be used independently as a portable monitor.
Q3) What kind of battery power does it support?
Ans : It includes a built-in 7.4V battery and supports external 2S or 3S LiPo battery backups for extended runtime.
