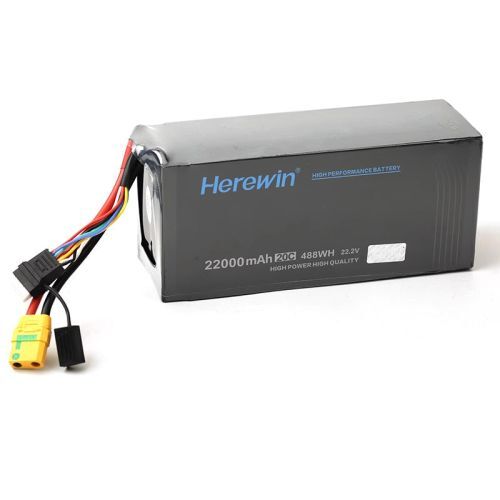

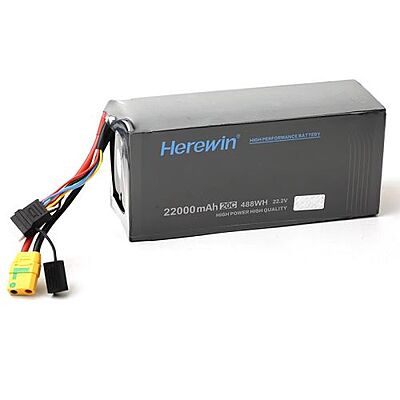

HEREWIN 6s 22000mah 22.2v 25C Li-PO Battery

Features :

• Ultra-high 22000mAh capacity for extended flights.




• 6-cell (6S) configuration for 22.2V power.




• 25C continuous discharge rate for high power.




• Stable and consistent power delivery.




• Ideal for heavy-lift and long-endurance drones.




• Durable construction for reliable use.




• Optimized for professional UAV applications.

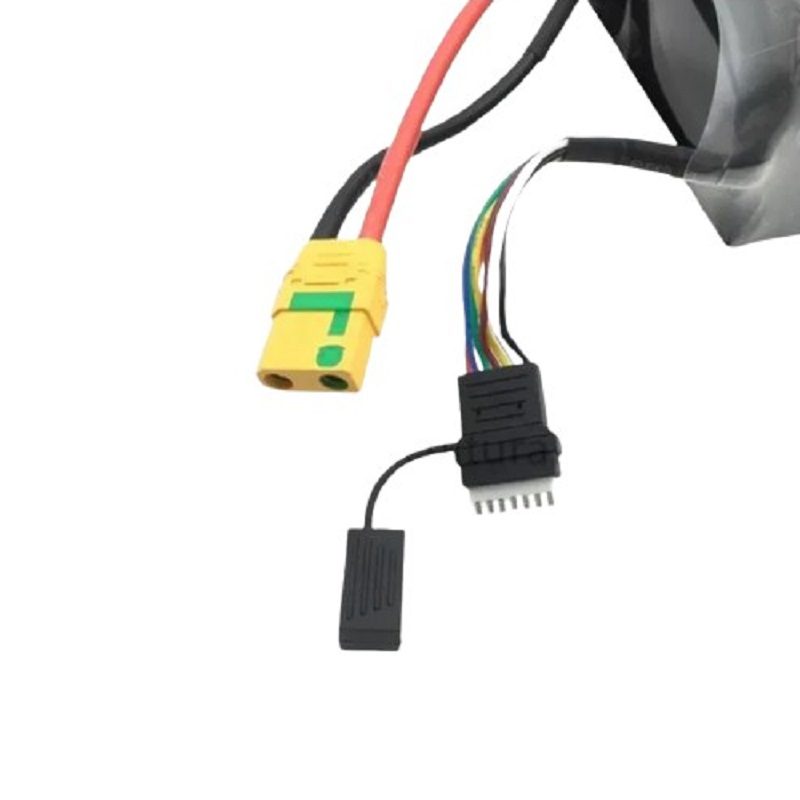

• XT90 connector (common for this size).




• Ensures longer flight times.




• Reliable and safe power source.

Technical Specifications:

• Battery Type: Lithium Polymer (LiPo)

• Configuration: 6S1P (6 Cells in Series, 1 Pack)

• Nominal Voltage: 22.2V

• Capacity: 22000mAh

• Discharge Rate (C-Rating): 25C (Continuous)

• Max Burst Discharge Rate: Typically higher, e.g., 50C for short bursts

• Max Charge Rate: Typically 1C-2C, e.g., 22A-44A

• Energy: 488.4Wh (22.2V * 22Ah)

• Balance Connector: JST-XH (Standard)

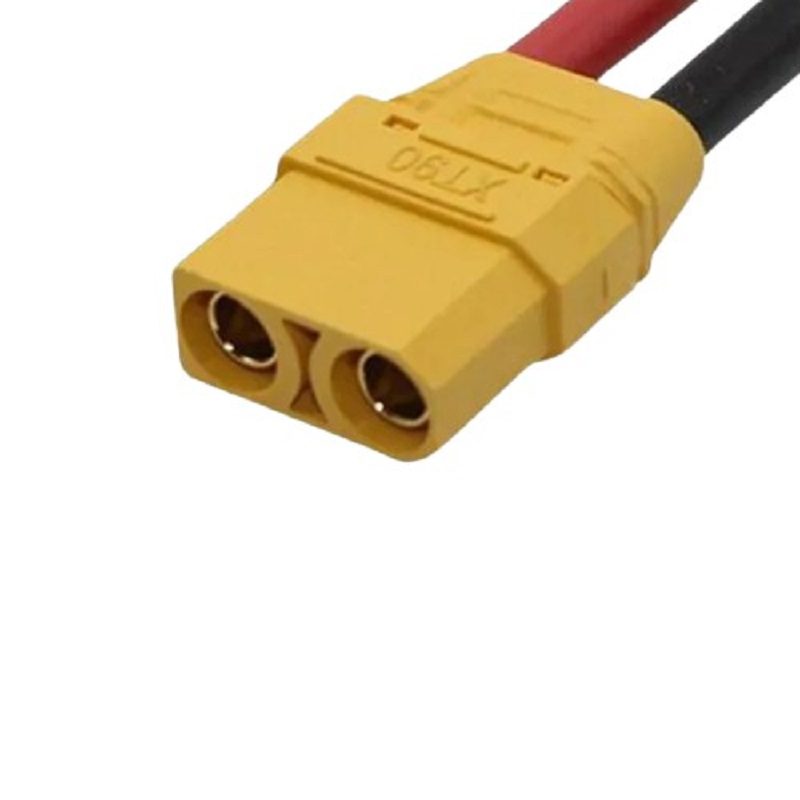

• Discharge Connector: XT90 Common for this capacity/voltage, verify if it's XT90 or AS150 - Assuming XT90

• Dimensions: Approximate, as they vary, e.g., 200mm x 90mm x 65mm for a battery of this size

• Weight: Approximate, as they vary, e.g., 2.5kg - 2.8kg

Additional Details:

• Manufacturer: HEREWIN

• Brand: HEREWIN

• Generic Name: LiPo Battery || Lithium Polymer Battery || Drone Battery || UAV Battery || RC Battery || 6S Battery || 22000mAh Battery || High Capacity Battery || Heavy Lift Battery || Flight Battery

• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)

• Ideal For: Agricultural Spraying Drones || Industrial Inspection UAVs || Heavy-Lift Drones || Long-Endurance Drones || Professional Cinematography UAVs || Large Delivery Drones || VTOL Aircraft || Commercial Drone Operations || Custom Large Scale Drone Builds || Drone Power Systems

Package Details:

Includes:

• 1x HEREWIN 6S 22000mAh 22.2V 25C Li-PO Battery

Frequently Asked Questions:

Q1. What kind of charger is recommended for the HEREWIN 6S 22000mAh LiPo battery?

Ans. For a battery of this size and voltage, a powerful LiPo balance charger capable of handling 6S batteries and outputting a high charge current (preferably 1C-2C, which would be 22A to 44A) is recommended. Look for chargers specifically designed for large drone batteries, often referred to as "high-power" or "industrial-grade" chargers.

Q2. How does the 25C discharge rate affect the performance of my drone with this battery?

Ans. The 25C continuous discharge rate indicates the maximum safe current the battery can continuously deliver (25 * 22Ah = 550 Amps). This high rating ensures that the battery can provide sufficient power even to large, powerful drone motors under heavy load without suffering from voltage sag or overheating, leading to more consistent performance and extended flight times during demanding operations.

Q3. What is the best way to store this large capacity LiPo battery when not in use for extended periods?

Ans. For extended storage, it is crucial to discharge the HEREWIN 6S 22000mAh LiPo battery to its "storage voltage," which is typically around 3.80V to 3.85V per cell (approx. 22.8V - 23.1V total for 6S). Store it in a cool, dry place away from direct sunlight and flammable materials, ideally in a fire-retardant LiPo bag or box, to maintain battery health and safety.
