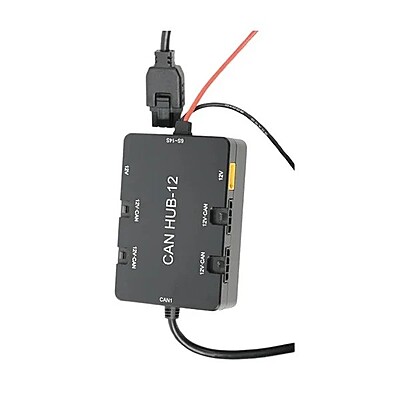

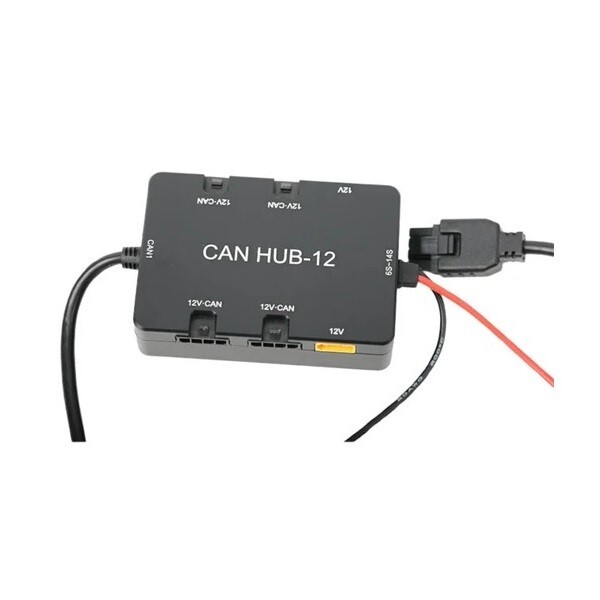

JIYI Can hub
Key features:
1. CAN1: interface connected to K++ flight control
2. 12V-CAN: Output voltage 12V; can be connected to ground radar, obstacle avoidance radar, RTK, etc.
3. 12V: Output voltage 12V; interface XT30
Description:-
The CAN HUB-12 module is mainly a CAN interface expansion device developed for Jiyi ’s new generation flight control K ++ and its peripheral supporting peripherals. It supports 6-14S power input, 12V CAN output, and 12V power output. The CAN HUB-12 interface has strong expandability. It integrates a step-down power supply and expansion interface into one, which is easy to use
1. Product Overview
The CAN HUB-12 module is mainly a CAN interface expansion device developed for Jiyi ’s new generation flight control K ++ and its peripheral supporting peripherals. It supports 6-14S power input, 12V CAN output, 12V power output. The CAN HUB-12 interface has strong expandability. It integrates step-down power supply and expansion interface into one, which is easy to use.
2. Product size
3. Wiring instructions

Specification:
Item Type: | Tracking Device |
Output Voltage(V) | 12V |
Shipping Weight | 0.097 kg |
Shipping Dimensions | 14 × 10 × 4 cm |
tem Type: | Tracking Device |
Output Voltage(V) | 12V |
Shipping Weight | 0.097 kg |
Shipping Dimensions | 14 × 10 × 4 cm |
