MADE IN INDIA DroneCAN 6-Port CAN Bus Splitter – JST-GH 4-Pin, Pixhawk Compatible
₹1,100.00
Out of stock

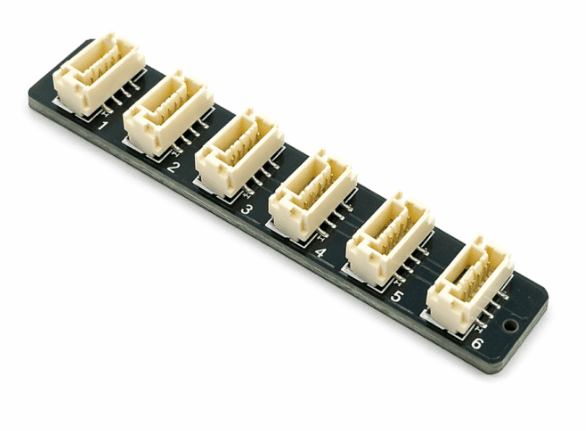

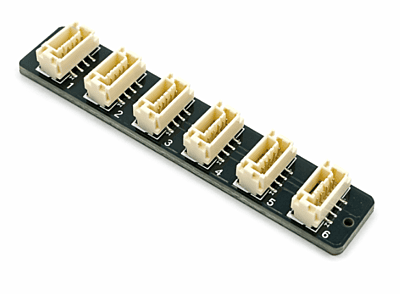

The DroneCAN 6-Port CAN Bus Splitter is a compact, passive distribution board designed for Pixhawk and DroneCAN systems. It enables seamless plug-and-play expansion for multiple CAN-enabled peripherals—such as GPS, compasses, and ESCs—using standard JST-GH connectors, providing reliable signal distribution without requiring any firmware configuration.
Choose Quantity
Product Details
Features:
- Features six standard JST-GH 4-pin ports for rapid CAN expansion.
- Fully compatible with the Pixhawk and DroneCAN hardware ecosystem.
- Passive plug-and-play design requires no firmware or configuration setup.
- Compact and lightweight 2-layer FR4 PCB designed for easy integration.
- Clean internal parallel wiring ensures reliable CAN signal distribution.
Technical Details:
- Number of Ports: 6 × JST-GH 1.25mm, 4-pin connectors
- Supported Interfaces: CAN Bus / DroneCAN (UAVCAN v0 compatible)
- Operating Voltage: 5V (bus powered via the connected network)
- Board Design: Passive 2-layer FR4 distribution board (no active components)
- Pinout (All Ports): Pin 1 (+5V), Pin 2 (CANH), Pin 3 (CANL), Pin 4 (GND)
Additional Details:
- Manufacturer: SwiftWing Robotics
- Brand: SwiftWing
- Generic Name: CAN Bus Splitter
- Sold By: UAV Marketplace
- Ideal For: Pixhawk CAN expansion, DroneCAN sensor networks, UAV systems (GPS, compass, airspeed sensors), and CAN-enabled ESC integration.
Package Details:
- Includes 1 × 6-Port CAN Bus Splitter Board. (Cables and mounting hardware are not included).
