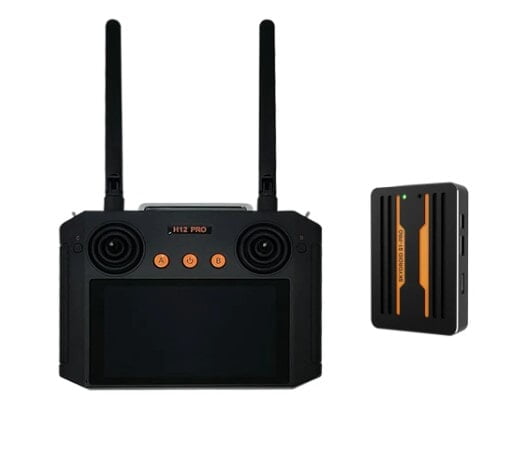

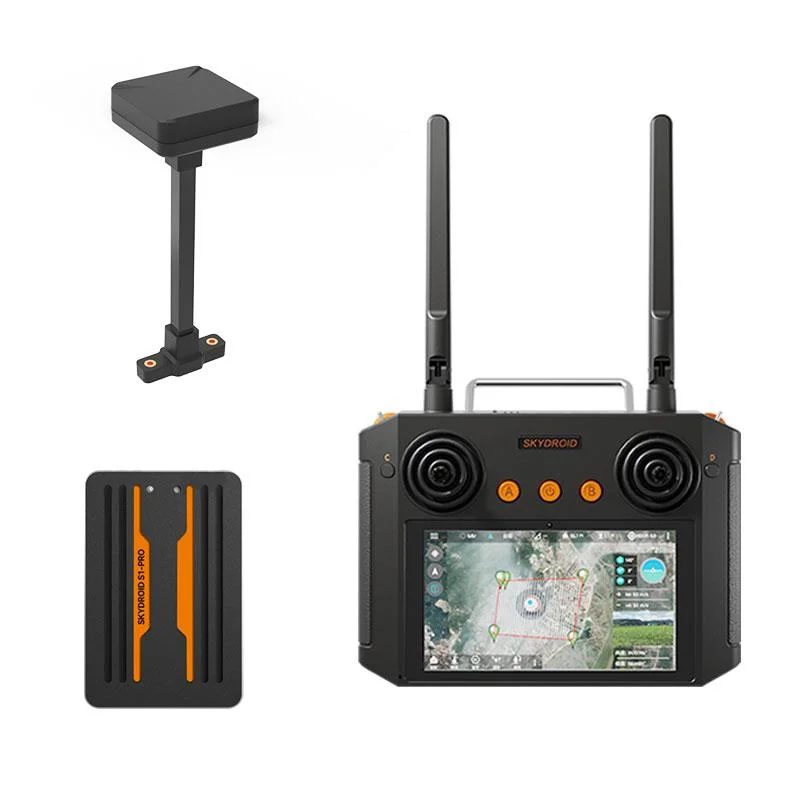

SKYDROID S1 Pro Combo

Features :

• AI-powered intelligent features for enhanced drone operations.

• Integrated high-definition camera for clear visual feedback.

• Supports long-range digital image transmission and telemetry.

• Large, bright display for clear viewing in sunlight.

• Ergonomic design with tactile buttons for comfortable control.

• Multiple communication interfaces for broad drone compatibility.

• Built-in high-capacity battery for extended operating time.

• Real-time flight data display and mission planning.

• Designed for professional industrial and agricultural UAVs.

• Robust and reliable performance in diverse environments.

Technical Specifications:

• Processor : STM32F407

• Inertial sensor (gyro/accel): BMI088 automotive‑grade IMU

• Electronic compass: IST8310

• Barometer: LPS22HB

• Interface: GH1.25

• Whip antenna: 30cm/40cm/50cm Optional

• PWM Output: 12 OneShot/PWM Output(configurable)

• Receiver: Built-in R12 PRO

• Receiver Antenna Gain: 4dBm

• Receiver Transmit Power: 17.5dBm

• GPS: M10

• RC OUT SBUS: 1

• GPS UART Serial Port: 1

• Power Port: 1

• LAN Port: 1

• CAN Port: 1

• Supported models: 3~8 Axes

• Power Input Voltage: 2s-18s

• USB Voltage: 5V±0.3V

• Servo Voltage: 5V±0.3V

• Working Temperature: -40~80℃

• Size: 68*47*13mm

• Weight: 62g




3 in 1 LAN camera (optional):

• Resolution: 1080*720 default

• Size: 102.1*42.6*36.5mm

• Working voltage: 12~72V

• Working current: 90mA

• LED power: 6W

Additional Details:

• Manufacturer: SKYDROID

• Brand: SKYDROID

• Generic Name: Remote Controller || Drone Controller || Ground Station || Smart Controller || UAV Controller || RC Transmitter || FPV System || Video Transmission System || Telemetry System || Drone Control Station

• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)

• Ideal For: Agricultural Drones || Industrial Drones || Mapping & Surveying UAVs || Long-Range Operations || Public Safety Drones || Delivery Drones || Inspection Drones || Custom Drone Builds || Professional UAV Pilots || Robotics Control

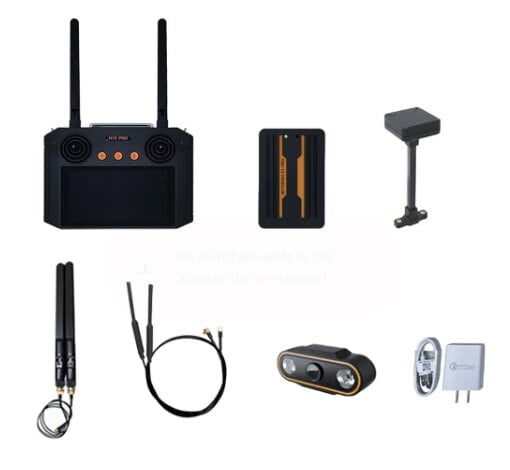

Package Details:

Includes:

• 1 x H12 remote control

• 1 x S1-PRO

• 1 x GPS(Optional)

• 1 x Whip antennas

• 1 x Flat antenna

• 1 x 3 in 1 LAN camera (optional)

• 1 x Charger

Frequently Asked Questions:

Q1. What makes the SKYDROID S1 Pro an "AI Smart Remote Controller"?

Ans. The SKYDROID S1 Pro integrates AI capabilities within its Android operating system to enhance drone operations. This can include intelligent flight planning, object recognition for automated tasks, smart data analysis, and advanced navigation features that go beyond conventional remote control.

Q2. What is the typical operating range for the SKYDROID S1 Pro Combo's video and telemetry?

Ans. The SKYDROID S1 Pro Combo typically offers an impressive long operating range for both video transmission and telemetry, often up to several kilometers (e.g., 10-20km depending on specific model and environment). This allows for extended drone operations and reliable data communication.

Q3. Can the SKYDROID S1 Pro be used with various flight controllers or just specific ones?

Ans. The SKYDROID S1 Pro is designed to be compatible with a wide range of popular open-source flight controllers, such as Pixhawk and ArduPilot-based systems, as well as some proprietary flight controllers. It typically connects via standard UART or SBUS protocols, making it versatile for custom drone builds.
