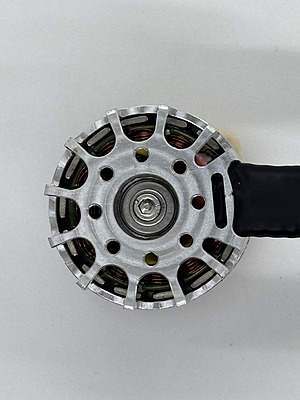

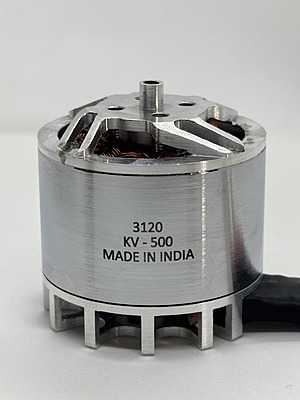

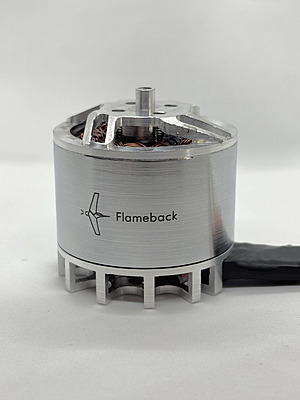

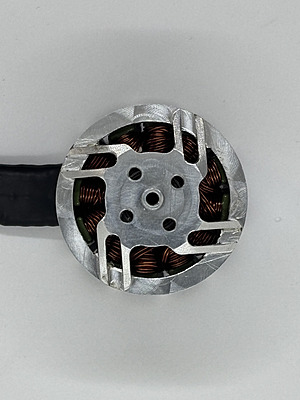

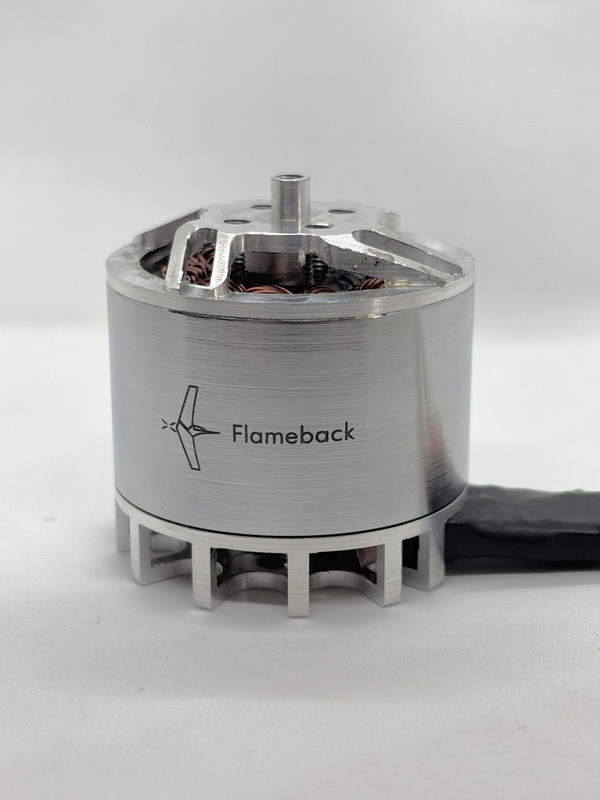

Made In India Flameback FT 3120 BLDC Motor
The Flameback 3120 KV500 BLDC Motor is purpose-built for UAV platforms requiring high thrust-to-weight performance with uncompromising reliability. With a 500 KV rating, 12N14P configuration, and 500 W continuous output, it delivers consistent efficiency, smooth throttle response, and stable operation.
Features
- High Thrust Capacity: Delivers up to 2.4 kg thrust on 6S LiPo.
- Optimized KV Design: 500 KV, 12N14P configuration ensures torque and reliability.
- Compact Stator Build: 31 mm diameter × 20 mm height provides stable power delivery.
- Thermal Efficiency: Optimized winding reduces heat buildup, ensuring endurance.
- Smooth Control: Designed for accurate throttle response with minimal vibration.
- Durable Construction: Built for long-lasting heavy-lift UAV performance.
- Seamless Integration: Works best with Flameback 60A ESC and 11 × 4.5 propellers.
Specifications
- Item Type Drone motor
- Model Type BLDC Motor
- Motor KV (RPM/V)500
- Motor Type Brushless Motor
- Max. Power (W) 500
- Maximum Thrust (gm) 2400 (2.4 kg)
- Current Rating (A) 25
- Stator Height 20 mm
- Stator Diameter 31 mm
- Configuration 12N14P
- Compatible Prop (inch) 11 × 4.5
- Compatible LiPo Batteries 6S
- Operating Temperature (°C): -20 - 125°C
- Weight (g) 146 (including cables)
Additional Details:
- Manufacturer: Flameback Tech Private Limited
- Brand: Flameback
- Generic Name: BLDC Motor, Brushless Motor, Heavy-Lift Drone Motor, High-Thrust UAV Motor, Outrunner Motor, Industrial Motor, Multirotor Propulsion.
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: Agricultural Spraying Drones (Agri-Drones), Heavy-Lift Surveying UAVs, Logistics and Cargo Drones, Industrial Inspection Platforms, Custom Multi-Rotor Drones (MTOW 5-10 kg range).
Package Details

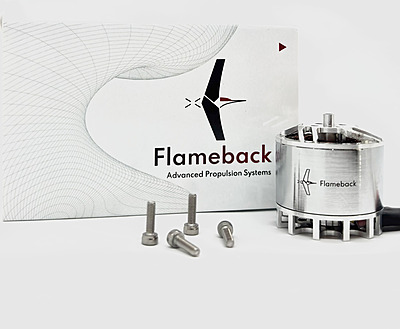

- 1 x Made In India Flameback FT 3120 BLDC Motor
- This product is covered by a 12-month standard supplier warranty from the date of delivery, limited to manufacturing defects only. Replacement will be provided in such cases.
- Please note, the warranty will be void if the product is misused, tampered with, exposed to static discharge, accident, fire, water, or chemicals, or if it has been soldered, modified, or altered in any way.
Frequently Asked Questions:
Q1: What ESC is recommended for the Flameback FT3120 KV500 motor?
ANS: Due to the 25A maximum continuous current, a 6S-compatible ESC with a continuous rating of 40A to 60A (such as the Flameback 60A ESC) is recommended for safety and optimal performance.
Q2: What drone size is this 3120 KV500 motor best suited for?
ANS: It is ideal for mid-sized professional drones and heavy-payload quadcopters (MTOW approximately 1.5 - 2.5 kg) that require the power density of an 11-inch propeller system.
Q3: Does this motor support 4S LiPo batteries, or is it strictly 6S?
ANS: While compatible with both, the motor's 500 KV rating is optimized for 6S LiPo to achieve its maximum specified thrust and efficiency. 4S operation will result in significantly lower thrust and RPM.
