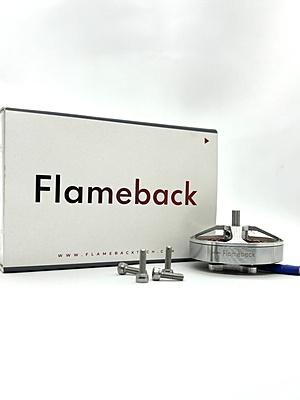

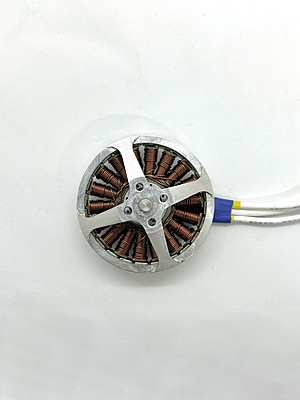

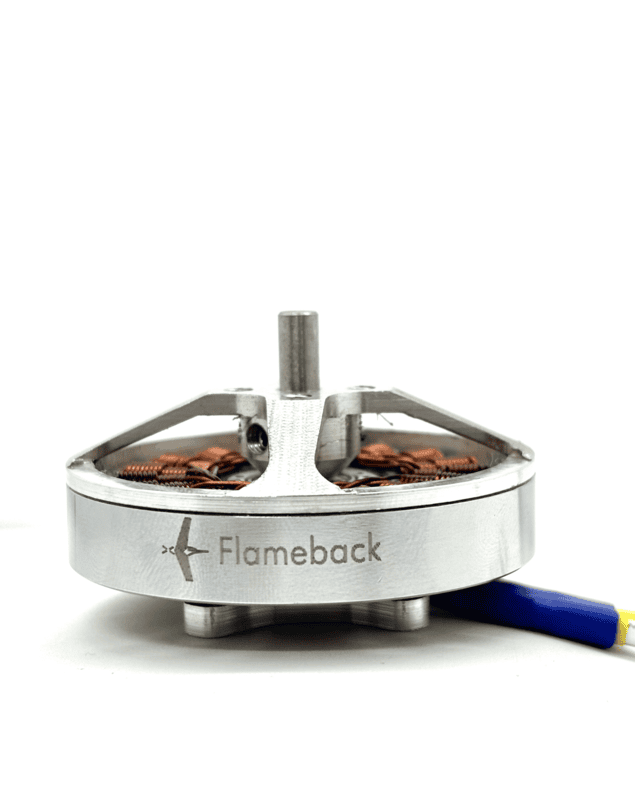

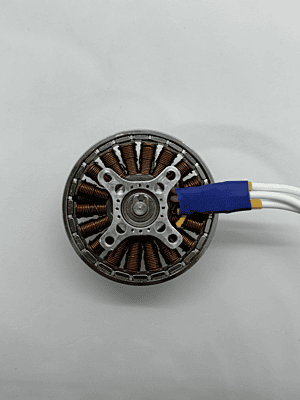

Made In India Flameback 4006 380 BLDC Motor
Non-returnable
₹9,399.00
Out of stock
The Flameback 4006 KV380 BLDC Motor delivers over 2 kg thrust at only 70 g weight, giving it an exceptional power-to-weight ratio for medium-lift UAVs. With a 380 KV rating, 18N24P configuration, and 350 W continuous power capacity, it combines efficiency with responsive performance.
Product Details
Features
- Optimized Power-to-Weight Ratio: Generates over 2 kg thrust with only 70 g weight, enabling efficient lift for medium-lift UAVs.
- Advanced Thermal Design: Integrated finned housing ensures superior heat dissipation for consistent performance under extended flights.
- Rotor Balance Technology: Precision flux rings reduce inertia and vibration, delivering smoother and more stable flight control.
- Compact & Efficient: 380 KV, 18N24P configuration provides responsive throttle control and flight stability.
- Consistent Performance: Supports 4-6S LiPo batteries with 350 W continuous power at 18 A.
- Lightweight Construction: Ø45.5 × 32 mm design at just 70 g minimizes UAV payload impact.
- Seamless Integration: Recommended with Flameback 45A 6S ESC and 14×4.8 / 15×5.5 propellers for optimal performance.
- Ideal Applications: Designed for delivery drones, mapping UAVs, and aerial photography platforms.
Specification:
- Item Type: Drone motor
- Model Type: BLDC Motor
- Motor KV (RPM/V): 380
- Motor Type: Brushless Motor
- Shaft Diameter (mm): 4
- Max. Power (W) 350
- Maximum Thrust (gm) 2170
- Current Rating (A): 18
- Wire Gauge 18 AWG
- Stator Height 6mm
- Stator Diameter 40mm
- Configuration: 18N24P
- Compatible Prop (inch): 14 x 4.8, 15 x 5.5
- Compatible LiPo Batteries: 4S to 6S
- Operating Temperature (°C): -20 - 125°C
- Length (mm): 45.5
- Width (mm): 32
- Weight (g): 72
- Shipping Weight 0.163 kg
- Shipping Dimensions 11.5 × 7 × 6 cm
Additional Details:
- Manufacturer: Flameback
- Brand: Flameback
- Generic Name: BLDC Motor, Brushless Motor, Low KV Drone Motor, Endurance UAV Motor, High-Efficiency Outrunner, Multi-rotor Motor, Medium-Lift Motor.
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: Medium-Lift Quadcopters, Mapping/Survey Drones, Long-Endurance Surveillance UAVs, Delivery Drones, Professional Cinematic Platforms, Industrial Inspection Drones.
Package Details
- Include: 1 x Made in India Flameback 4006 kv380 BLDC Motor
Warranty:
- This product is covered by a 12-month standard supplier warranty from the date of delivery, limited to manufacturing defects only. Replacement will be provided in such cases.
- Please note, the warranty will be void if the product is misused, tampered with, exposed to static discharge, accident, fire, water, or chemicals, or if it has been soldered, modified, or altered in any way.
Frequently Asked Questions:
Q1: What is the ideal ESC rating for this 4006 KV380 motor?
ANS: A reliable 30A to 45A 6S-compatible ESC is generally recommended to provide sufficient headroom and maintain efficiency during peak performance.
Q2: What types of drones benefit most from a 380 KV motor?
ANS: The low 380 KV is best for medium-to-large multi-rotors (5 kg MTOW range) that use large propellers (14-15 inches) to prioritize endurance and payload capacity over speed.
Q3: What is the significance of the finned design on this motor?
ANS: The finned design acts as a heat sink, enhancing passive cooling to maintain optimal operating temperature and ensure consistent power output during long, continuous flights.
