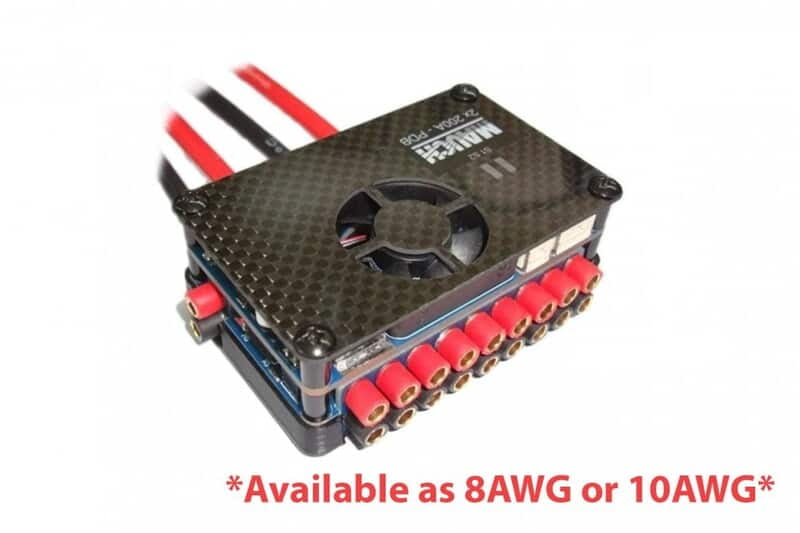

Mauch 030: PL 2x 200A PDB
Non-returnable
₹34,549.00
The Mauch 030: PL 2x 200A PDB is a premium Power Distribution Board designed for high-current UAVs (up to 50kg AUW). Featuring dual 200A Hall sensors, an integrated HYB-BEC (5.3V/3A for FC), and a main power switch, it delivers 400A continuous current. This PDB simplifies wiring and enables intelligent pre-flight warm-up for Pixhawk and other flight controllers.
Choose Quantity
Product Details
Features:
- All-in-one PDB design.
- Dual 200A Hall current sensors (total 400A continuous).
- Integrated Sensor Hub X2 (deactivatable for single battery).
- Built-in 4-14S HYB-BEC (5.3V @ 3A for FC).
- Main power switch for safe power-up.
- Flight controller warm-up mode (IMU/GPS lock).
- Outputs via 3.5mm bullet connectors.
- Supports dual battery input (2x 4-14S LiPo).
- Compact (75x49x27mm) and lightweight (110g).
- Smooth power-up protects ESCs and equipment.
Technical Specifications:
- Model: Mauch 030: PL - 2x 200A PDB
- Input 2x 4-14S (absolute max.60V) with transient spikes of max. 62V.
- 2x 200A = 400A (continues) 1,200A @ 25’C for 1sec.
- Hub X2 can be deactivated for single battery usage.
- 5.3V / 3A power supply for Flight Controller
- 2x 20cm 10AWG input cables (red/black)
- Only 75 x 49 x 27mm -> 110g (without cables)
- Recommended maximum AUW of UAV = 50kg.
Additional Details:
- Manufacturer: Mauch Electronics
- Brand: Mauch
- Generic Name: Power Distribution Board || PDB || Drone Electronics || UAV Power System || Current Sensor || Voltage Sensor || BEC || Power Module || Flight Controller Power Supply || Drone Component
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories
- Ideal For: Heavy-Lift Drones || Professional UAVs || Industrial Drones || Agricultural Drones || Custom Multirotor Builds || Long-Endurance Drones || Surveillance Drones || Cargo Drones || Pixhawk 2.1 (The Cube) users || Systems requiring high current handling and redundant power.
Package Details:
Includes:
- 1x PDB with soldered-on input wires (2x 20cm 10AWG)
- 1x 042: PL – FC cable for Pixhawk 2.1 (The Cube)
- 20x 3.5mm bullet connectors (male)
- 2x 26cm Red/Black shrinking tube
- 2 pairs AMASS / AS150 connector
Note: without 059: Power-Switch
Frequently Asked Questions:
Q1. What is the main advantage of the Mauch 030 PDB compared to standard PDBs?
Ans. The Mauch 030 is an all-in-one premium PDB featuring dual 200A Hall sensors, an integrated HYB-BEC, and a unique main power switch with a flight controller warm-up mode, offering superior current handling, reliability, and simplified wiring for heavy-lift UAVs.
Q2. What battery configurations can the Mauch 030 PDB support?
Ans. It supports input from two 4-14S LiPo batteries (up to 60V absolute max) connected in parallel, allowing for flexible power setups for high-voltage drone systems.
Q3. How does the "flight controller warm-up mode" work on the Mauch 030 PDB?
Ans. This feature allows you to power only the flight controller (e.g., Pixhawk's IMU and GPS) for pre-flight warm-up and GPS lock without energizing all other equipment, which can then be powered up smoothly by pressing the main switch when ready for flight.
