CUAV NEO 3x GNSS Module
- Easy to use
- Industrial-Grade Electronic Compass
- RGB Surround Light
- Buzzer Prompt
Features:
- Easy to use
- Industrial-Grade Electronic Compass
- RGB Surround Light
- Buzzer Prompt
- Safety Switch
- Barometer
- CAN BUS
- Easy to install
- Good quality product
Description:
CUAV NEO 3 Pro GPS Module | GNSS U-BLOX M9N CAN BUS is a new product from CUAV brand. NEO 3 Pro continues the hardware design of NEO V2, upgrade the GNSS module to Ublox NEO M9N, supports Beidou, Galileo, Glonas and GPS receive the same time, and the horizontal positioning accurcy is up to 0.7m. Integrated with safety swith, buzzer, RGB light.

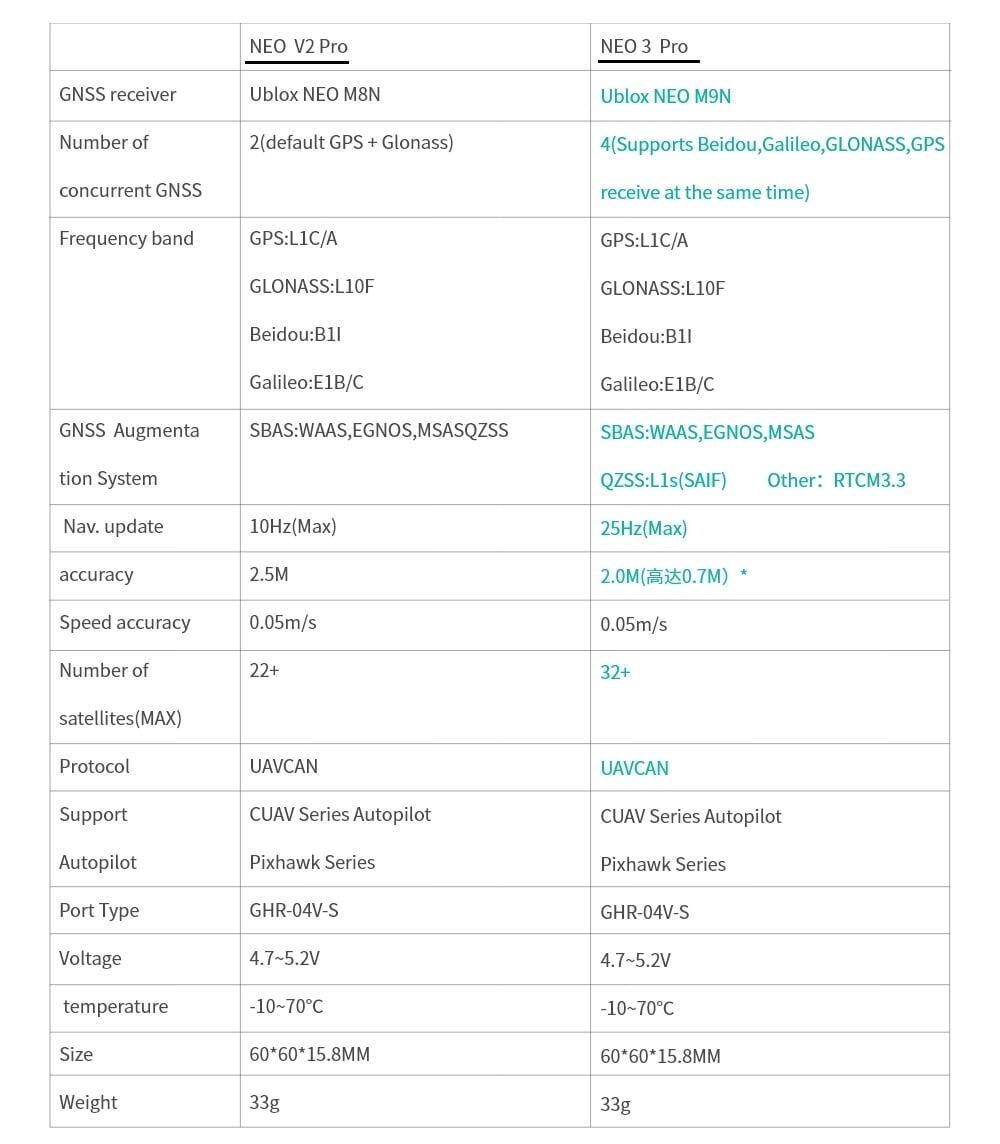

Comparison between NEO v2 Pro & NEO 3 Pro:
Specifications:
Item Type: |
GPS Module |
No. of Concurrent GNSS | 4 (Supports Beidou, Galileo,GLONASS,GPS receive at the same time) |
GNSS Augmentation System | SBAS:WAAS,EGNOS,MSAS QZSS:L1s(SAIF), Other RTCM3.3 |
Nav. update | 25Hz(Max) |
Accuracy | 2.0M (Upto 0.7M) |
Speed accuracy | 0.05m/s |
No. of Satellites (Max) | 32+ |
Protocol | UAVCAN |
Port Type | GHR-04V-S |
Input Voltage (V) | 4.7 to 5.2 |
Operating Temperature (°C) | -10~70°C |
Size | 60*60*15.8MM |
Net Weight | 33g |
Shipping Weight | 0.135 kg |
Shipping Dimensions | 9.5 × 9.5 × 6 cm |
Package Includes:
1 x CUAV NEO 3 Pro GPS Module | GNSS U-BLOX M9N CAN BUS
1 x stand and cable
1 x CUAV NEO 3 Pro GPS Module | GNSS U-BLOX M9N CAN BUS
1 x stand and cable
