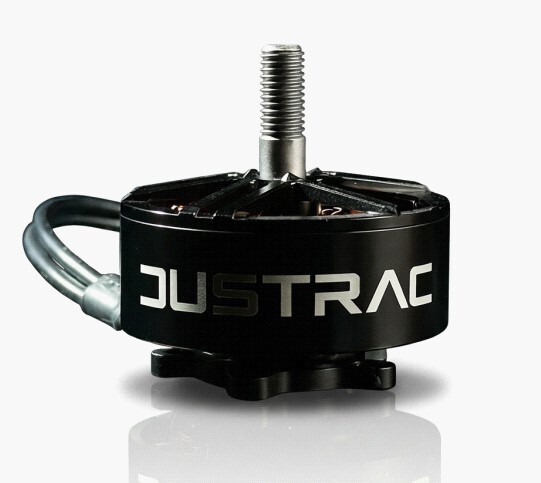

Made In India Dustrac 3115 (900Kv)

Features :

• Propeller Compatibility: Optimized specifically for large 10" propellers.
• Voltage Support: Designed to handle high-voltage 6S LiPo power systems.
• Peak Thrust: Delivers a massive maximum lifting power of 4290g per motor.
• Max Power: Reaches up to 1771.3648 W output for extreme loads and heavy lifting.
• Motor Design: 12N14P framework configuration ensures strong, steady torque.
• Mounting: Uses standard 4-M3 base screws for secure frame attachment.
• Shaft Durability: Features a robust 5mm bearing and protruding shaft to withstand heavy payloads.
• Wiring: Comes equipped with an extra-long 250mm of 18 AWG lead wire for easier routing on larger frames.
• Internal Resistance: Low 39 mOhm internal resistance keeps the motor running cooler under stress.

Technical Specifications:

• Motor Dimensions: $\Phi37.1\times48.9~mm$
• Framework: 12N14P
• Bearing Shaft: 5mm
• Lead: 18#AWG 250mm
• Weight: 107.5 g (without lead wires)
• Idle Current (10V): 1.45 A
• Internal Resistance: 39mOhm
• No. of Cells: 6S
• Propeller: 10"
• Peak Current (6S): 71.426 A
• Max Power (6S): 1771.3648 W

Additional Details :

• Manufacturer: Tritium Motors Pvt. Ltd.
• Brand: DUSTRAC
• Generic Name: Brushless DC Motor || FPV Drone Motor || Heavy-Lift Outrunner
• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
• Ideal For: 10-inch heavy-lift custom drones, cinematic FPV rigs, and high-payload long-range builds.

Frequently Asked Questions:

Q1. What size propeller is recommended for this motor?

Ans. This motor is strictly optimized and tested for use with 10-inch propellers, specifically 10x5x3 tri-blades for maximum performance.

Q2. What is the maximum current draw of this motor?

Ans. The peak current at maximum throttle on a 6S setup reaches 71.426 A. Because of this high draw, it is strongly recommended to pair it with an ESC rated for at least 75A to 80A.

Q3. Is this motor suitable for a 4S battery setup?

 Ans. While it may function on lower voltages, it is explicitly designed and rated for a 6S battery configuration. Running it on 6S ensures you achieve its full efficiency and power capabilities.
