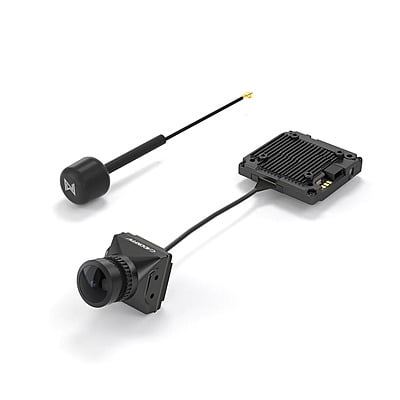

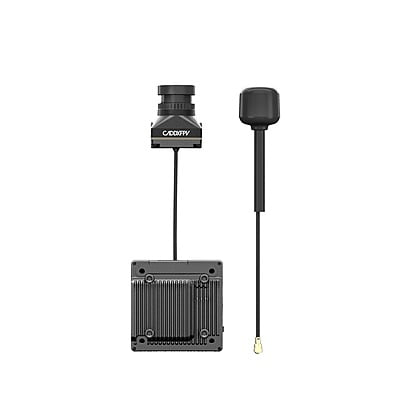

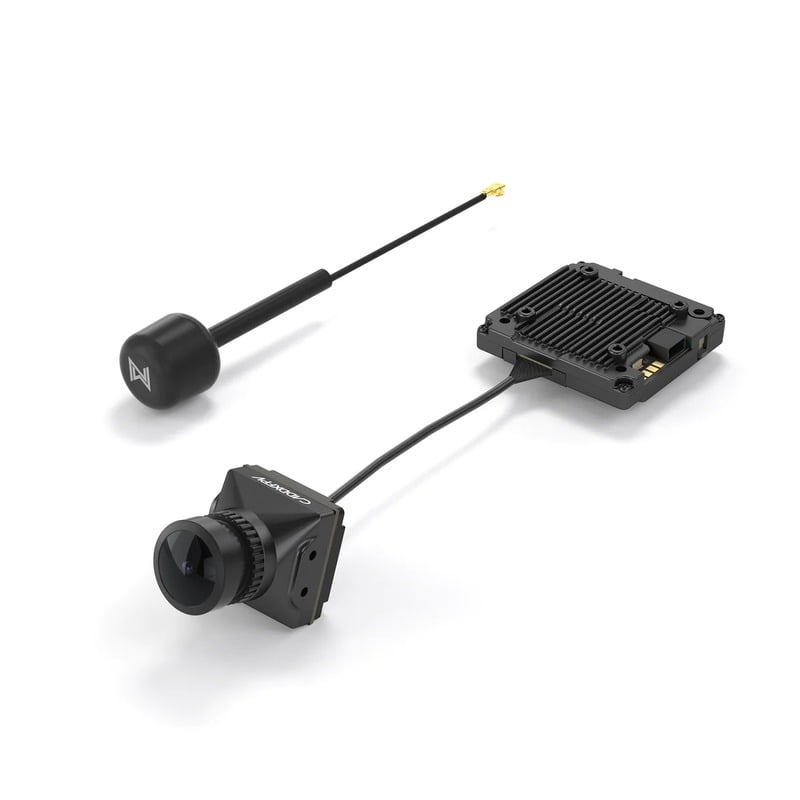

CADDX Walksnail Avatar HD Pro Kit
₹15,199.00
Out of stock

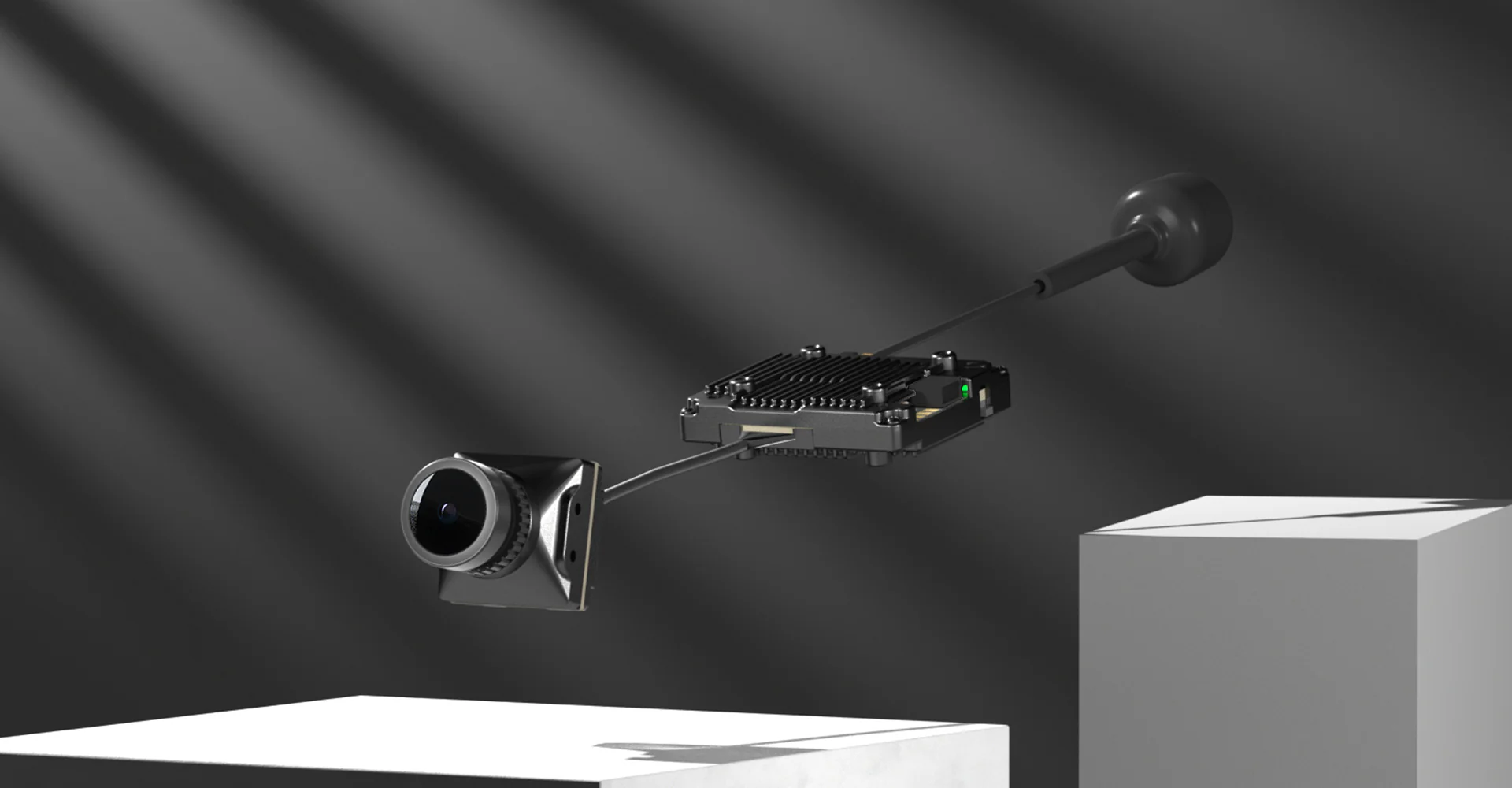

The CADDX Walksnail Avatar HD Pro Kit is a premium digital FPV system featuring a 1/1.8" Sony Starvis II sensor that excels in both daylight and low-light conditions. With native 1080P/120fps support, this system delivers ultra-clear, low-latency video suitable for racing and cinematic applications. Enhanced durability, optimized power management, flexible mounting, and Gyroflow support ensure high performance, adaptability, and smooth footage in all scenarios.
Product Details
Features
- 1/1.8 inch Sony Starvis II sensor with exceptional night vision
- 1080P/120FPS high frame rate video
- Gyroflow compatibility for stable footage
- Built-in 32GB storage for extended recording
- Dual mounting holes (20x20mm and 25x25mm)

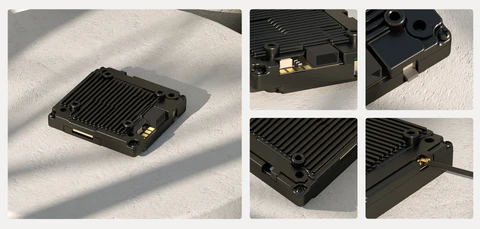

- Optimized PCB and casing for durability
- Enhanced antenna base and button placement
- 6V–25.2V wide voltage input
- Single antenna design for compact setup
- 160° FOV wide-angle camera lens
- Canvas mode OSD compatibility
- Lightweight design for better flight dynamics

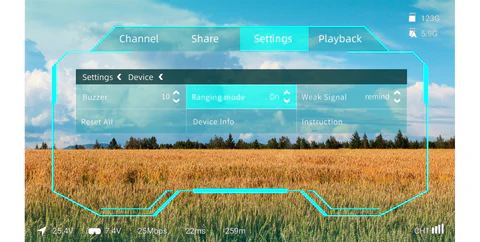

- Real-time distance display via Ranging Mode
- HDMI output for external display
Technical Specifications

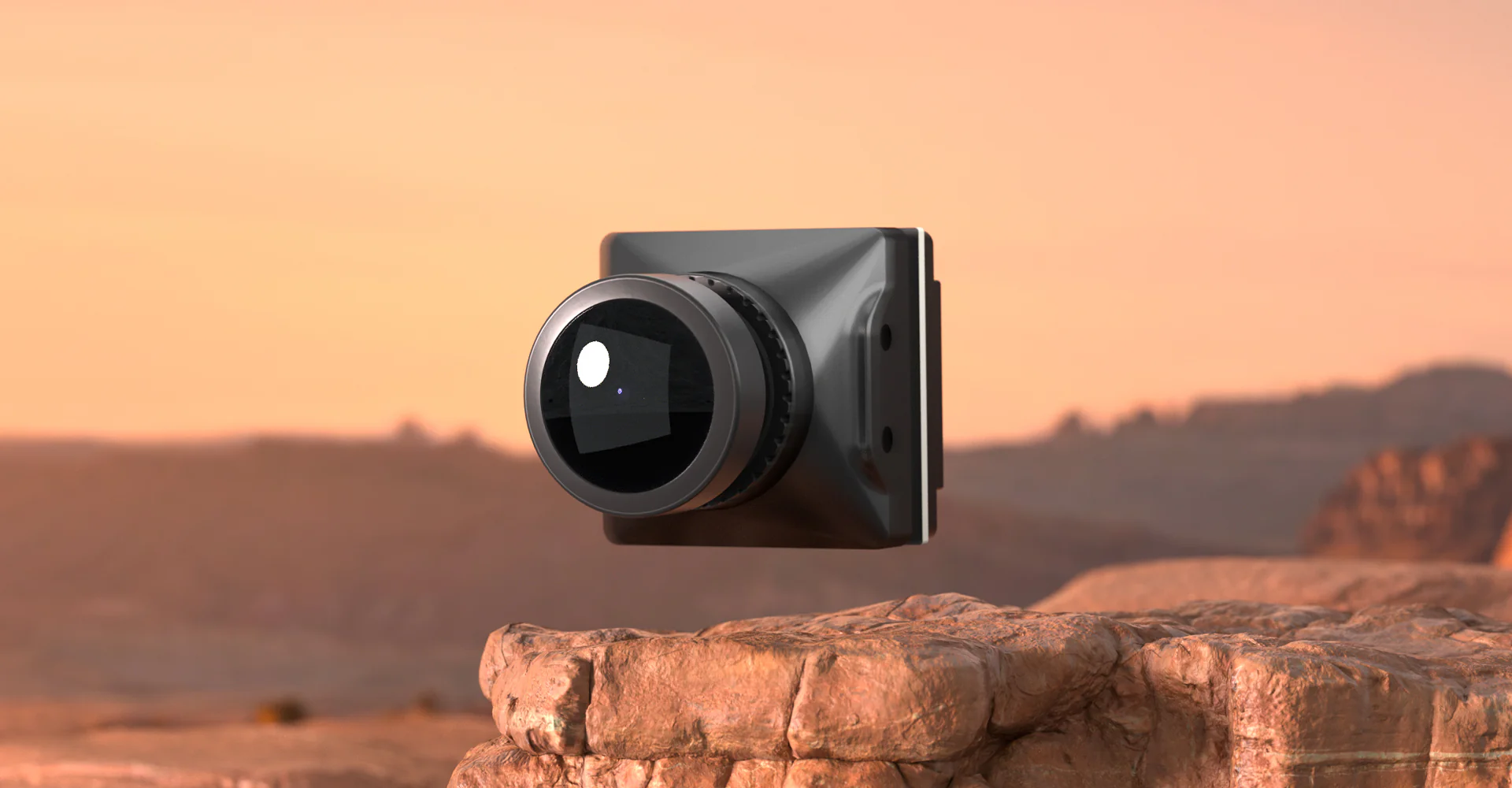

- Camera Model: Avatar HD Pro Camera
- Image Sensor: 1/1.8-Inch Sony Starvis II Sensor
- Resolution: 1080P/60fps; 720P/120fps; 720P/60fps; 1080P/120fps compatibility
- Ratio: 16:9 / 4:3
- Lens: 8MP
- FOV: 160°
- Aperture: F1.6
- Shutter: Rolling shutter
- Minimum Illumination: 0.00001Lux
- Camera Weight: 9.5g
- Camera Dimensions: 19×19×24mm
- Coaxial Cable Length: 140mm

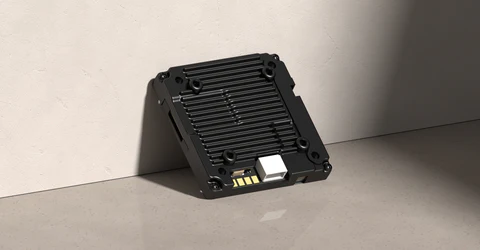

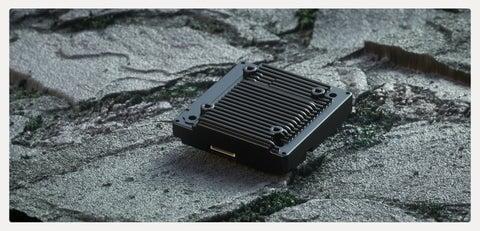

- VTX Model: Avatar V2 Module
- Communication Frequency: 5.725–5.850GHz
- Transmitter Power (EIRP): FCC <30dBm; CE <14dBm; SRRC <20dBm; MIC <25dBm
- I/O Interface: JST1.04 (Power In), JST0.86 (USB)
- Mounting Holes: 25.5×25.5mm and 20×20mm
- VTX Dimensions: 33.5×33.5×10.5mm
- Storage Options: 8G / 32G
- Recording: 1080p / 720p
- VTX Weight: 17.6g
- Operating Temperature: -20°C to 40°C
- Channels: 8
- Power Input Range: 6V–25.2V
- Supported Flight Controllers: Betaflight, Inav, Fettec, ArduPilot, Kiss
- On-Screen Display: Canvas mode
- Latency: Average delay 22ms
- Antenna Type: IPEX
- Antenna Polarization: LHCP
- Antenna Frequency Range: 5600–6000MHz
- Antenna Gain: 1.9dBi
- VSWR: ≤1.5
- Input Impedance: 50Ω
- Antenna Interface: IPEX-1
- Antenna Size: R15×45mm (without cable)
- Antenna Weight: 2g

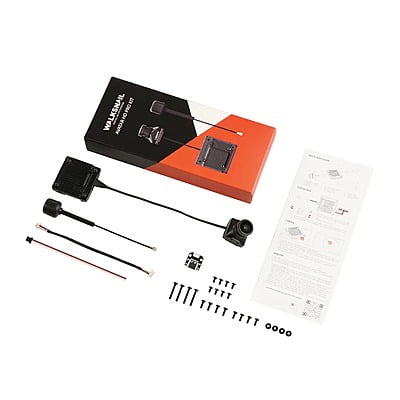

Package Includes
- 1× USB Transfer Extension Cable
- 1× 4-Pin Silicone Cable
- 8× M2*4mm Screws
- 4× M2*5mm Screws
- 4× M2*6mm Screws
- 4× M2*14mm Screws
- 4× M250.5mm Gaskets
Additional Details

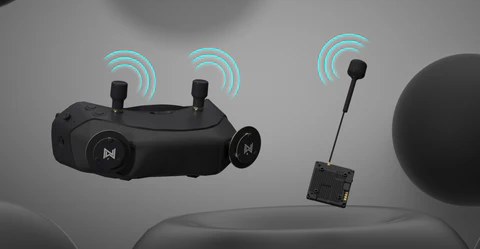

- The upgraded antenna design ensures better frequency band performance and VTX protection.
- Built-in 32GB storage quadruples your video recording time.
- Dual mount compatibility increases frame adaptability.
- HDMI output enables viewing on external monitors or goggles.
- Focus-free adjustment makes it accessible for users without corrective lenses.
- FPV HD Video Transmission Kit || Drone Camera VTX Kit || Digital FPV System || FPV Video Transmitter Set || HD FPV Video Gear || RC Drone HD Camera || Long-Range FPV Transmission Kit
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
Frequently asked questions
Q1 Does the Avatar HD Pro Kit support 1080P/120FPS?
A: Yes, all VTX units support 1080P/120FPS and will enable it fully through an upcoming firmware update.
Q2 Can this be mounted on most FPV drones?
A: Yes, it includes both 20×20mm and 25×25mm mounting holes for universal compatibility.
Q3 Is the night vision comparable to daytime?
A: The Sony Starvis II sensor offers exceptional clarity even in low light, delivering near day-like visibility.
