CADDX Walksnail Avatar HD Goggle With Avatar Pro Kit
₹76,999.00
Out of stock

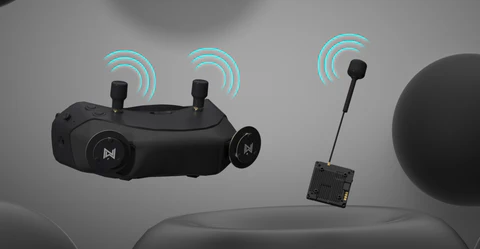

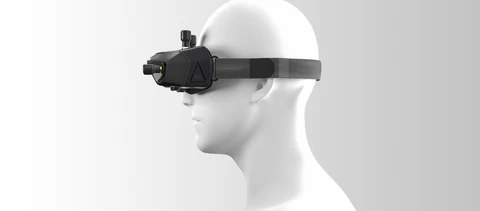

The CADDX Walksnail Avatar HD Goggle with Avatar Pro Kit revolutionizes FPV flying with an industry-first 1080P/120FPS high-frame-rate night vision camera powered by a Sony Starvis Ⅱ sensor. Combined with H.265 encoding, built-in DVR, and Gyroflow support, this kit delivers crystal-clear video with ultra-low latency. The goggles feature dual OLED displays, HDMI output, focus adjustment, and a comfortable 46° FOV, making them an elite choice for FPV racers and freestyle pilots alike.
Product Details
Features
- Dual 1080p OLED microdisplays with 46° FOV for immersive FPV experience
- Adjustable IPD (58-70mm) and diopter focus (+2 to -6) – no need for corrective lenses

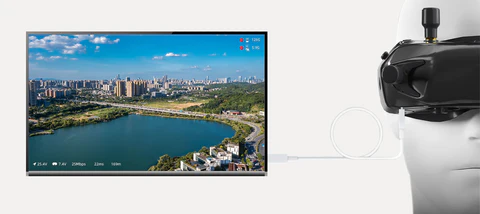

- HDMI Output support
- Support for SD card up to 256GB
- Lightweight and ergonomic design
- Ranging mode for real-time distance display

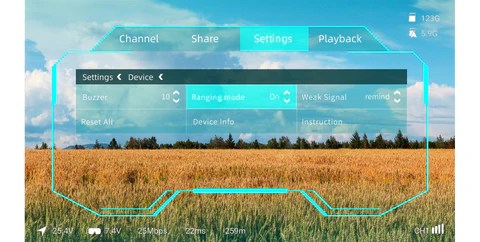

- Multi-language UI and intuitive interface
- 1/1.8” Sony Starvis Ⅱ sensor with outstanding day/night performance
- First-ever 1080P/120FPS support in FPV market
- Gyroflow-compatible for ultra-smooth video stabilization
- Dual mounting hole options (20x20mm and 25.5x25.5mm)
- 32GB built-in DVR with extended flight video storage
- Enhanced TVS protection; supports up to 6S input (6V-25.2V)
- Optimized antenna layout and frequency button placement
- Compact single-antenna design for easier builds
Technical Specifications
- Model: Avatar Goggles
- Display: Dual 0.49" OLED
- Resolution: 1920×1080
- Refresh Rate: 1080p@100Hz
- FOV: 46°
- IPD Range: 58–70mm (mechanical), 54–74mm (visual)
- Focus Adjustment: +2 to -6 Diopter
- Communication Frequency: 5.725–5.850GHz
- Transmitter Power (EIRP): FCC <30dBm; CE <14dBm; SRRC <20dBm; MIC <25dBm
- Inputs: Type-C, microSD card, DC 5.5*2.1mm
- Power Input: 7–21V (2S–5S)
- SD Card Support: Up to 256GB
- Red Bird Polarization: LHCP
- Gain: 1.9dBi
- VSWR: ≤1.3
- Patch Antenna Gain: 8dBi
- Patch FOV: 75°
- Connector: RP-SMA

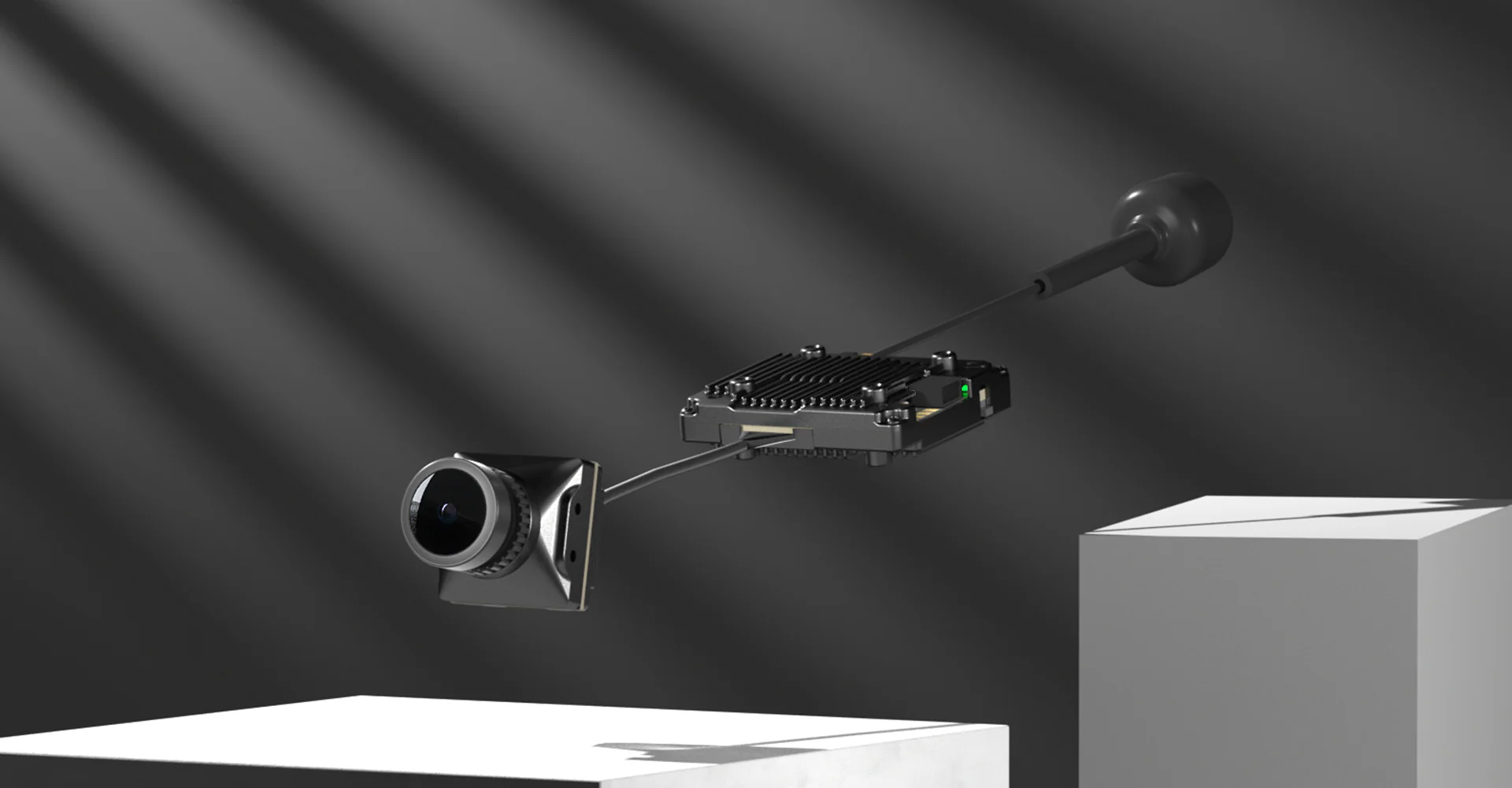

- Model: Avatar HD Pro Camera
- Sensor: 1/1.8" Sony Starvis Ⅱ
- Resolution: 1080P/60FPS, 1080P/120FPS (via firmware), 720P/120FPS
- FOV: 160°
- Aperture: F1.6
- Minimum Illumination: 0.00001Lux
- Shutter: Rolling
- Ratio: 16:9 / 4:3
- Weight: 9.5g
- Dimensions: 19×19×24mm

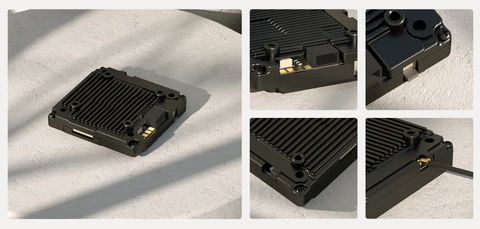

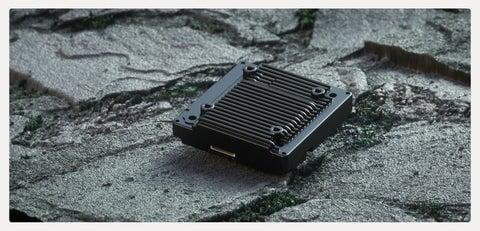

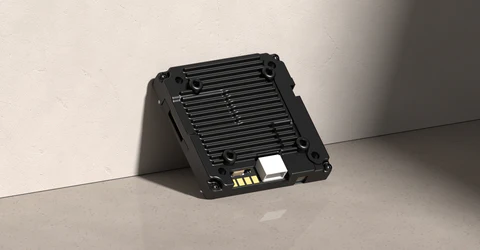

- Model: Avatar V2 Module
- Frequency: 5.725–5.850GHz
- Transmitter Power: FCC <30dBm; CE <14dBm
- Mounting Holes: 20×20mm & 25.5×25.5mm
- Storage: 8GB/32GB
- Recording: 1080p / 720p
- Latency: Avg. 22ms
- Power Input: 6V–25.2V (supports 6S)
- Supported Flight Controllers: Betaflight, Inav, Fettec, Ardupilot, KISS
- OSD: Canvas Mode
- Dimensions: 33.5×33.5×10.5mm
- Weight: 17.6g
- Type: LHCP IPEX
- Gain: 1.9dBi
- Size: R15×45mm
- VSWR: ≤1.5
Additional Details
- The Avatar Pro system combines cutting-edge night vision clarity and 120FPS recording capability, unmatched in the FPV world.
- Enhanced shell design and internal PCB structure increase durability.
- Antenna and frequency binding placements have been improved for better protection and user experience.
- Dual antenna models (Red Bird + Patch) for better reception and range.
- Gyroflow-compatible footage allows cinematic-level post-processing.

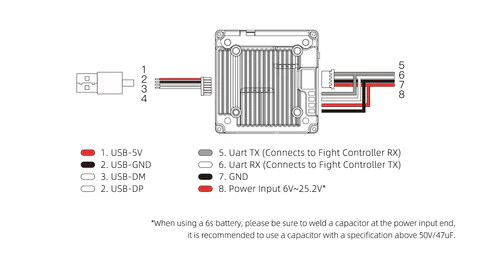

- Dual power connection options allow flexible wiring during installation.
- Digital FPV Goggle Kit || FPV Video Transmission System || Racing Drone Camera & VTX Kit || HD FPV Drone Goggles || OLED FPV Headset || Low Latency FPV System || 1080p FPV Goggles || FPV Goggles with DVR || RC Drone Video Link Kit || FPV Drone Visual System
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
Package Includes
- 1 × Avatar HD Goggles
- 1 × Avatar HD Pro Camera
- 1 × Avatar V2 VTX Module (8G or 32G storage variant)
- 1 × USB Transfer Extension Cable
- 1 × 4-Pin Silicone Cable
- 8 × M2×4mm Screws
- 4 × M2×5mm Screws
- 4 × M2×6mm Screws
- 4 × M2×14mm Screws
- 4 × M2×5×0.5mm Gaskets
- 1 × Antenna (LHCP, IPEX)
- 1 × Avatar Goggles Antenna (Red Bird + Patch)
- 1 × Power Cable
- 1 × User Manual
Frequently Asked Questions
Q1 Does it support 1080P/120FPS recording?
A: Yes, all VTX units support 1080P/120FPS via firmware update.
Q2 Is the focus adjustable on the goggles?
A: Yes, focus adjustment ranges from +2 to -6 diopters.
Q3 Can I use these goggles with HDZero or analog?
A: These goggles are optimized for the Avatar digital system; for HDZero or analog use, additional adapters or compatibility settings are needed.
