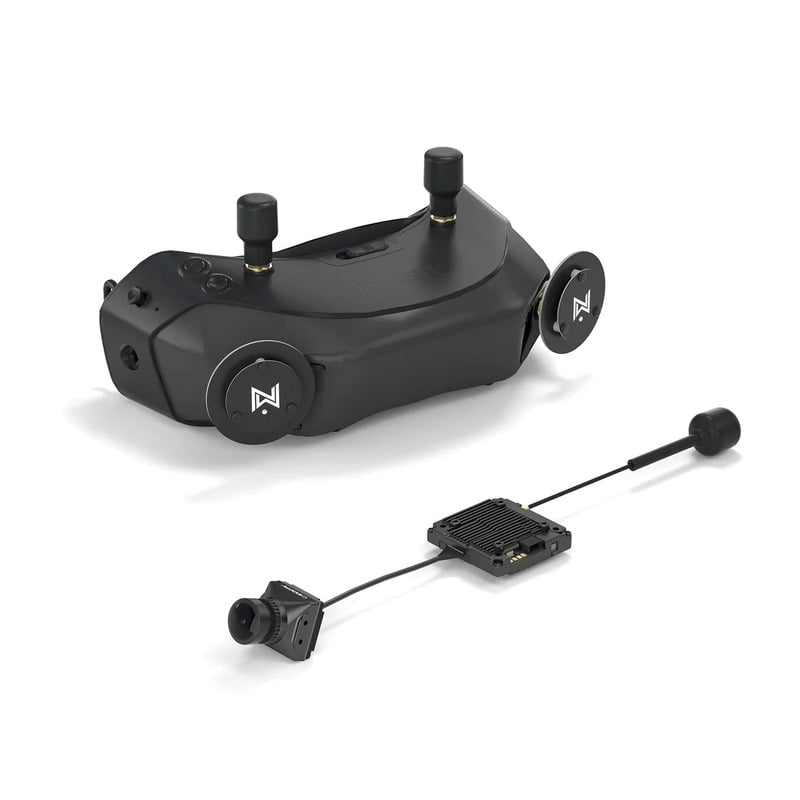

CADDX Walksnail Avatar HD Goggle With Avatar Pro Kit
₹76,999.00
Out of stock
Product Details
Bullet Point :
- 1/1.8 inch Sony Starvis Ⅱ sensor, come with extremely clear night vision as long as day vision.
- Support 1080P/120fps high frame, also the first high frame night vision HD camera in FPV market.
- Supporting Gyroflow for more stable and smoother footage.
Bullet Point:
- Add 20*20mm mounting holes for easy installation.
- Add 32g built-in storage option.
- Updated the design of PCB board and outer shell, more durable.
- A spare pad is added to provide two power connection modes.
- Optimized antenna base design and frequency button position for greater convenience.
Bullet Point for Avatar HD Pro kit
- The Avatar HD system uses H.265 code, an industry-leading technology, to provide 1080p FPV image quality with ultra-low latency. Support 1080P/60FPS, 720P/120FPS.
- Featuring a 1/1.8 inch Sony Starvis Ⅱ sensor, this camera delivers excellent night vision that’s just as clear as day.
- The camera ( 32G VTX KIT) supports Gyroflow, take you smooth and stable video quality.
- In addition to the original 25mm x 25mm mounting holes, the kit now includes 20mm x 20mm holes for greater compatibility with a wider range of FPV drone models.
- Updated the design of PCB board and shell, improved the quality of VTX, more durable.
- Optimized the installation place of the antenna, so as to better protect the VTX.
- The position of the frequency binding button has been changed to make the frequency binding operation more convenient.
- A spare pad is added to provide two power connection modes.
- New VTX with enhanced TVS protection and support for up to 6S. With a wide input voltage the range of 6V to25.2V, our VTX delivers unmatched stability and resistance to GPS interference. Enjoy unparalleled performance and take your FPV adventures to new heights with our cutting-edge technology.
- The Avatar VTX comes with 8g/32g built-in storage it can record 1080p or 720p HD flight videos without interference.32G built-in storage, recording video time increased by 4 times.
- It supports high frame rate and standard frame rate at the same time. Under high frame rate, the average delay is 22ms.
- The compact and convenient single-antenna design makes it easier to assemble your FPV drone. The quality of the antenna is upgraded, and the working performance of the whole frequency band is more stable.
- HD 1080p OLED Dual Micro Displays
- The Avatar goggles are designed to be lightweight, mini, small and have a 46° field of view, making them more comfortable for pilots while giving them a more immersive FPV experience.
- The goggles have the feature of adjusting the focus without the need to install,corrective lenses.
- HDMI Output
- Turn on the ranging mode to display the distance between the drone and goggles in real time, in case the drone is lost due to long distance flight.
- Q: Do we support 1080P 120FPS?
- A: Our VTX products all support 1080P/120FPS, and can reach 1080P/120FPS through firmware upgrade is around the corner.
| Specification | |
| Goggles | |
| Model | Avatar goggles |
| Communication Frequency | 5.725-5.850GHz |
| Transmitter Power (EIRP) | FCC:<30dBm;CE:<14dBm;SRRC:<20dBm; MIC:<25dBm |
| I/O Interface | Type-C,microSD card slot,DC 5.5*2.1mm |
| IPD Mechanical Range | 58-70mm |
| IPD Visual Range | 54-74mm |
| Adjustable Focus Range | +2 to -6 Diopter |
| FOV | 46° |
| Screen Resolution | 1920*1080 |
| Screen Refresh Rate | 1080/100Hz |
| Screen Size | 0.49″1nch |
| Screen Material | OLED |
| HDMI Output | Support |
| Power Input | 7-21V(2S-5S) |
| SD Card | Support 256G |
| Goggles Antenna | |
| Model 1 | Red bird |
| Polarization | LHCP |
| Bandwidth | 5.6GHz-6.0GHZ |
| Average Gain | 1.9dBi |
| Radiation Efficiency | ≥97% |
| VSWR | ≤1.3 |
| Cross-Polar Rejection | -15to-30dB |
| Connector | RP-SMA |
| Dimension | H24.8mm*R15.3mm |
| Weight | 4.2g |
| Model 2 | patch antenna |
| Frequency range (MHz) | 5725-5875 |
| Input Impedance (Ω) | 50 |
| VSWR | <1.5 |
| Gain (dBi) | 8 |
| HPBW | 75°H-plane75°E-plane |
| Front to back ratio (dB) | >10 |
| Power Capacity (W) | 10 |
| Polarization | LHCP |
| interface | RP-SMA |
| Ambient temperature (℃) | -40+60 |
| Camera | |
| Model | Avatar HD pro camera |
| Image Sensor | 1/1.8-Inch Sony Starvis Ⅱ Sensor |
| Resolution | 1080P/60fps;720P/120fps,720P/60fps;1080P/120fps compatibility; |
| Ratio | 16/9; 4/3 |
| Lens | 8Mp |
| FOV | 160° |
| Aperture | F1.6 |
| Shutter | Rolling shutter |
| Min.Illumination | 0.00001Lux |
| Weight | 9.5g |
| Dimensions | 19*19*24mm |
| Coaxial Cable | 140mm |
| VTX | |
| Model | Avatar V2 module |
| Communication Frequency | 5.725-5.850GHz |
| Transmitter Power (EIRP) | FCC:<30dBm;CE:<14dBm;SRRC:<20dBm; MIC:<25dBm |
| 1/O Interface | JST1.0*4(Power in)JST0.8*6(USB) |
| Mounting Holes | 25.5*25.5mm; 20*20mm |
| Dimensions | 33.5*33.5*10.5mm |
| Storage | 8G/32G |
| Recording | 1080p/720p |
| Weight | 17.6g |
| Operating Temperature | -20-40℃ |
| Channels | 8 |
| Wide Power Input | 6V-25.2V |
| Supported FC System | Betaflight; Inav; Fettec; ArduPilot;Kiss |
| OSD | Canvas mode |
| Latency | Average delay 22ms |
| Antenna | 1(IPEX) |
| Avatar V2 antenna | |
| Polarization | LHCP |
| Frequency range | 5600MHz-6000MHz |
| Gain | 1.9dBi |
| VSWR | ≤1.5 |
| Input Impedance | 50Ω |
| Interface | IPEX-1 |
| Size | R15 X 45mm(without cable) |
| Weight | 2g |
| Packing List | |
| USB transfer extension cable | X1 |
| 4 Pin silicone cable | X1 |
| M2*4mm screws | X8 |
| M2*5mm screws | X4 |
| M2*6mm screws | X4 |
| M2*14mm screws | X4 |
| M2*5*0.5mm gasket | X4 |
| Avatar goggles | X1 |
