CADDX Polar Vista Kit Silver FPV Camera
₹13,999.00
Out of stock

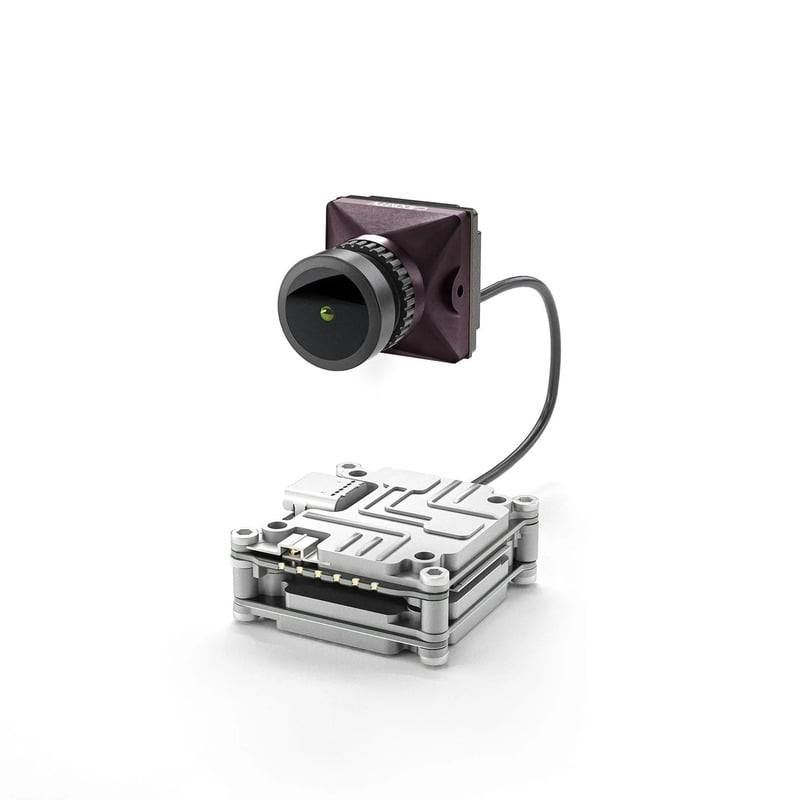

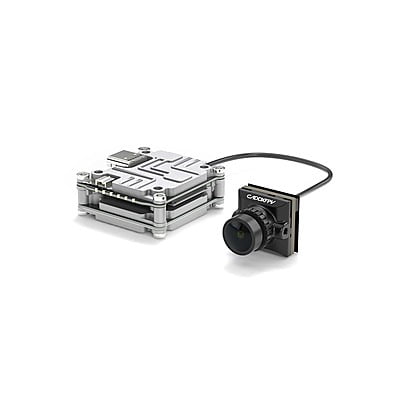

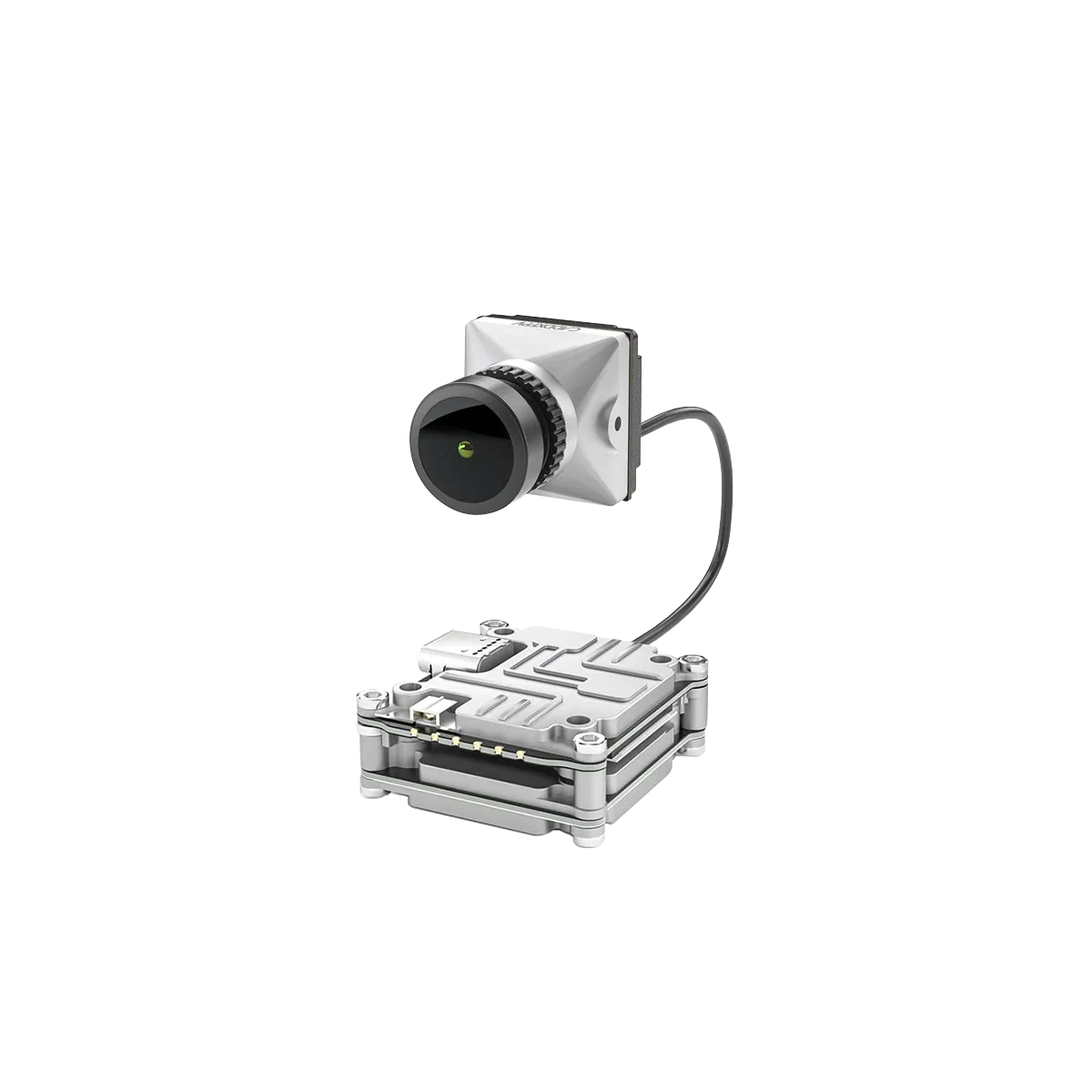

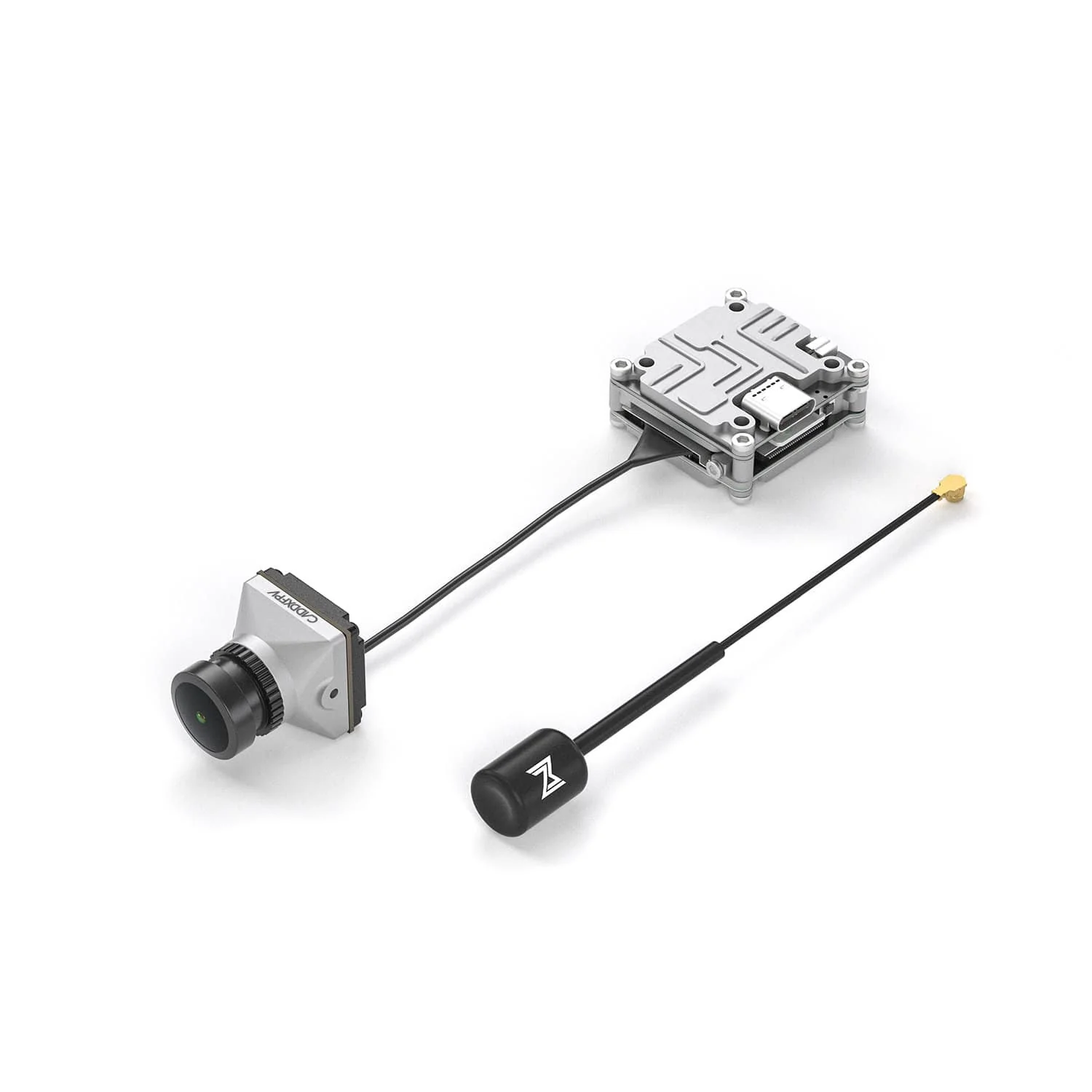

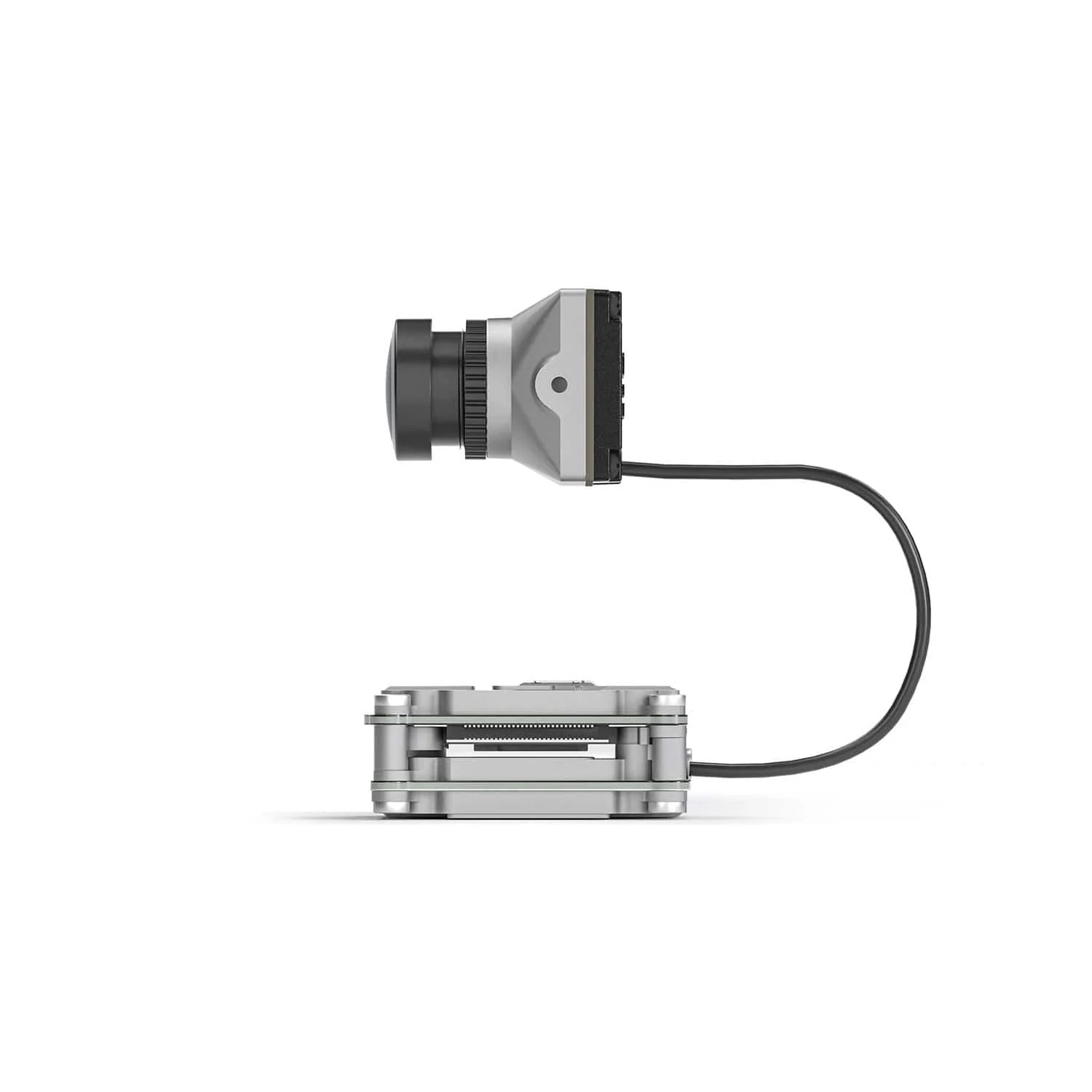

The Caddx Polar Vista Kit (Silver) delivers a revolutionary digital FPV experience, excelling in low-light conditions. This lightweight combo (camera 9g, total kit ~28g) offers crisp 720p/60fps HD video with low latency (within 32ms). Fully compatible with DJI FPV Goggles, it provides a stable HD video link up to 4km, ideal for night flying, cinematic FPV, and pilots demanding clear visuals in challenging lighting.
Product Details
Features:
- Exceptional low-light performance (Starlight Sensor).
- Lightweight (Total kit approx. 28g).
- High resolution 720p at 60fps.
- Low latency HD image transmission (within 32ms end-to-end).
- Large 1/1.8-inch HD Digital Starlight CMOS Sensor.
- Wide 162° diagonal field of view (FOV).
- Micro-sized camera (24x19x19mm) for versatile builds.
- Minimal illumination: 0.00003Lux.
- Works seamlessly with DJI FPV Goggles (V1/V2).
- Adjustable power output (25mW to 700mW).
Technical Specifications:
- MODEL: Polar vista kit
- Weight: Vista Kit(camera included): 28g, Antenna: 1.5g
- Dimensions: Vista Kit: 30x29x13mm, Camera: 19x19x24mm, Coaxial Cable: 120mm
- Operating Frequency: 5.725-5.850GHz
- Transmitter Power(EIRP): FCC/SRRC/MIC: <30dBm, CE: <14dBm
- Min.latency(end-to-end): 720p 60fps: <32ms
- Max.Transmission Distance: FCC/SRRC: 4km, CE: 0.7km
- I/O Interface: USB-C, IPEX, 3-in-1port
- Supported Flight control System: F3.F4.F7
- Operating Temperature Range: 32° to 104°F (0° to 40°C)
- Input Power: 7.4-26.4V
- Power Output: 25mW/200mW/500mW/700mW
- Hardware Included: Polar vista kit /m2 screw/Gasket Ring Menu cable/3-in-1 cable/coaxial-cable/antenna
- Goggles: Work with DJI goggles
- Camera: Sensor: 1/1.8" starlight cmos, Min. Illumination: 0.00003Lux, Lens: F/1.6 & 8 Mega, Shutter: Rolling shutter, ISO: 100-25600, FOV: 162°(D);138°(H);75°(V), Aspect Ratio: 16:9
Additional Details:
- Manufacturer: CaddxFPV
- Brand: Caddx
- Generic Name: Digital FPV System || FPV Video Transmitter || Drone Camera & VTX Combo || Digital FPV Kit || HD FPV System || DJI Compatible FPV || Video Transmission Module || FPV Air Unit || Mini FPV System || Micro FPV System
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: 5-inch FPV Drones || Freestyle FPV Flying || Cinematic FPV || Flying in Low-Light Conditions || Night FPV || DJI Digital FPV Goggles Users || Custom Drone Builds where low-light performance is critical || Pilots requiring clear visuals in challenging lighting.

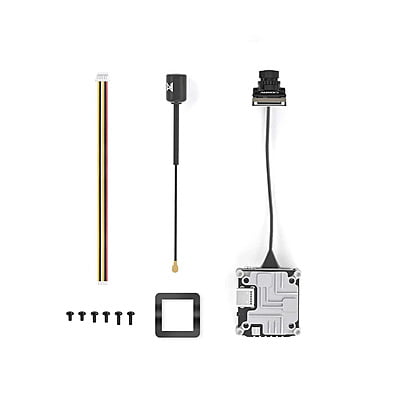

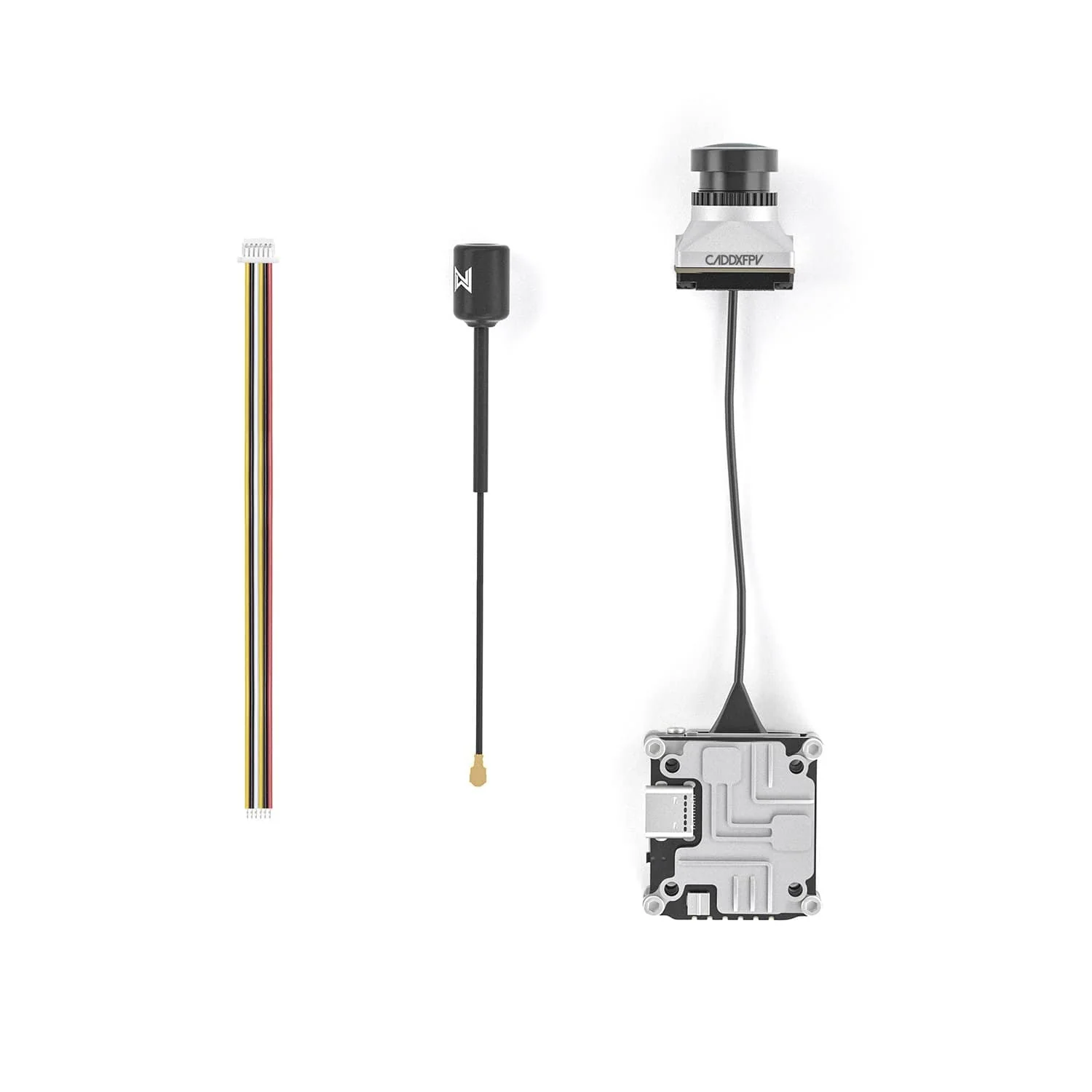

Package Details:
Includes:
- 1 x Caddx Polar vista kit
- 1 x Menu Cable
- 1 x 3-in-1 Cable (for connecting to FC)
- 6 x M2 Screws (various lengths like 3/4/5mm)
- 4 x Gasket Rings (for mounting)
Frequently Asked Questions:
Q1. What is the main advantage of the Caddx Polar Vista Kit (Silver) for FPV drone pilots?
Ans. Its primary advantage is its exceptional low-light performance due to the 1/1.8-inch starlight sensor, allowing pilots to fly with clear HD visuals even in very dim conditions, combined with its lightweight design (total ~28g).
Q2. Which FPV goggles are compatible with the Caddx Polar Vista Kit (Silver)?
Ans. This kit is fully authorized by DJI and designed for seamless compatibility with DJI FPV Goggles (both V1 and V2 models) for a digital high-definition FPV experience.
Q3. Can the Caddx Polar Vista Kit transmit high-quality video over long distances?
Ans. Yes, the Vista VTX in this kit can transmit 720p HD video up to 4km (FCC/SRRC), providing a stable and clear digital video link for extended flights.
