CADDX Polar Nano Vista Kit FPV Camera
₹13,499.00
Out of stock

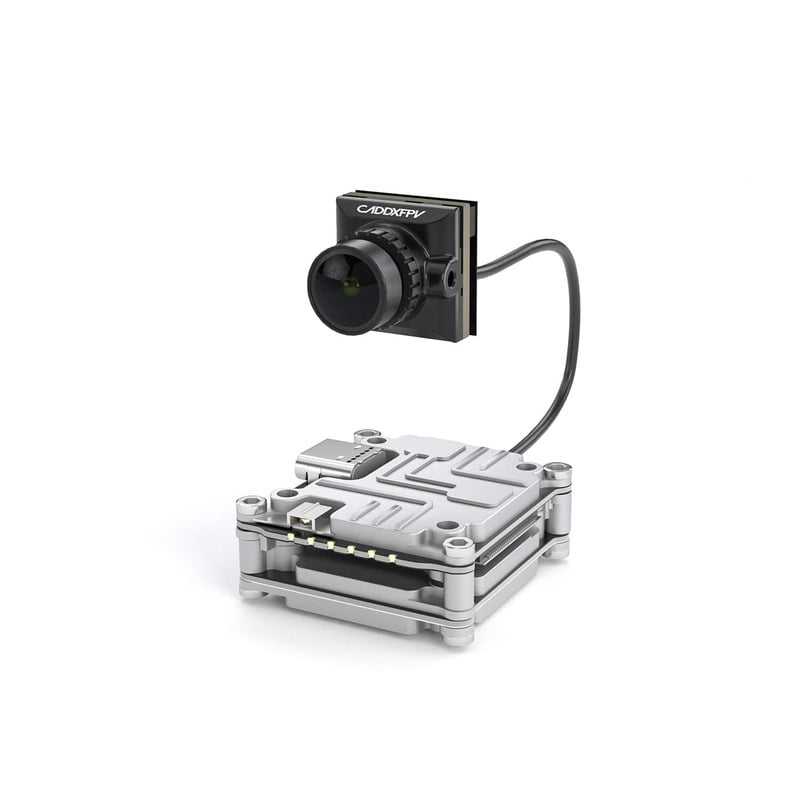

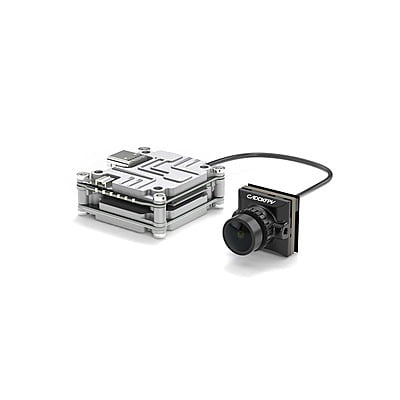

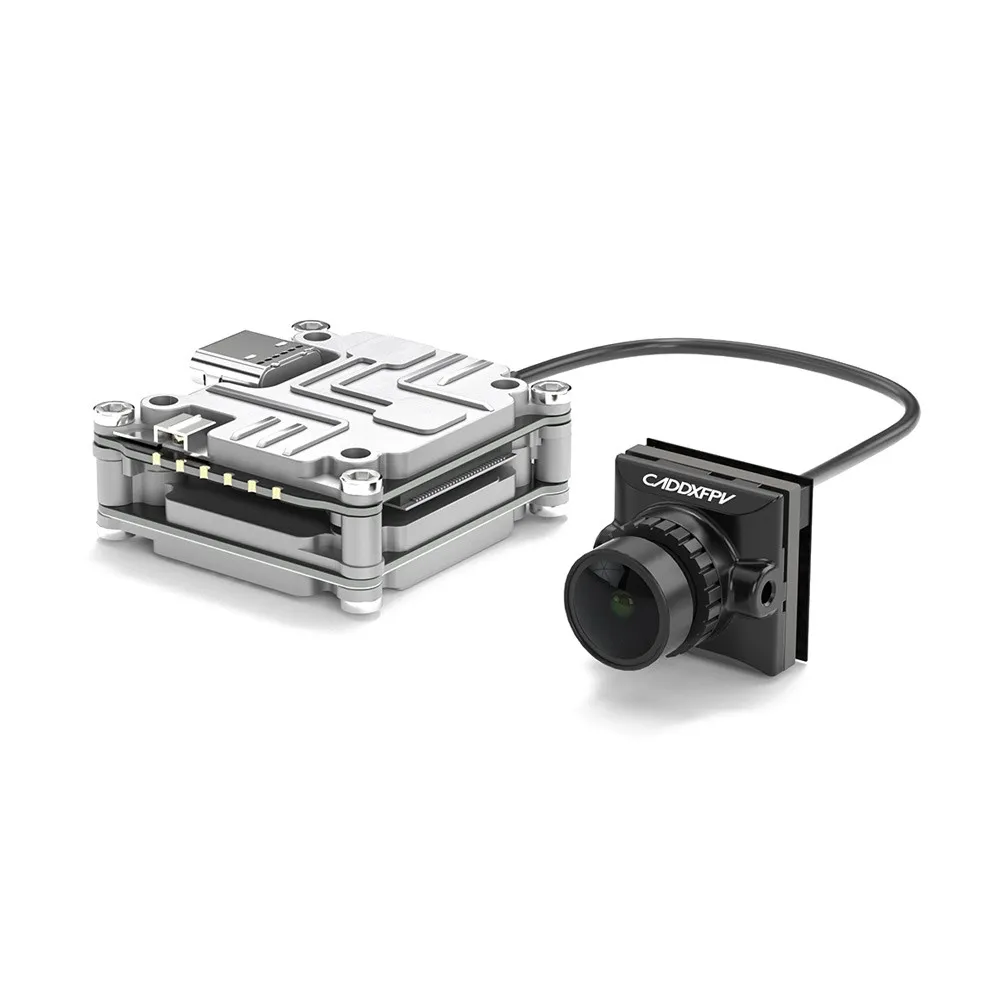

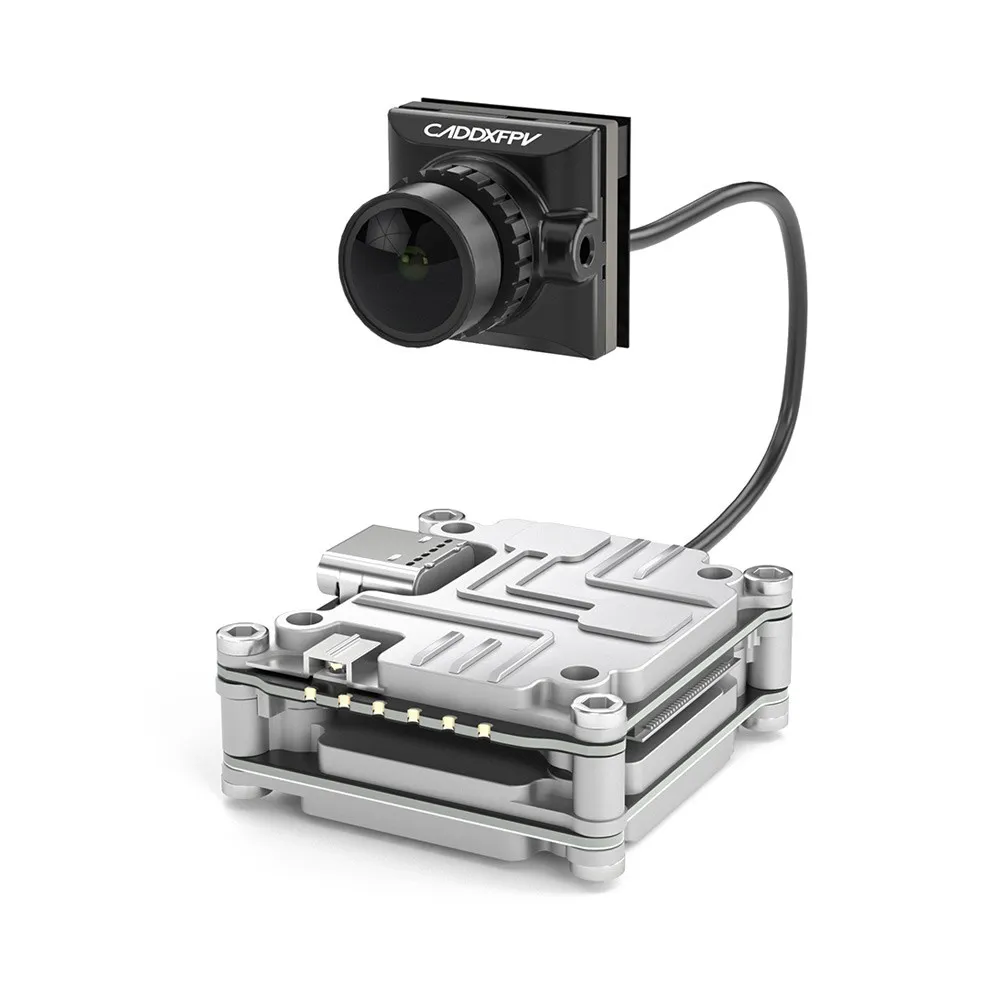

The Caddx Polar Nano Vista Kit delivers a revolutionary digital FPV experience, excelling in low-light conditions. This ultra-light combo (camera 2.7g, VTX 22g total) offers crisp 720p/60fps HD video with low latency (<32ms). Fully compatible with DJI FPV Goggles, it provides a stable HD video link up to 4km, ideal for night flying, micro builds, and pilots demanding clear visuals in challenging lighting.
Product Details
Features:
- Exceptional low-light performance (Starlight Sensor).
- Ultra-lightweight: Camera (2.7g), Vista VTX (22g total).
- High resolution 720p at 60fps.
- Super low latency ( <32ms end-to-end).

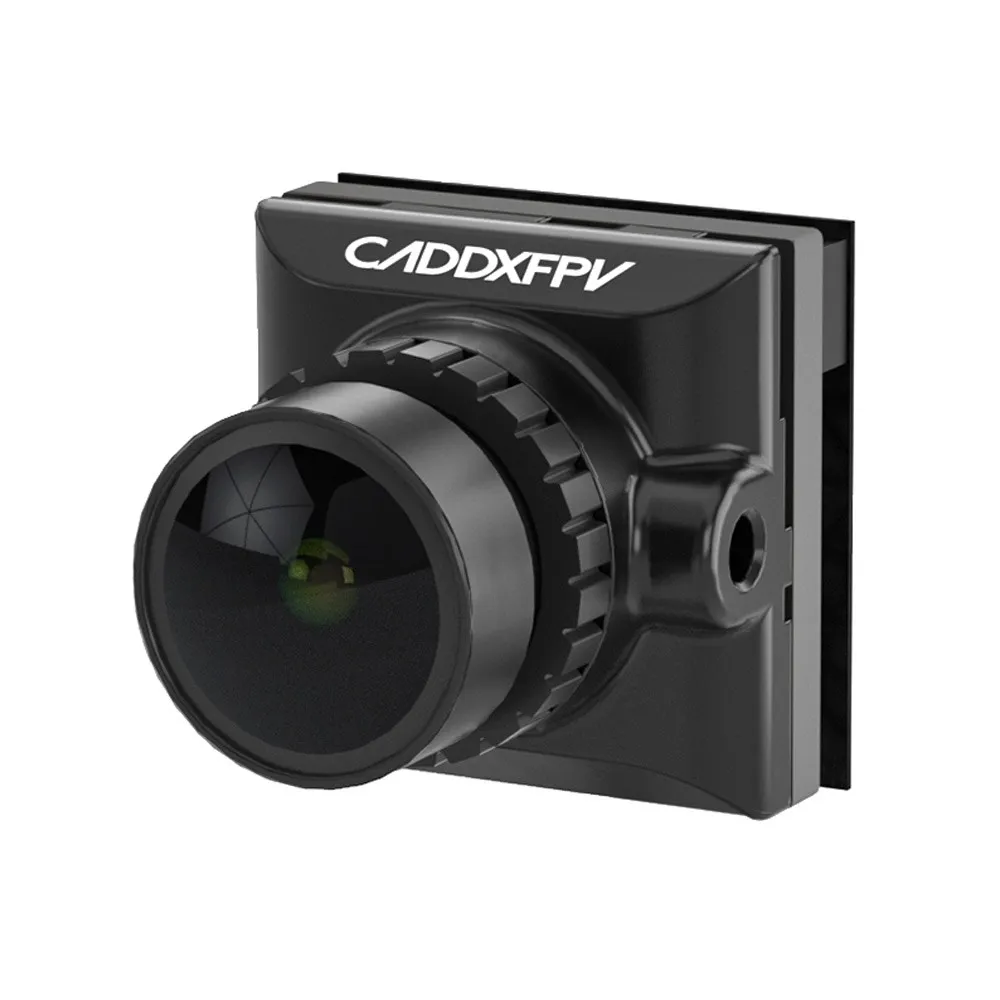

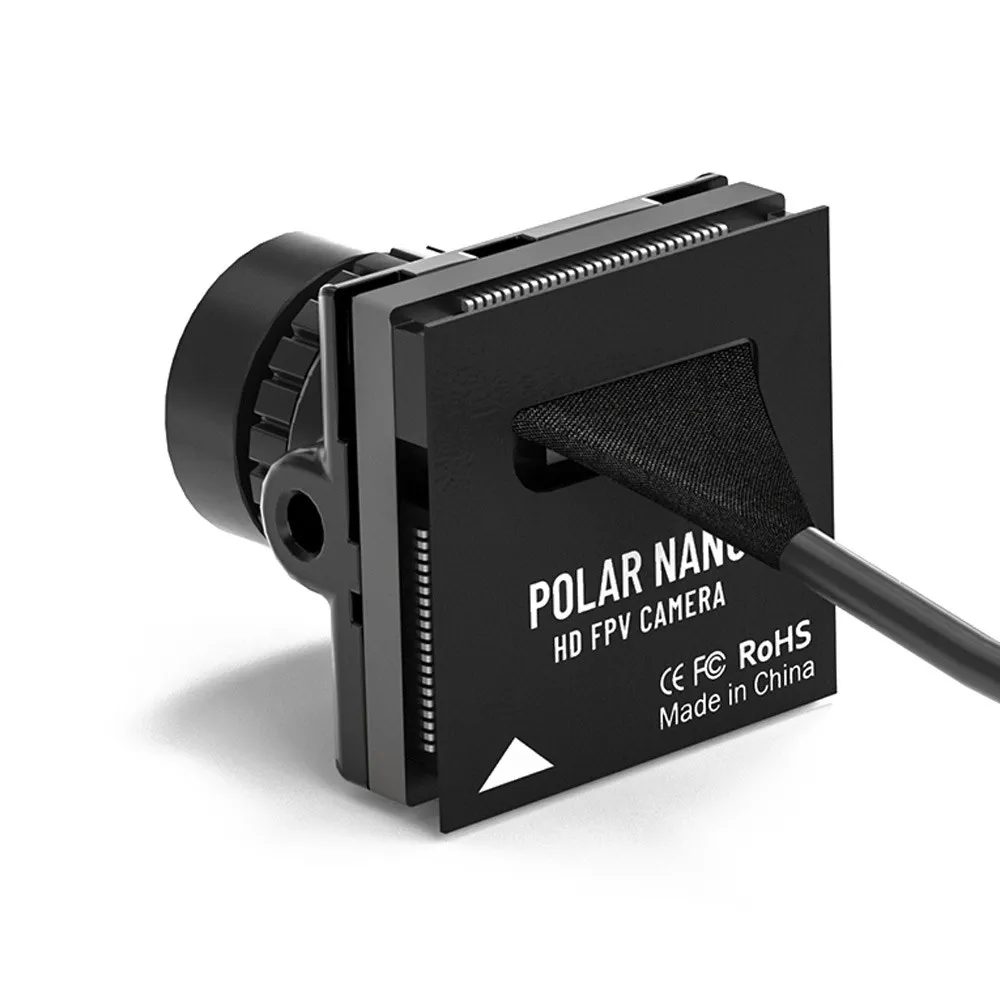

- Large 1/1.8-inch HD Digital Starlight CMOS Sensor.
- Wide 162° diagonal field of view (FOV).
- Nano-sized camera (14x14mm) for compact builds.
- Minimal illumination: 0.00003Lux.
- Works seamlessly with DJI FPV Goggles (V1/V2).
- Adjustable power output (25mW to 700mW).
Technical Specifications:
- Model: Polar nano vista kit
- Weight: Vista Kit (camera included): 22g, Antenna: 1.5g
- Dimensions: Vista Kit: 30x29x13mm, Camera: 14x14x15.8mm, Coaxial Cable: 80mm
- Operating Frequency: 5.725-5.850GHz
- Transmitter Power (EIRP): FCC/SRRC/MIC: <30dBm, CE: <14dBm
- Min.latency (end-to-end): 720p 60fps: <32ms
- Max.Transmission Distance: FCC/SRRC: 4km, CE: 0.7km
- I/O Interface: USB-C, IPEX, 3-in-1 port
- Supported Flight control System: F3.F4.F7
- Operating Temperature Range: 32° to 104°F (0° to 40°C)
- Input Power: 7.4-26.4V
- Power Output: 25mW/200mW/500mW/700mW
- Hardware Included: Polar nano vista kit /m2 screw/ bracket/3-in-1 cable/antenna
- Goggles: Work with DJI goggles
- Camera: Sensor: 1/1.8" inch starlight cmos, Min. Illumination: 0.00003Lux, Lens: F/1.8, Shutter: Rolling shutter, ISO: 100-25600, FOV: 162°(D);138°(H);75°(V), Aspect Ratio: 16:9
Additional Details:
- Manufacturer: CaddxFPV
- Brand: Caddx
- Generic Name: Digital FPV System || FPV Video Transmitter || Drone Camera & VTX Combo || Digital FPV Kit || HD FPV System || DJI Compatible FPV || Video Transmission Module || FPV Air Unit || Mini FPV System || Micro FPV System
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: Micro FPV Drones || Nano FPV Builds || Toothpick Drones || Flying in Low-Light Conditions || Night FPV || Cinematic FPV (where low light is critical) || DJI Digital FPV Goggles Users || Custom Drone Builds where weight and size are critical || Pilots requiring clear visuals in challenging lighting.

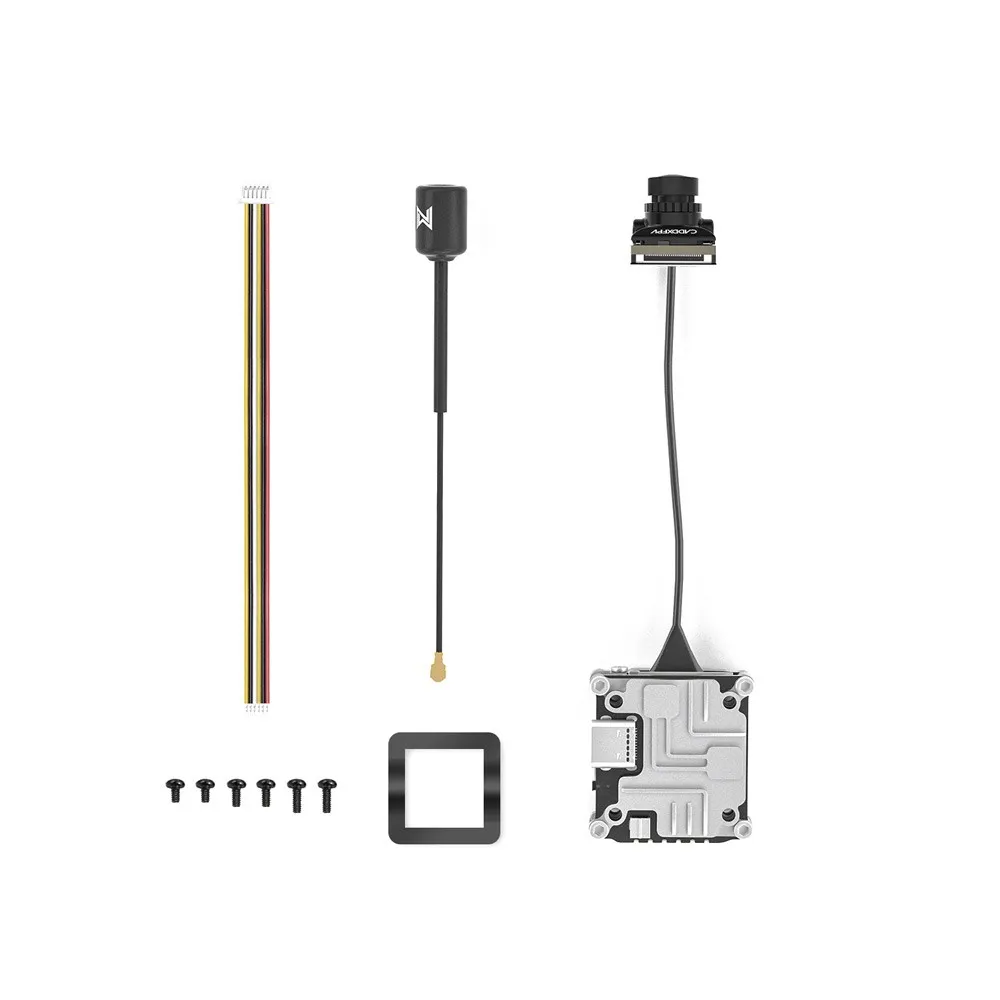

Package Details:
Includes:
- Polar nano vista kit: × 1
- M2 screws 3/4/5mm: × 2
- 3-in-1 cable: × 1
- 14mm-19mm bracket: × 1
Frequently Asked Questions:
Q1. What is the main advantage of the Caddx Polar Nano Vista Kit for FPV drone pilots?
Ans. The primary advantage is its exceptional low-light performance due to the 1/1.8-inch starlight sensor, allowing pilots to fly with clear HD visuals even in near darkness, combined with its ultra-lightweight design (total 22g).
Q2. Which FPV goggles are compatible with the Caddx Polar Nano Vista Kit?
Ans. This kit is fully authorized by DJI and designed for seamless compatibility with DJI FPV Goggles (both V1 and V2 models) for a digital high-definition FPV experience.
Q3. Can the Caddx Polar Nano Vista Kit transmit high-quality video over long distances?
Ans. Yes, the Vista VTX in this kit can transmit 720p HD video up to 4km (FCC/SRRC), providing a stable and clear digital video link for extended flights.
