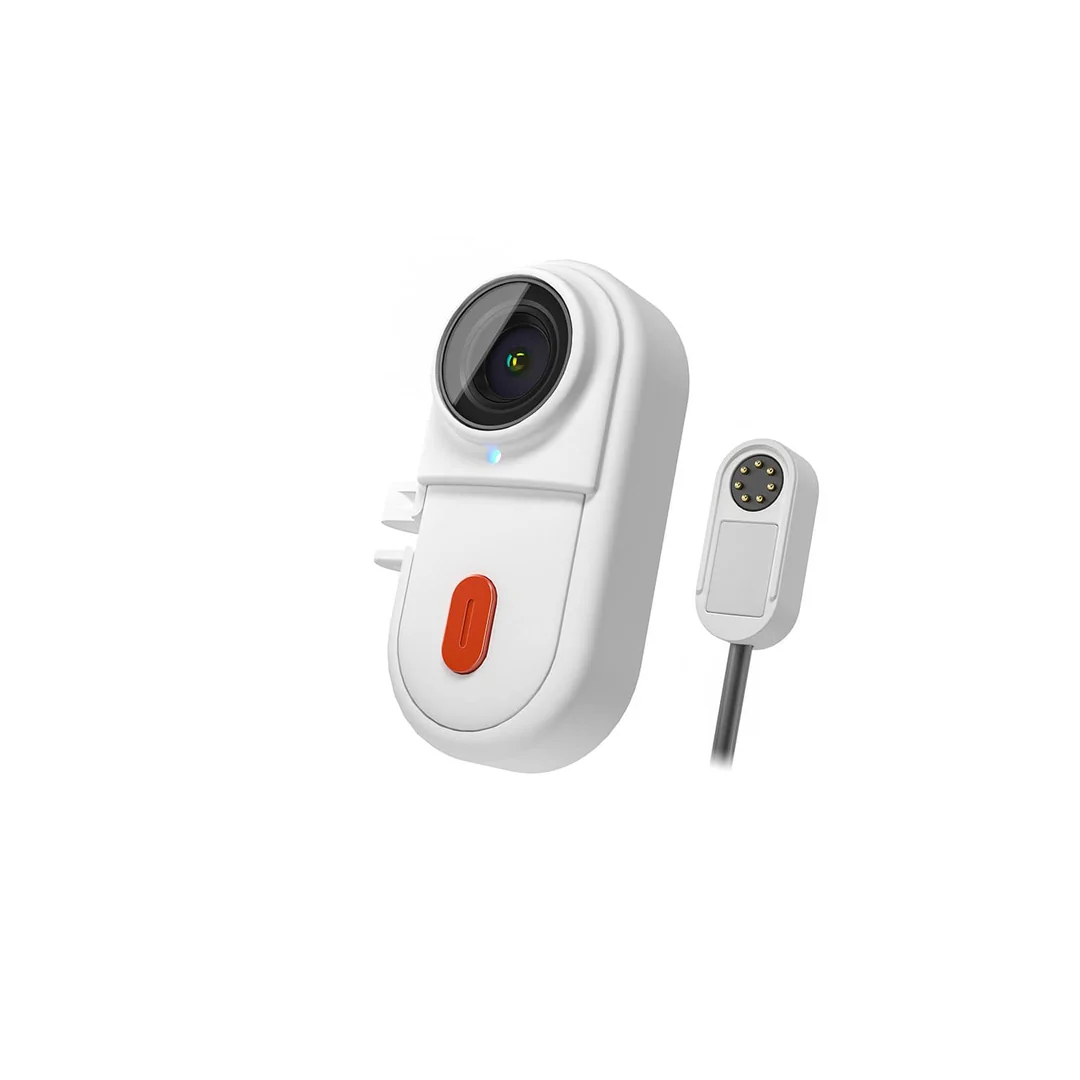

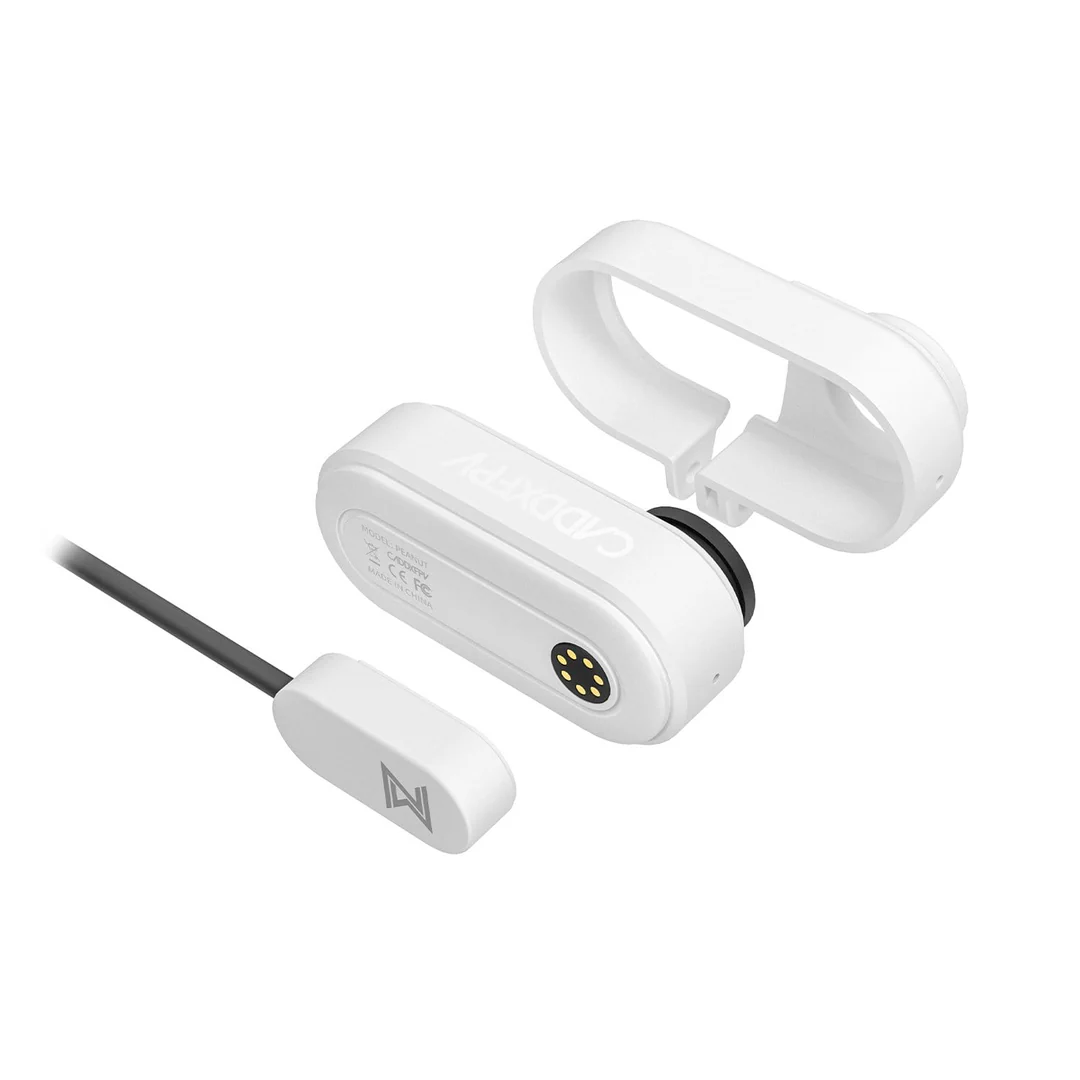

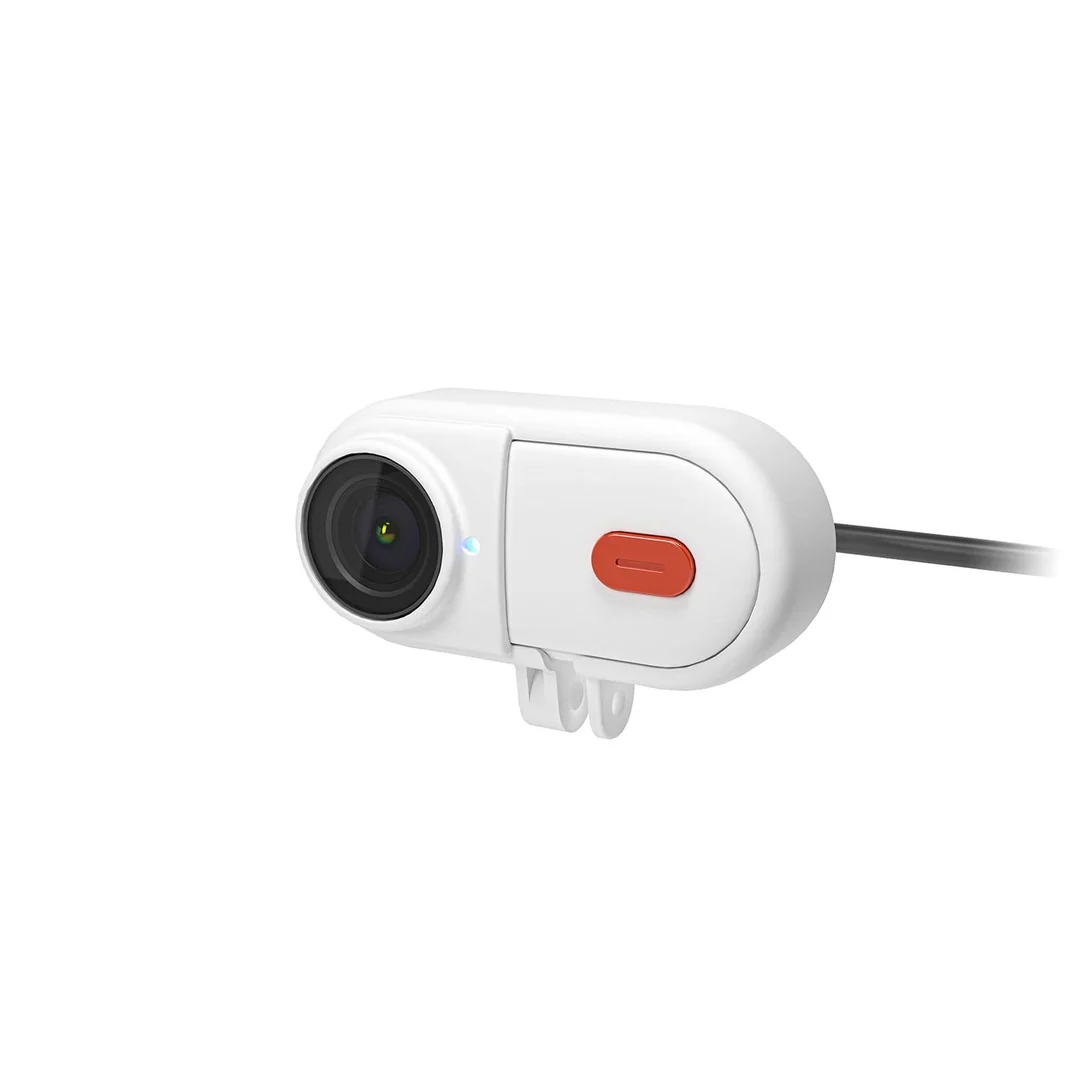

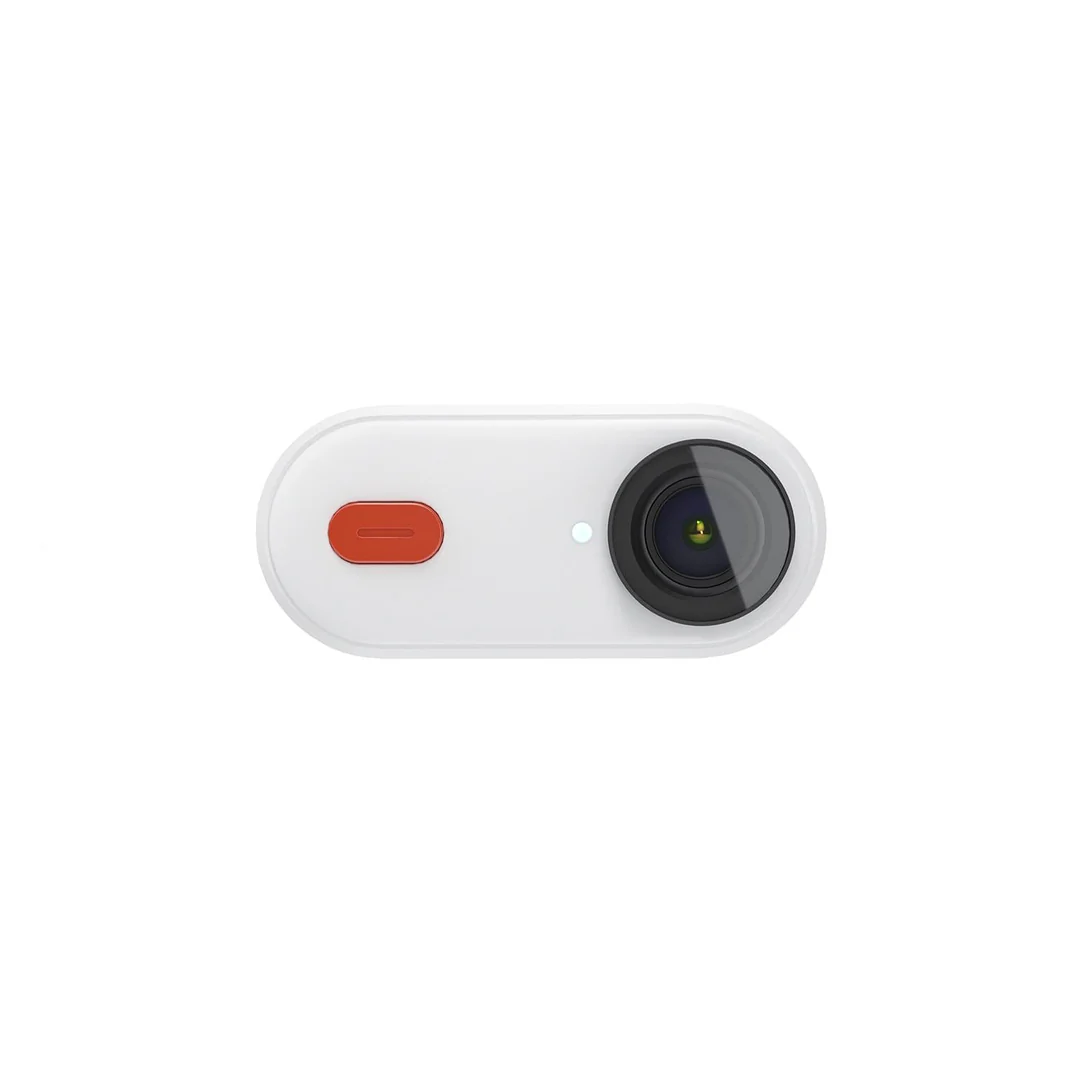

CADDX Peanut Action Camera
CADDX Peanut Action Camera
CADDX Peanut Action Camera
CADDX Peanut Action Camera
CADDX Peanut Action Camera
CADDX Peanut Action Camera

CADDX Peanut Action Camera

₹22,109.00 ₹42,499.00

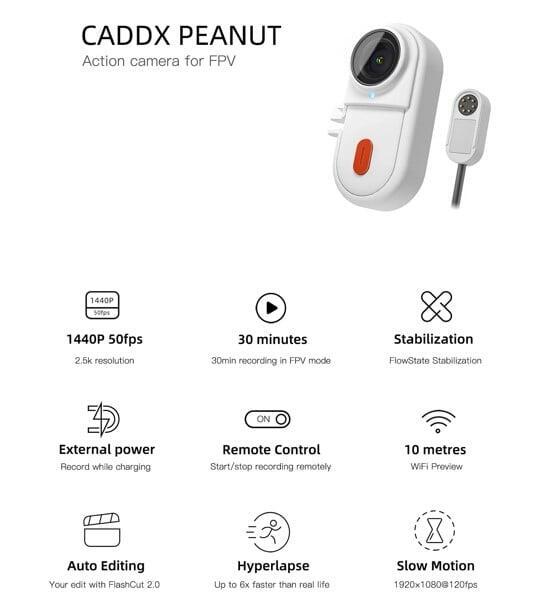

The Caddx Peanut is an ultra-light (27g) action camera, co-developed with Insta360, designed specifically for FPV drones. It records stabilized 2.5K/50fps footage with FlowState stabilization. With external power capability and remote control via flight controller, it's ideal for capturing cinematic FPV footage without worrying about battery life or complicated setups.
Choose Quantity
+ Add to Cart
Product Details
Features:

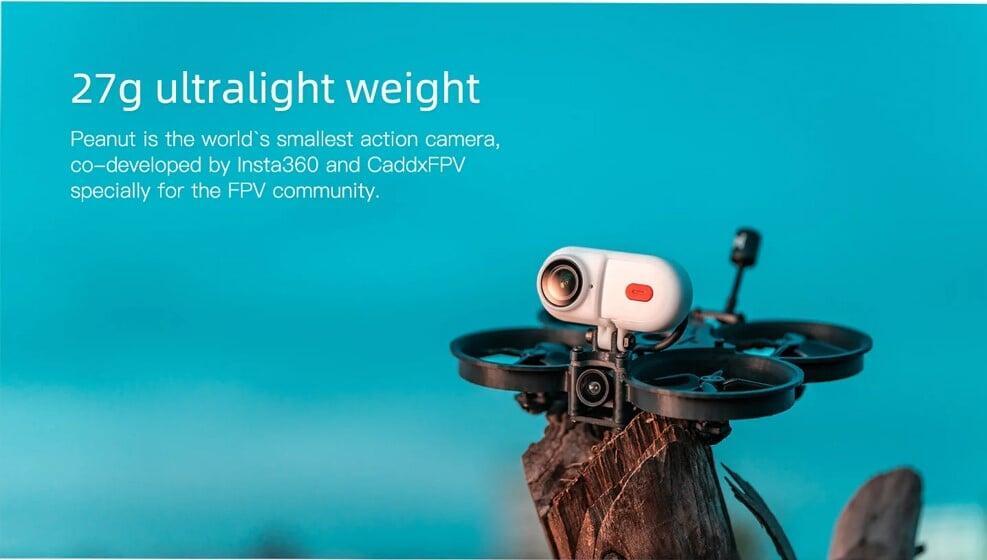

  • Ultra-lightweight at 27 grams.
  • Records up to 2.5K resolution at 50fps.
  • Features FlowState Stabilization for super-smooth video.
  • Co-developed by Insta360 and CaddxFPV.
  • Supports external 5V power supply.
  • Remote control (start/stop) via flight controller (UART).
  • Built-in battery for up to 30 minutes recording.

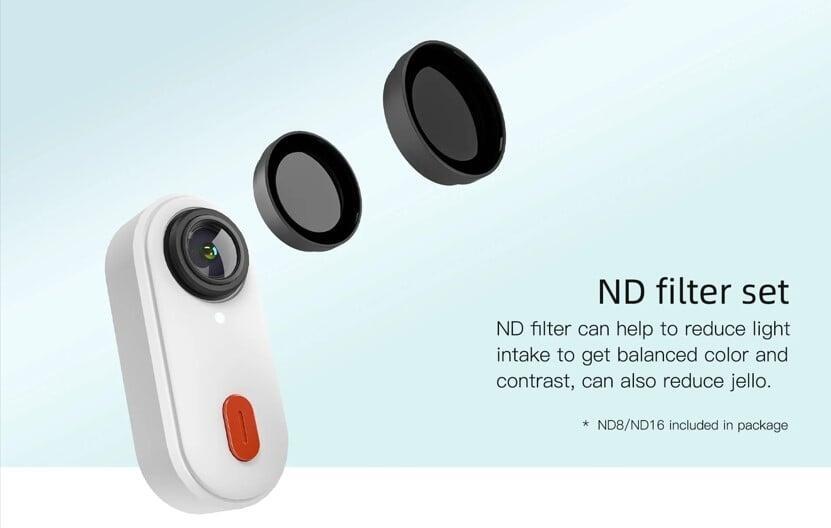

  • Includes ND8 and ND16 filters.
  • Wi-Fi control via Insta360 app for preview/settings.

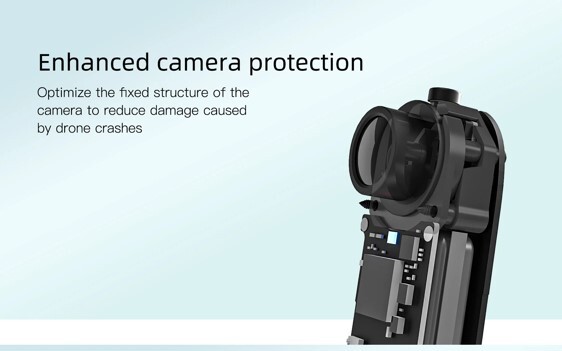

  • Durable shell optimized for drone crashes.

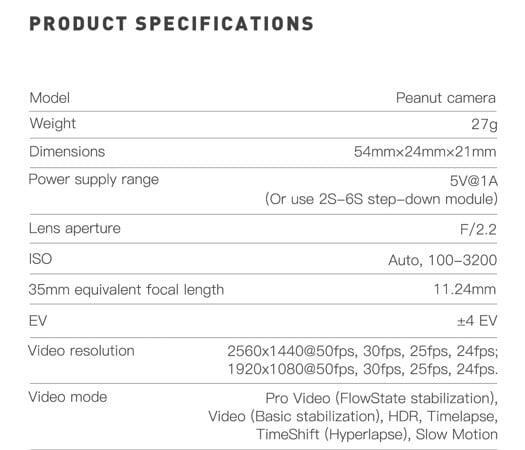

Technical Specifications:

  • Model: Peanut camera
  • Weight: 27g
  • Dimensions: 54mm x 24mm x 21mm
  • Power supply range: 5V@1A (Or use 2S-6S step-down module)
  • Lens aperture: F/2.2
  • ISO: Auto, 100-3200
  • 35mm equivalent focal length: 11.24mm
  • EV: ±4 EV
  • Video resolution: 2560x1440@50fps, 30fps, 25fps, 24fps; 1920x1080@50fps, 30fps, 25fps, 24fps.
  • Video mode: Pro Video (FlowState stabilization), Video (Basic stabilization), HDR, Timelapse, TimeShift (Hyperlapse), Slow Motion

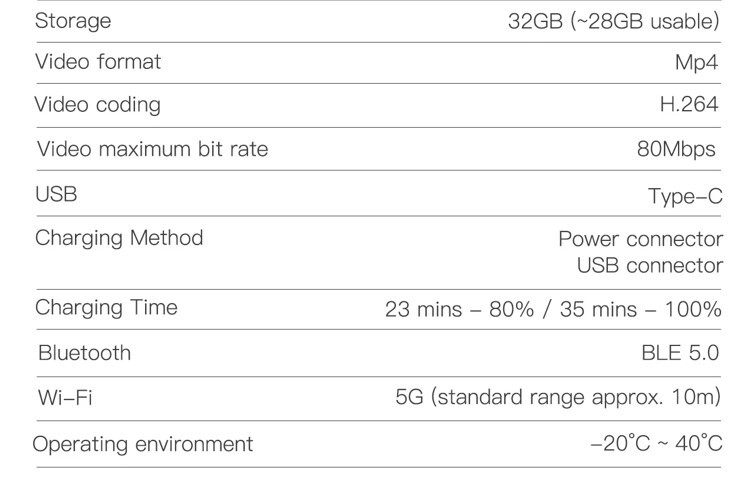

  • Storage: 32GB (~28GB usable)
  • Video format: Mp4
  • Video coding: H.264
  • Video maximum bit rate: 80Mbps
  • USB: Type-C
  • Charging Method: Power connector, USB connector
  • Charging Time: 23 mins – 80% / 35 mins – 100%
  • Bluetooth: BLE 5.0
  • Wi-Fi: 5G (standard range approx. 10m)
  • Operating environment: -20°C ~ 40°C

Additional Details:

  • Manufacturer: CaddxFPV (co-developed with Insta360)
  • Brand: Caddx
  • Generic Name: Action Camera || FPV Camera || Drone Camera || Mini Action Cam || Stabilized Camera || HD Camera || Remote Control Camera || Lightweight Camera || Video Camera || Drone Recording Camera
  • Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
  • Ideal For: FPV Racing Drones || Freestyle FPV Drones || Cinewhoops || Sub-250g Drones || Smaller FPV Builds || Professional Cinematic FPV || Recording Onboard Drone Footage || Pilots wanting smooth, stabilized HD video without a full-size GoPro.

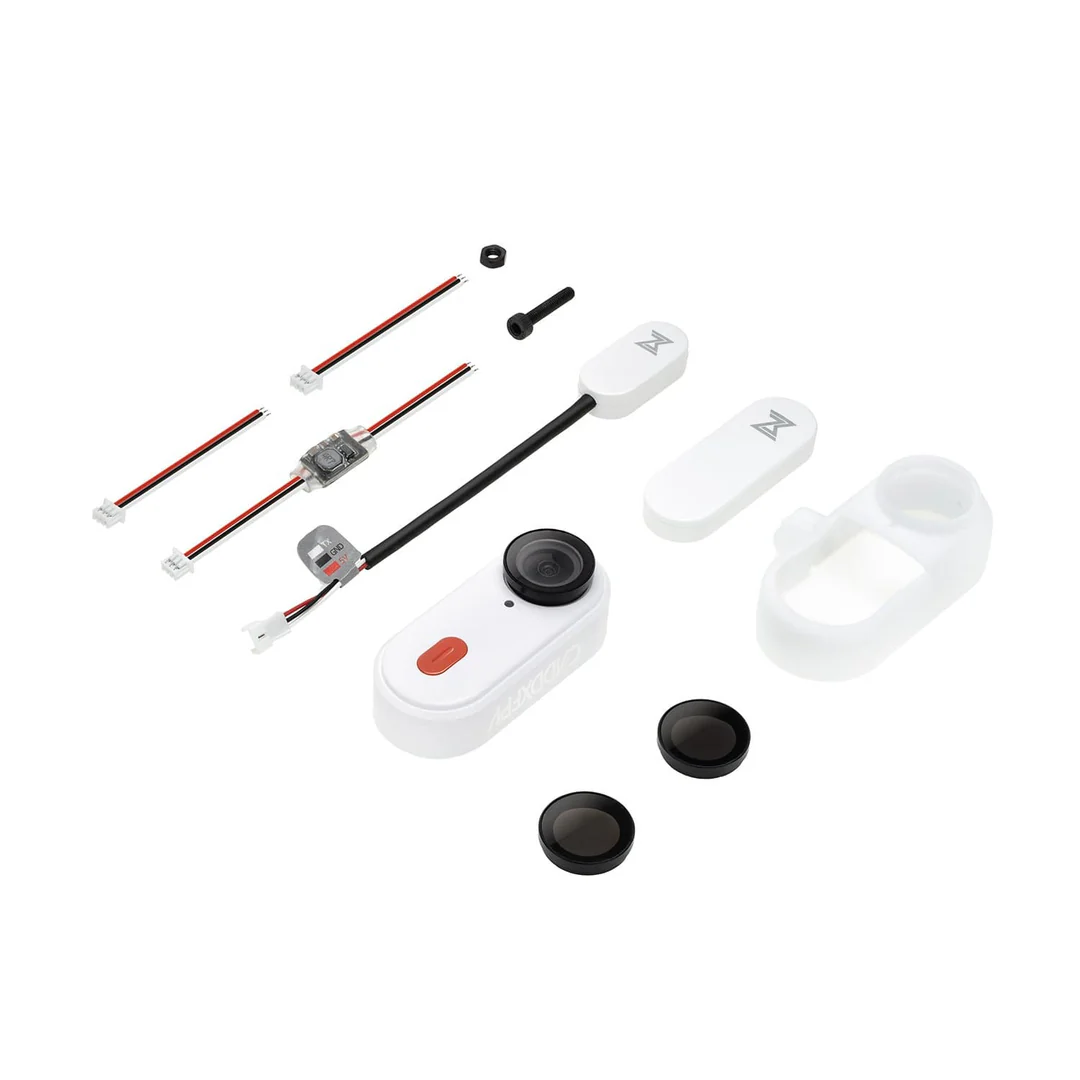

Package Details:

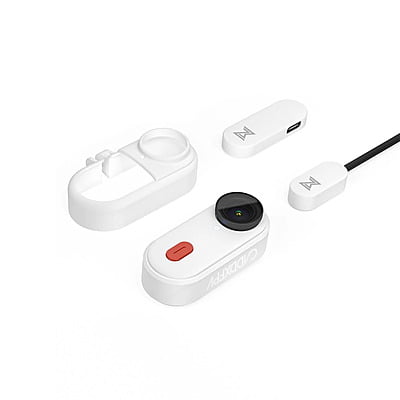

Includes:
  • 1 * Peanut Camera

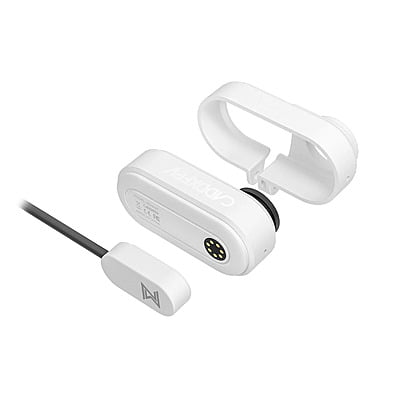

  • 1 * Mount Adapter
  • 1 * Power connector
  • 1 * USB connector
  • 2 * Mx1.25 3-Pin Power Cable
  • 1 * 2S-6S Step-down Module
  • 1 * ND 8 Filter
  • 1 * ND16 Filter
  • 1 * Pack of Camera Mounting Screws and Nuts
  • 1 * User Manual
  • 1 * Wiping cloth

Frequently Asked Questions:

Q1. What is the primary advantage of the Caddx Peanut for FPV drone pilots?
Ans. The Caddx Peanut's ultra-lightweight design (27g), combined with Insta360's FlowState Stabilization and the ability to be powered externally (from the flight controller), makes it perfect for capturing smooth, cinematic 2.5K footage without significantly impacting drone flight performance or worrying about battery life.

Q2. Can the recording on the Caddx Peanut be controlled remotely from an FPV transmitter?
Ans. Yes, the Peanut camera can be connected to the flight controller (via UART) to enable remote control of power on/off and start/stop recording via an auxiliary switch on your FPV radio transmitter.

Q3. Does the Caddx Peanut use an SD card for storage, and what is its recording time limit?
Ans. No, the Caddx Peanut has 32GB of internal storage (~28GB usable) and does not use an SD card. It can record up to 30 minutes of footage in FlowState stabilization mode with its built-in battery or when externally powered, limited by internal memory.
