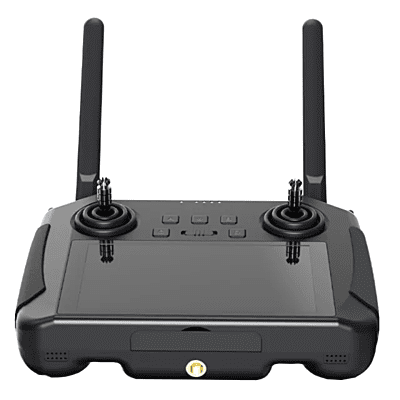

SIYI MK15E Agriculture Combo Remote Controller

Overall

Model: MK15E
Max Transmission Range: 5 kilometers (unobstructed, free of interference)
Agriculture Control Range: 2.5 kilometers (flying at 3-meter's altitude)
Channels: 13 physical channels, 16 communication channels
Compatible Agriculture Flight Controllers:
- BOYING Paladin V2
- JIYI K++ V2 / K3A Pro
- VK V7AG
- Pixhawk / APM based flight controllers
Compatible Enterprise Flight Controllers:
- JIYI KX
Compatible Pixhawk Based Flight Controllers:
-
Compatible Android GCS (standard RTSP video stream):
- QGround Control
- JIYI IFLY / Agri-Assistant
- BOYING Agriculture
- VK V7 Pro
Compatible Windows GCS (standard RTSP video stream):
- Mission Planner

___________________________________________________________________________________________________________________________________________________________________________________________________________________________________

SPECIFICATION:

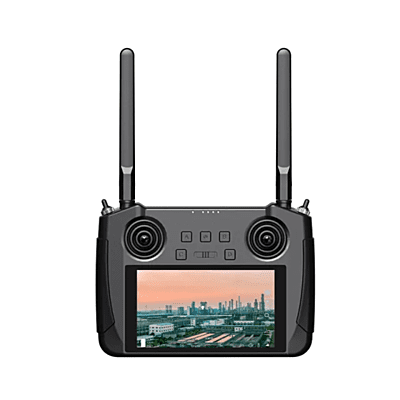

Remote Controller

Monitor: 5.5-inch High Definition and High Brightness LCD Touchscreen
System: Android 9.0 OS, 2 G RAM & 16 G ROM
Dimension (antenna overlapped): 189 x 138 x 41 mm
Weight: 850 g
Battery Capacity & Type: 10200 mAh 7.4 V 2S Li-ion, 75.48 Wh
Fast Charging Protocol: PD 30W
Battery Life: 15 hours
Interface & Ports:
- Charging: Type-C
- Firmware Upgrade: Bottom DATA (4-Pin)
- 4G/LTE Network: SIM Card Slot
- External Storage: TF Card Slot
- Tripod Connect: 1/4-inch Screw Hole
- Video Output: Standard HDMI
- External RTK: Top DATA (4-Pin)
- Data Transfer: USB-A
Waterproof Level: IP53
Working Temperature: -10 to 55℃

_______________________________________________________________________________________________________________________________________________________________________________________________________

Air Unit
Signal Output: 16 channels of S.BUS, 5 channels of PWM
Interface & Ports:
- SBUS: 3-Pin
- Datalink (to FC): UART 4-Pin
- PWM Channel 1 to 5: 6-Pin
- Video Input: Ethernet 8-Pin
- Firmware Upgrade: Type-C
Dimensions (antenna excluded): 75 x 48 x 17 mm
Weight (antenna excluded): 116 g
Antenna Gain (standard omni): 5 dBi
Power Input: 14.8 to 58.8 V (4S to 14S)
Working Temperature: -10 to 55℃

________________________________________________________________________________________________________________________________________________________________________________________________________

IP67 FPV Camera
Camera Angle: FOV 105°
Dimensions: 106 x 25 x 41 mm
Weight: 108 g
Searchlight Power Consumption: 8 W
Luminous Flux: 1 W / 120 to 140 lm
LED Type: Transparent
LED Angle: 120°
Waterproof Level: IP67
Working Temperature: -10 to 55℃

______________________________________________________________________________________________________________________________________________________________________________________________________
