VK V9-AG Agriculture Drone Flight Controller System
₹54,499.00 ₹62,499.00
The VK V9-AG is a next-generation flight controller engineered for agricultural spraying and spreading drones. Featuring an industrial-grade IMU (-25°C to 60°C), multi-constellation GNSS with RTK support, 100V power protection, and support for 4 pumps and dual flowmeters, it delivers unmatched flight precision and field stability.
Choose Quantity
Product Details
Features
- Industrial Temperature Range: Industrial-grade IMU operates reliably in extreme temperatures (-25°C to 60°C).
- High-Voltage Power Protection: Supports up to 100V input with overvoltage and overcurrent protection.
- Multi-Constellation Navigation: GNSS positioning performance is greatly improved, support GPS/GLONASS/BEIDOU three systems multi-frequency, positioning accuracy up to 1 meter.
- Comprehensive Spraying Interfaces: Controls up to 4 pumps, dual flowmeters, and dual level sensors.
- Advanced Vibration Suppression: Enhanced filtering algorithms ensure stable flight under heavy drone vibration.
Technical Details
- Input Voltage Range: 16V – 100V (4S – 24S LiPo battery systems)
- Hovering Accuracy: Horizontal: ±1m (Dual GNSS) / ±0.1m (RTK); Vertical: ±0.5m (Dual GNSS) / ±0.1m (RTK)
- Spraying System Expansion: 4× Pump Outputs, 2× Flowmeter Inputs, 2× Liquid Level Sensor Inputs
- Communication & Drive Options: PWM + CAN signal drives with high anti-interference performance

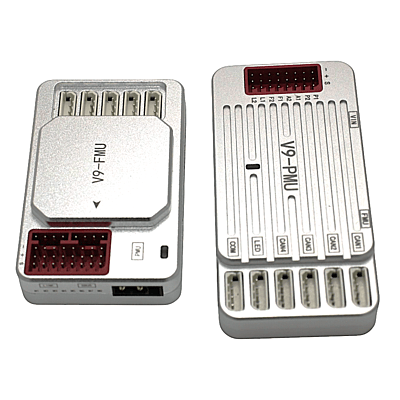

- Dimensions & Weight: FMU: 73×46×18.5mm (65g) | PMU: 88×44×15.5mm (80g)
- Flight Log Storage: Internal memory records up to 50 detailed flight logs for diagnostics
Additional Details
- Manufacturer: VK
- Brand: VK
- Generic Name: Agricultural Drone Flight Controller / UAV Autopilot
- Sold By: UAV Marketplace
- Ideal For: Agricultural spraying hexacopters/quadcopters, granular seed spreaders, orchard crop protection UAVs, and high-precision farming platforms.
Package Details

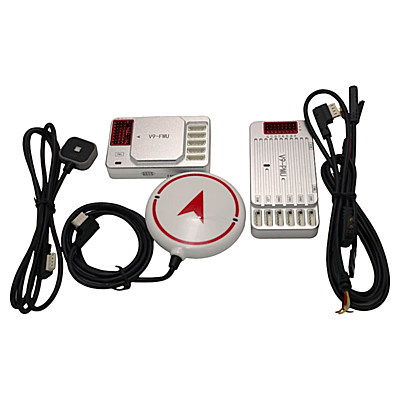

Package Contents:

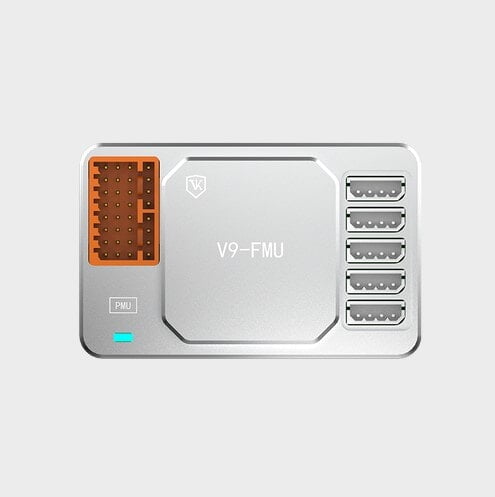

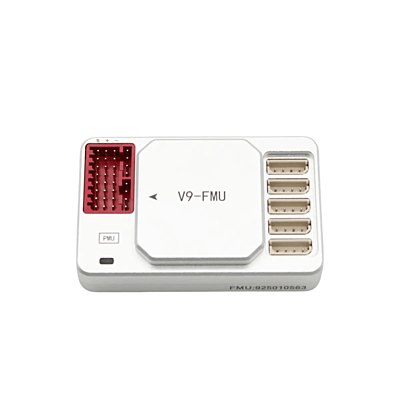

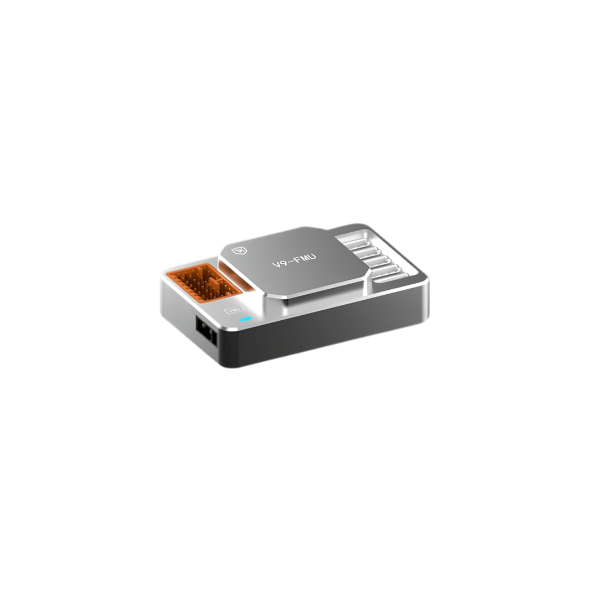

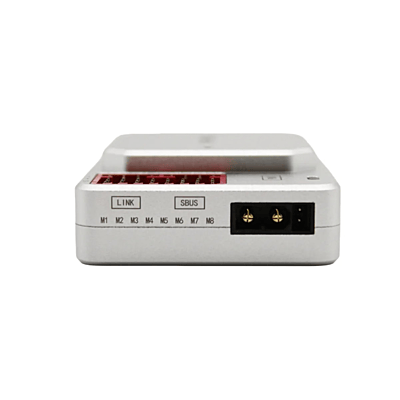

1 × VK V9-AG Flight Management Unit (FMU)

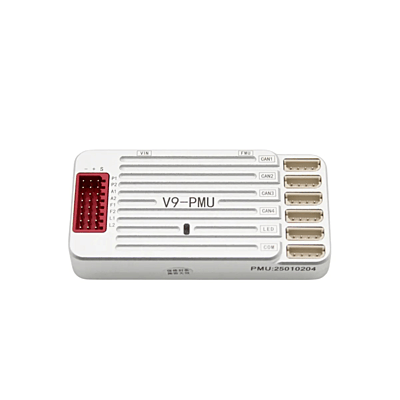

1 × Power Management Unit (PMU)

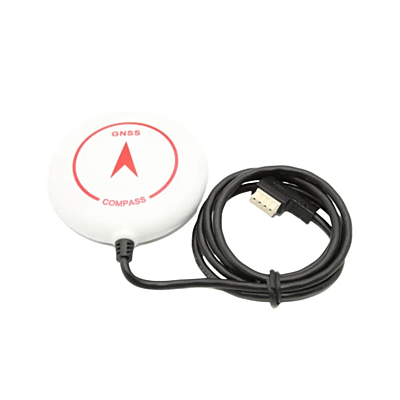

1 × High-Precision Dual GNSS Module with Antenna Mounts

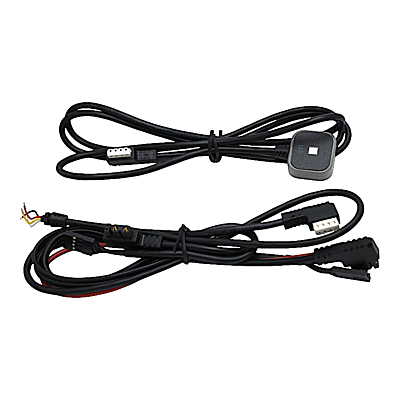

Complete interconnecting cable harness set
Quantity: 1 Full Flight Controller Set
Packaging Type: High-density foam lined industrial carton packaging (Gross Weight: ~0.85 kg)
FAQs
Q1: What input battery voltage does the VK V9-AG flight controller support?
A: It supports a wide operating input voltage range from 16V up to 100V (4S to 24S LiPo), featuring integrated surge and overcurrent protection.
Q2: How many pumps and flow meters can be controlled by the V9-AG?
A: The V9-AG native interface supports control for up to 4 water pumps, 2 flowmeters, and 2 liquid level sensors for automated variable-rate spraying.
Q3: Does the VK V9-AG support RTK differential positioning?
A: Yes, it supports dual GNSS and RTK differential positioning modules to achieve centimeter-level flight line accuracy and auto-navigation.
