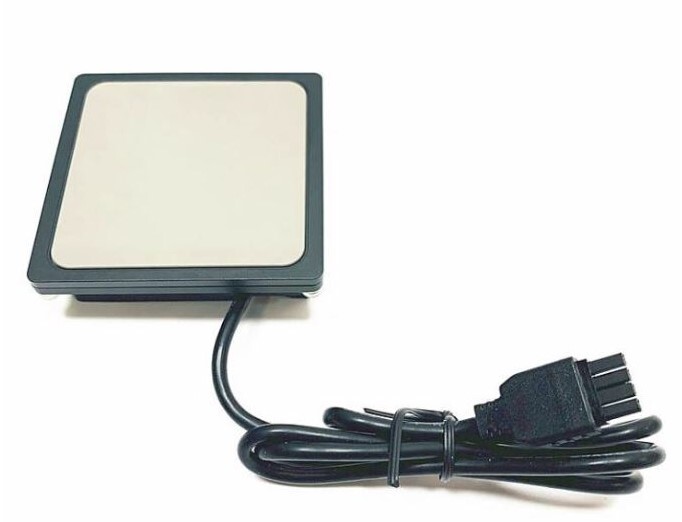

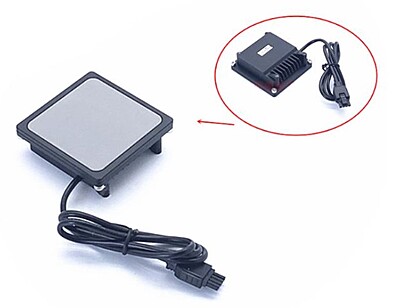

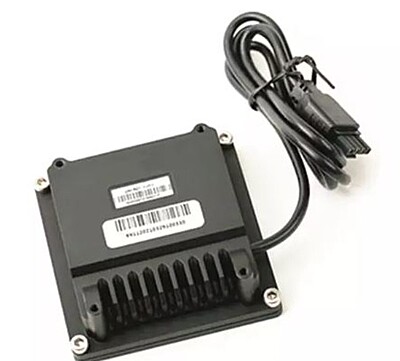

JIYI Obstacle avoidance back module
Key features:
Obstacle Avoidance Radar for K++, KX Flight Controller
This module is mainly used to measure the relative distance between the drone and the obstacle in front of the flight, so as to avoid the obstacle effectively
Obstacle Avoidance Radar adopts 24GHz radar technology
Description:-
JIYI Obstacle Avoidance Radar Module is mainly used to measure the relative distance between the drone and the obstacle in front of the flight, so as to avoid the obstacle effectively. Obstacle avoidance radar adopts 24GHz radar technology, which can work in all weather under strong light, high temperature, fog, dust, wind and night. Its sensitivity is high, the detection distance is long, the signal transmission is fast and stable. Electric wires, small trees with a trunk of 10 cm, people with a height of 1.7m, and telephone poles with a height of 15cm play an excellent obstacle avoidance function for high-speed drones, which is very suitable for plant protection drones to work in complex outdoor environments.
Specification:
Product Size: 67.5x66x16.5mm
Weight: 80g
Modulation Mode: FMCW
Center Frequency: 24.125GHz
Range: 1-25cm
Accuracy: 0.1m
Frequency: 40Hz
Power Consumption: 3W
Working Voltage: 9-28V
Protection level: IP 67
Output interface: CAN
Working Temperature: -20℃ to 85℃
