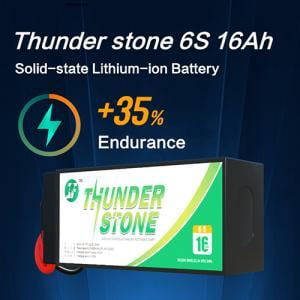

JF 16000mAh 22.2V 6S Solid State Lithium Battery

₹30,999.00
Out of stock

Introduction

Thunder Stone solid-state battery is a new generation Li-ion battery, and it can significantly increase the UAS endurance by 20-30% compared to traditional Lipo and li-ion batteries. The reason is that the solid-state batteries have a much higher energy density than conventional lipo and Li-ion batteries, which means that the solid-state battery can store more power under the same weight.

Product Details


Features

  • High quality, reliable power
  • Discharge interval of each cell: 2.7v to 4.2v
  • Stable discharge rate: 5C-10C
  • At least 300 times cycle life

Specification

Item6S 16000mAh6S 22000mAh6S 27000mAh6S 30000mAh
Weight1470g1920g2349g2570g
Cell Configuration6S1P / 22.2V / 6 cells
Continuous Discharge Rate5C
Max. Discharge Rate10C
Charge Rage1C
Cycle Life (5C)300 times
Energy355.2Wh488.4Wh599.4Wh666Wh
Energy Density241.6Wh/Kg254.3Wh/Kg255.1Wh/Kg259.1Wh/Kg
Size195*75*50mm195*75*65mm205*88*62mm207*90*67mm
Plug TypeXT90
Charge Temperature0
Discharge Temperature-20



Energy Density Comparison
Tattu Traditional Lipo Battery
Battery Type6S 16000mAh6S 22000mAh6S 30000mAh6S 32000mAh
Cell Configuration6S1P / 22.2V / 6 cells
Weight1932g2490g3610g3575g
Energy355.2Wh488.4Wh666Wh666Wh
Energy Density183.8Wh/Kg196.1Wh/Kg184.4Wh/Kg186.2Wh/Kg
Tattu High Voltage Lipo Battery
Battery Type6S 16000mAh6S 22000mAh6S 25000mAh6S 32000mAh
Cell Configuration6S1P / 22.8V / 6 cells
Weight1880g2360g2568g3575g
Energy364.8Wh501.6Wh570Wh729.6Wh
Energy Density194.0Wh/Kg212.5Wh/Kg221.9Wh/Kg204.0Wh/Kg
Thunder Stone Solid-state Li-ion Battery
Battery Type6S 16000mAh6S 22000mAh6S 27000mAh6S 30000mAh
Cell Configuration6S1P / 22.2V / 6 cells
Weight1470g1920g2349g2570g
Energy355.2Wh488.4Wh599.4Wh666Wh
Energy Density241.6Wh/Kg254.3Wh/Kg255.1Wh/Kg259.1Wh/Kg
