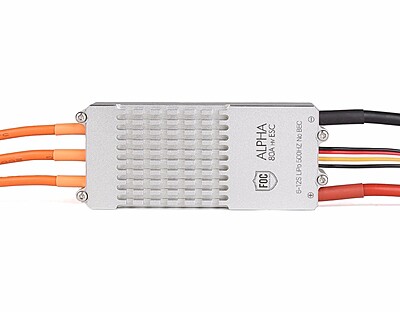

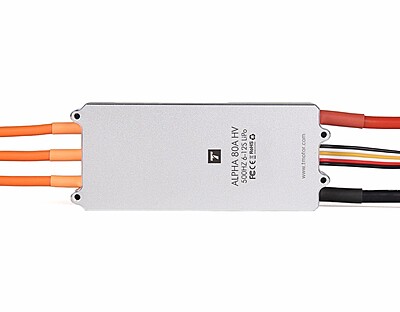

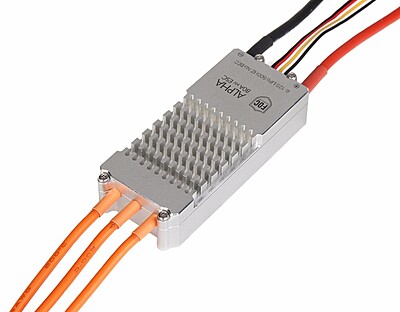

T-Motor ALPHA 80A 12S ESC
Features:
- Low Noise
- Temperature and Interference
- Fast Response
- High Efficiency
- For Compatibility
- Stand by consumption: ≤50mA
- Please Leave A Note of Motor Type
Description:
This is all down to a little device called an ESC, or (Electronic Speed Controller) This is what translates a pilot’s controls into precise instructions sent to the motors to control movement Electronic speed controllers (ESCs) are devices that allow drone flight controllers to control and adjust the speed of the aircraft’s electric motors. A signal from the flight controller causes the ESC to raise or lower the voltage to the motor as required, thus changing the speed of the propeller
An ESC or an Electronic Speed Controller controls the brushless motor movement or speed by activating the appropriate MOSFETs to create the rotating magnetic field so that the motor rotates. The higher the frequency or the quicker the ESC goes through the 6 intervals, the higher the speed of the motor will be,
Here, is the motor compatibility chart for this ESC,
Packages Includes:

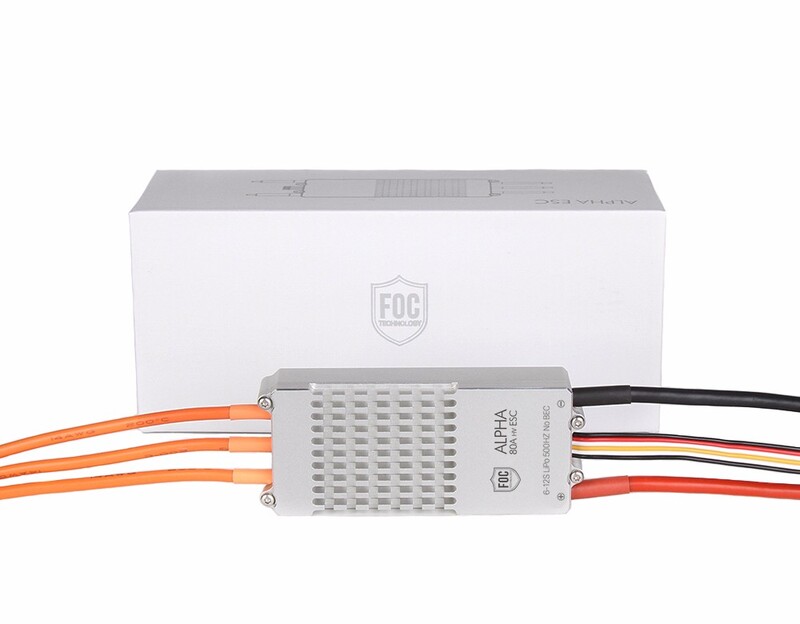

1 x T Motor ALPHA 80A 12S ESC
