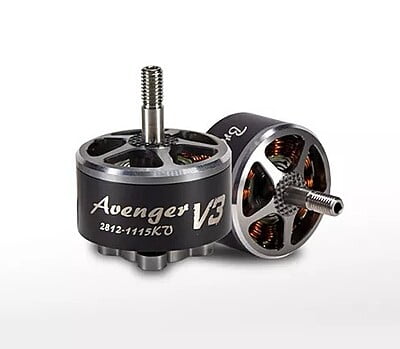

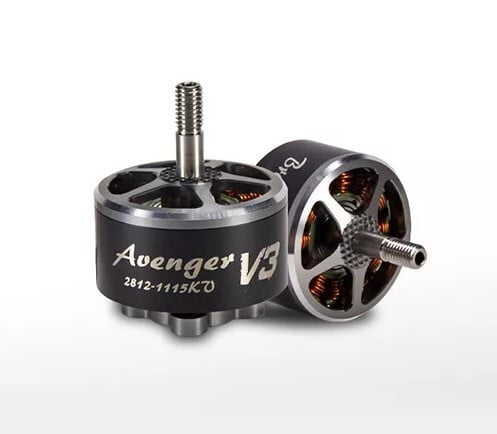

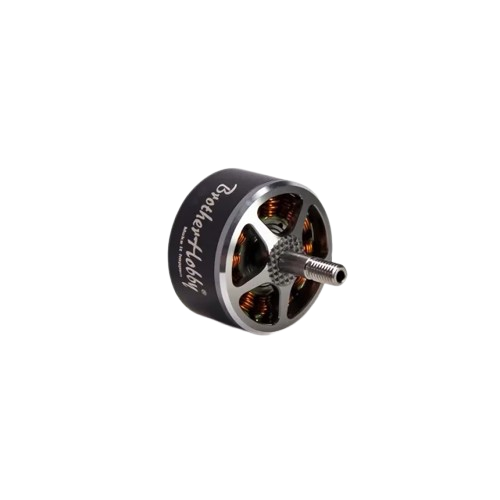

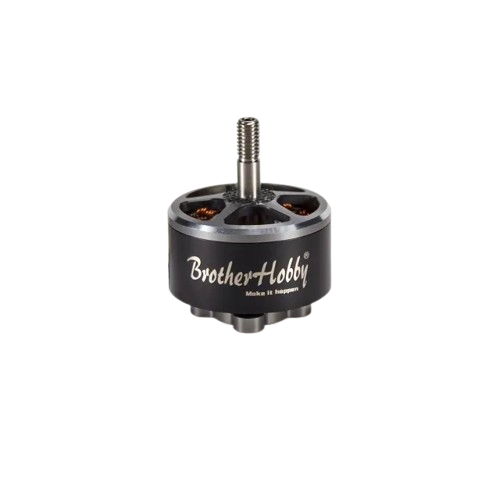

BROTHERHOBBY Avenger 2812 1115KV V3 Motor
BROTHERHOBBY Avenger 2812 1115KV V3 Motor
BROTHERHOBBY Avenger 2812 1115KV V3 Motor
BROTHERHOBBY Avenger 2812 1115KV V3 Motor
BROTHERHOBBY Avenger 2812 1115KV V3 Motor

BROTHERHOBBY Avenger 2812 1115KV V3 Motor

₹2,559.00
Unleash cinematic potential with the BrotherHobby Avenger 2812 1115KV V3 motor. Engineered for heavy-lift and long-range 7-8 inch drones, it features a robust titanium alloy shaft and Japanese NMB bearings. This motor delivers the immense torque and buttery-smooth performance required for professional cinematic FPV flights.
Choose Quantity
+ Add to Cart
Product Details
Features:

  • Version 3 Design: The latest iteration with performance and durability enhancements.
  • Titanium Alloy Shaft: Hollow TC4 titanium shaft for superior strength and rigidity.
  • Japanese NMB Bearings: High-quality 13x6x5mm bearings ensure exceptionally smooth operation.
  • Kawasaki 0.2mm Stator: Premium stator laminations for high efficiency and power.
  • N52H Arc Magnets: Provides massive torque for responsive and stable flight.
  • Heavy Lift Capability: Ideal for carrying larger cameras and heavy payloads.
  • Aerospace Grade Aluminum: 7075AL bell and base for a strong, lightweight build.
  • Optimized for 6S LiPo: Designed to deliver peak performance on 6S power.

Technical Specifications:

  • KV: 1115KV
  • Configuration: 12N14P
  • Rotor: N52H arc magnets
  • Input Voltage: 6S LiPo (25.2V)
  • Stator: 0.2mm Kawasaki silicon steel
  • Shaft: TC4 Titanium alloy hollow shaft
  • Bearing: Japanese NMB 12X6X4mm
  • Wire AWG: 18AWG, 25cm length
  • Bell Cap: Al 7075
  • Base Casing: Al 7075
  • Propeller Adapter Shaft Thread: M5
  • Mounting Pattern: 19×19mm, M3
  • Weight: 76.5g (with wires)

Additional Details:

  • Manufacturer: BrotherHobby
  • Brand: BrotherHobby
  • Generic Name: Brushless Motor || FPV Drone Motor || Long-Range Motor || Cinematic Drone Motor || Heavy Lift Motor || UAV Motor || Quadcopter Motor
  • Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
  • Ideal For: 7-8 inch long-range cinematic rigs, X-Class drones, heavy payload systems, professional aerial videography, and high-efficiency endurance builds.

Package Details:

Includes:
  • 1 x BrotherHobby Avenger 2812 1115KV V3 Motor
  • 4 x M2 Screws
  • 1 x M5 Propeller Nut

Frequently Asked Questions (FAQs):

Q1: What is the primary application for a 2812 1115KV motor?
Ans: This motor is specifically designed for large FPV drones, typically in the 7 to 8-inch propeller class. Its high torque and lower KV are ideal for carrying heavy payloads (like cinema cameras) and for efficient, stable long-range cruising on 6S batteries.

Q2: What makes the "V3" Avenger different from previous versions?
Ans: The V3 model incorporates key upgrades, including a more robust structure, higher-grade materials like the TC4 titanium alloy shaft, and improved Japanese NMB bearings for enhanced smoothness, durability, and overall flight performance compared to its predecessors.

Q3: Can I use this motor with a 4S battery?
Ans: While technically possible, this motor is highly optimized for 6S LiPo batteries. Using a 4S battery would result in significantly lower power and thrust, and it would not perform as intended for its designed purpose of heavy lifting and long-range flight.
