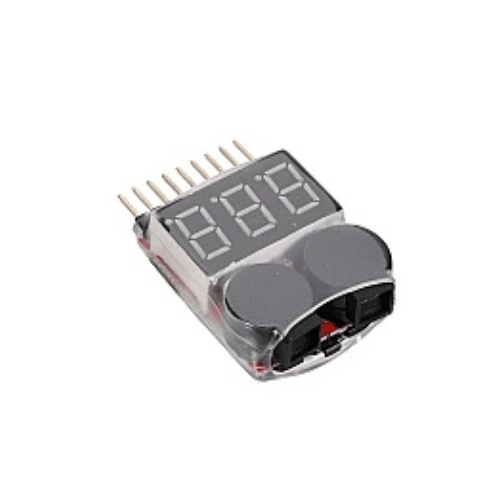

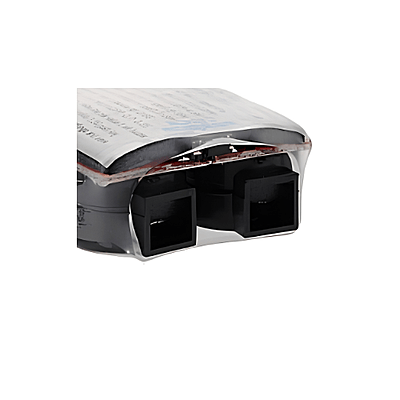

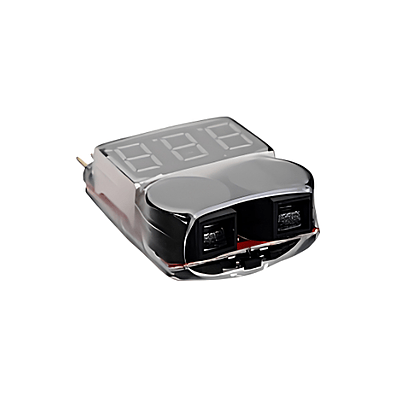

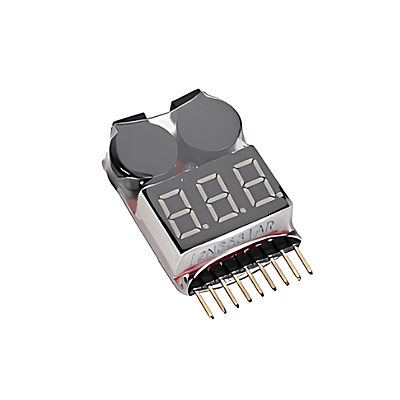

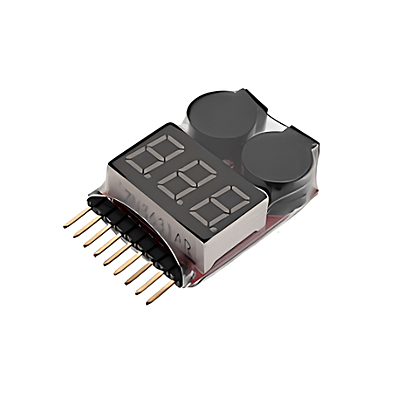

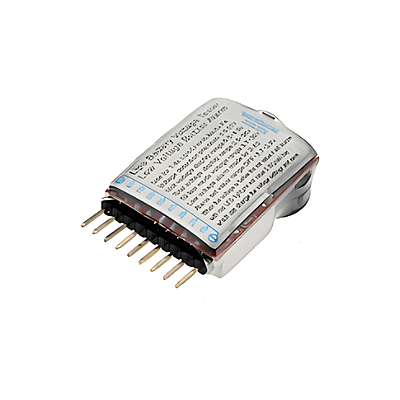

Battery Voltage Tester checker Monitor and Buzzer Alarm - lipo, li ion life
₹199.00
The Battery Voltage Tester Checker Monitor and Buzzer Alarm is an essential diagnostic tool for monitoring 1S to 8S LiPo, Li-ion, LiFe, and LiMn battery packs. Featuring a clear LED display and dual loud buzzers, it provides real-time voltage tracking for individual cells and total pack voltage, instantly alerting operators when cell voltages drop below safe thresholds to prevent over-discharge.
Choose Quantity
Product Details
Features :
- Universal compatibility supporting 1S to 8S lithium chemistry battery packs (LiPo, Li-ion, LiFe, LiMn).
- High-visibility digital LED screen cycling through individual cell and total pack voltages.
- Adjustable low-voltage alarm threshold ranging from 2.7V to 3.8V via an onboard set button.
- Dual loud buzzer alarms accompanied by red LED flashing indicators for critical low-voltage warnings.
- Compact and lightweight plug-and-play design connecting directly to standard balance leads.
Technical Details :
- Product Name: Battery Voltage Tester and Buzzer Alarm
- SKU: GEN-CHRG-3118
- Supported Battery Types: 1S - 8S LiPo, Li-ion, LiFe, LiMn
- Voltage Detection Precision: ±0.01V
- Unit Cell Voltage Display Range: 0.5V to 4.5V
- Total Pack Voltage Display Range: 0.5V to 36V
- Alarm Set Value Range: 2.7V to 3.8V (Default: 3.3V)
- Dimensions: 40 x 27 x 13 mm
- Weight: 12g
Additional Details:
Manufacturer: Generic / OEM
Brand: Universal RC Hardware
Generic Name: Lithium Battery Voltage Checker & Alarm
Sold By: UAV Marketplace
Ideal For: FPV drones, multirotors, RC aircraft, battery maintenance benches, and portable field diagnostics
Package Details:
1x 1S-8S Battery Voltage Tester and Buzzer Alarm Unit
FAQs:
Q1) Can this voltage checker be used with 6S LiPo batteries commonly utilized in heavy-duty agricultural drones across India?
Ans: Yes, it supports 1S to 8S lithium battery configurations, making it fully compatible with 2S up to 6S packs used in Indian UAV setups.
Q2) How does the buzzer alarm notify the user of low battery voltage?
Ans: It emits a loud audible buzzer tone and flashes red LED lights as soon as any individual cell drops below the user-configured voltage threshold.
Q3) Is it possible to adjust the low-voltage alarm trigger point?
Ans: Yes, you can use the onboard push button to adjust the alarm threshold between 2.7V and 3.8V per cell.
Q4) Does this device require an external power source to operate?
Ans: No, it draws power directly from the connected lithium battery pack through the standard balance connector plug.
Q5) What is the voltage detection accuracy of this checker?
Ans: It provides high-precision voltage readings with a detection precision of ±0.01V.
