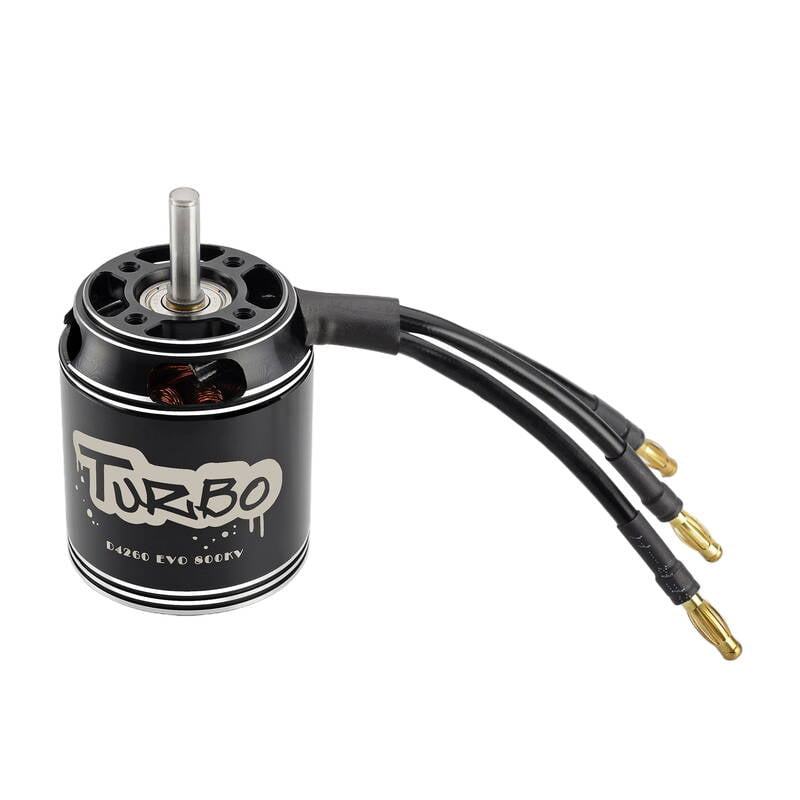

FLASH HOBBY-D4260 EVO 800KV FIXED WING MOTOR
₹4,299.00 ₹5,900.00
Out of stock
Product Details
KV: 800KV
Max watts: 1354.0W
Max Current: 64.39A
No Load current: 2.45A/10V
Resistance: 21.2mΩ
Battery: 5-6S Lipo
Suggested Prop: 12 inch prop
D4260 EVO Motor Drawing:
D4260 EVO Motor Test Data:
| MOTOR TECHNICAL DATA: | |||||||||
| ltem NO. | Volts(V) | Prop | Throttle(%) | CURRENT (A) | Power(W) | Thrust (g) | PRM | Efficiency (g/W) | Operating temperature(℃) |
| D4260-600KV(EVO) | 22.72 | APC 12×6 | 40% | 12.17 | 276.5 | 1365 | 7575 | 4.9 | 48.0℃ |
| 22.64 | 50% | 17.53 | 396.9 | 1773 | 8483 | 4.5 | |||
| 22.53 | 60% | 24.19 | 545.0 | 2205 | 9345 | 4.0 | |||
| 22.33 | 70% | 37.12 | 828.9 | 2901 | 10577 | 3.5 | |||
| 22.11 | 80% | 46.55 | 1029.2 | 3514 | 11488 | 3.4 | |||
| 22.10 | 90% | 52.61 | 1162.7 | 3860 | 11472 | 3.3 | |||
| 22.10 | 100% | 56.77 | 1254.6 | 4015 | 11464 | 3.2 | |||
| 22.71 | APC 14×7 | 40% | 14.18 | 322.0 | 1672 | 6660 | 5.2 | 56.2℃ | |
| 22.59 | 50% | 21.93 | 495.4 | 2276 | 7630 | 4.6 | |||
| 22.40 | 60% | 32.55 | 729.1 | 3080 | 8678 | 4.2 | |||
| 21.96 | 70% | 40.34 | 885.9 | 3650 | 9699 | 4.1 | |||
| 21.66 | 80% | 45.42 | 983.8 | 3739 | 9455 | 3.8 | |||
| 21.40 | 90% | 52.90 | 1132.1 | 3874 | 9420 | 3.4 | |||
| 21.24 | 100% | 59.92 | 1272.7 | 4080 | 9384 | 3.2 | |||
| D4260-800KV(EVO) | 22.46 | APC 12×6 | 40% | 21.40 | 480.6 | 1950 | 8823 | 4.1 | 57.6℃ |
| 22.32 | 50% | 31.22 | 696.8 | 2456 | 9848 | 3.5 | |||
| 22.11 | 60% | 38.67 | 855.0 | 2876 | 10929 | 3.4 | |||
| 21.69 | 70% | 42.61 | 924.2 | 3388 | 11161 | 3.7 | |||
| 21.38 | 80% | 51.77 | 1106.8 | 3680 | 11154 | 3.3 | |||
| 21.20 | 90% | 56.70 | 1202.0 | 3874 | 11147 | 3.2 | |||
| 21.03 | 100% | 64.39 | 1354.1 | 4152 | 11059 | 3.1 | |||
| 22.54 | APC 12×6 | 40% | 25.10 | 565.8 | 2398 | 7757 | 4.2 | 59.1℃ | |
| 22.25 | 50% | 41.97 | 933.8 | 3343 | 8925 | 3.6 | |||
| 22.06 | 60% | 53.44 | 1178.9 | 3661 | 9283 | 3.1 | |||
| 21.80 | 70% | 53.26 | 1161.1 | 3574 | 9230 | 3.1 | |||
| 21.63 | 80% | 53.33 | 880.0 | 3632 | 9271 | 4.1 | |||
| 21.44 | 90% | 53.51 | 940.6 | 3637 | 9255 | 3.9 | |||
| 20.91 | 100% | 53.52 | 1119.1 | 3646 | 9215 | 3.3 |
APPLICATION:
CONNECTION:
