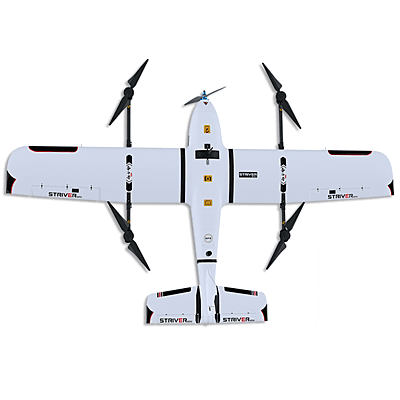

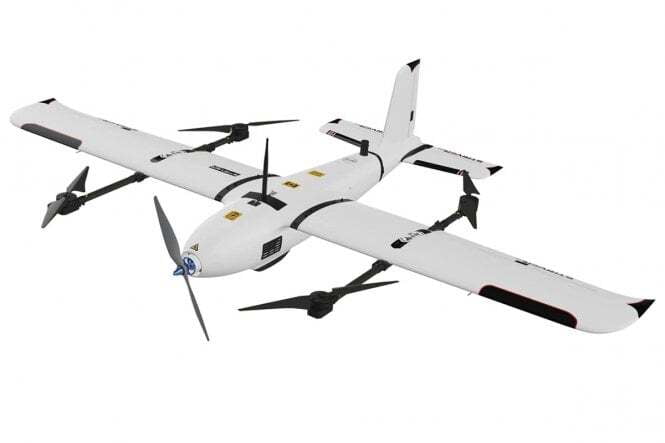

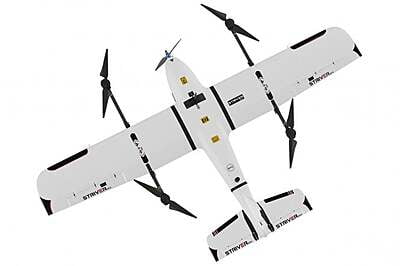

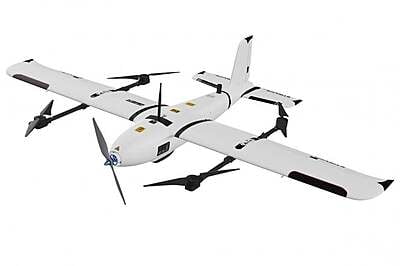

MFE-STRIVER MINI VTOL-KIT
Material: EPO, EVA, carbon fiber, engineering plastics, etc
Wingspan: 2100mm
Hanging arm: 744mm
Height: 156mm (without mat)
Length: 1200mm
Wing area: 59dm2
The Striver's VTOL MINI is a 7kg class vertical take-off and landing fixed wing, which inherits the safety and practical characteristics of Striver. It adopts classic aerodynamic layout, redundant backup avionics system, the whole machine supports toolless quick disassembly, has undergone 500+ takeoff and landing durability tests, and altitude 4000+ plateau low temperature tests.
Basic parameters
Material: EPO, EVA, carbon fiber, engineering plastics, etc
Wingspan: 2100mm
Hanging arm: 744mm
Height: 156mm (without mat)
Length: 1200mm
Wing area: 59dm2
Disassembly and assembly method: quick disassembly without tools
Dimensions of the load compartment: 180×150×110mm
Shipping box size: 1.07m×0.35m×0.48m
Payload
Maximum payload: 1kg
Maximum take-off weight: 7.5kg
flight
Take-off and landing mode: vertical take-off and landing
Maximum take-off altitude: 3000m (altitude)
Service ceiling height: 4500m (altitude)
Wind resistance: Class 5 (normal operation)
Cruising speed: 18-21m/s
Stall speed: 10m/s
Endurance: 112min/127km (
