FPV trending in cinematic and commercial filming, we – Axisflying – are very proud to present you our new C cinematic motor series. The C series motor has been developed for Cinematic FPV pilots who fly to create and have high-quality requirements. Cinematic pilots often only have one chance to capture their best shot so they work hard to fine-tune their flying abilities and master: control, anticipation and precision. We bring you today a new cinematic motor to help you enhance your cinematic flying skills. The C series motor features the perfect balance required for your cinematic flights: smoothness, reactivity and high torque for a delicate control feel along with high efficiency to maximize your flight time.

FEATURES:

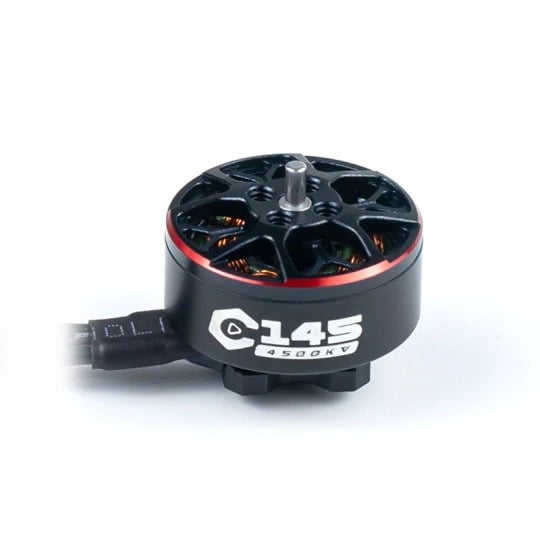

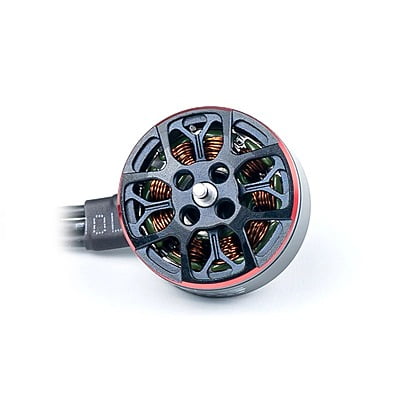

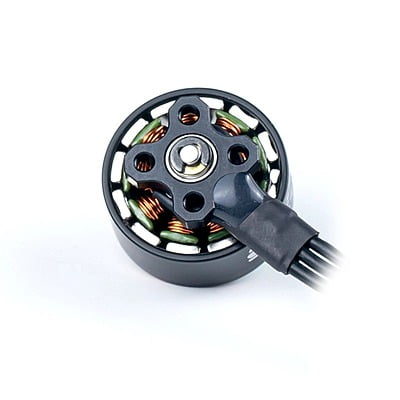

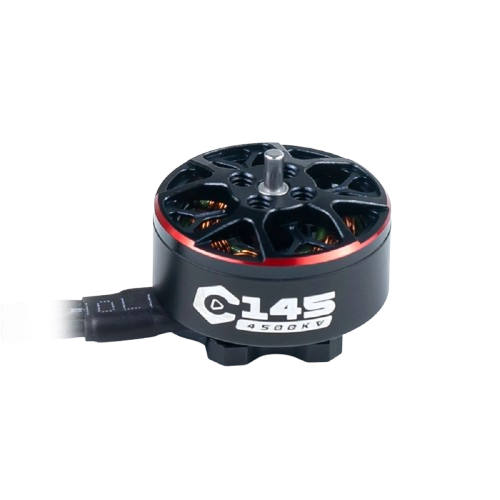

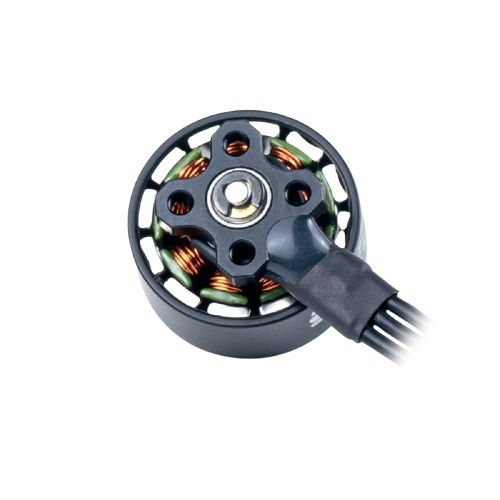

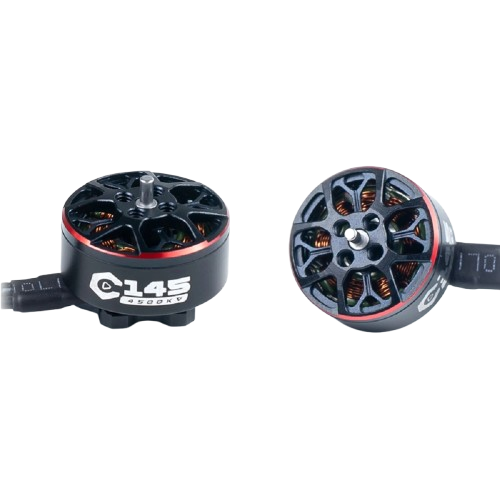

• The C145 motor is specially designed for 2.5-inch cinewhoop and cinematic drones that need more power and torque.
• C145 motors run perfectly with Gemfan D63-5 and D63-3 props.
• 4500KV@4S.
• Bearing Shield Technology.
• An IP53 rating dustproof and waterproof bearing placement design.
• BST protects from environmental elements and prolongs the smoothness and lifespan of the bearing.
• Increased thrust efficiency and say goodbye to crush motor bearings.

SPECIFICATION:

• 4500 KV is for 4S
• Configuration: 12N14P / N52H arc magnet
• Motor stator size: 1404.5
• Motor mounting hole size: 4*M2 (Φ12mm)
• Motor cables: AWG 20#, 150MM
• Motor dimensions (Dia *Len): Φ26.9*288MM
• Motor weight (including 150MM cables) :
• The motor is very powerful that can get over 0.85KG and the most current is about 25A

PACKAGE INCLUDES:

• 1x C145 motor
• 4x M2*5 screws for motor
• 1x M2*4 screw for the lock shaft
• 2x M2*7 screws for lock props
• 1x O-ring
• 1x Washer
