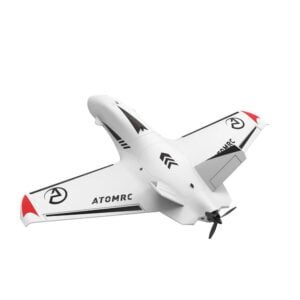

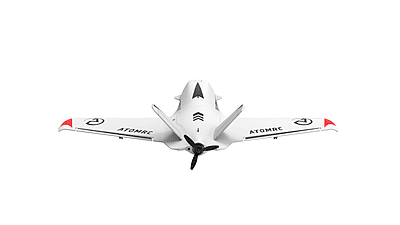

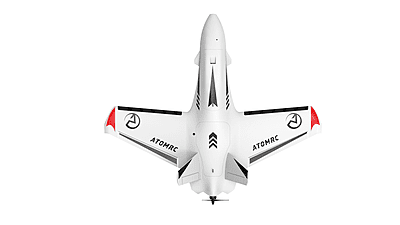

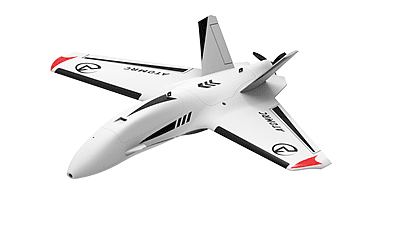

ATOMRC Dolphin Kit FPV RC Fixed Wing Plane

The ATOMRC Dolphin 845mm Wingspan FPV RC Airplane is an EPP molded wing, embedded with carbon fiber tube, durable and lightweight. Features a detachable head and wing, a rubber band and magnet (to lock your GoPro), air inlet and outlet for FPV gear cooling, pre-installed wing, fuselage protector, and other cool features that make thing wing a must-have!

Features:

• EPP molded wing, embedded with carbon fiber tube, durable and lightweight.
• Carbon fiber tube enhanced elevens, more rigid elevens during the high-speed flight.
• Detachable wing, portable to transport.
• Detachable head, two head for choice, users can choose to fly with GoPro or without GoPro.
• Rubber band and magnet to lock the GoPro, easy to install the GoPro.
• V tail design makes the wing more stable than a normal fly wing.
• Pre-installed wing and fuselage protector, more durable during landing.
• Compatible with GoPro hero 5~7.
• Movable battery slot for better “CG” adjustment.
• Pre-installed camera cable and antenna for FPV gear.
• Air inlet and outlet for FPV gear cooling.

Specifications:

• Brand Name: ATOMRC
• Item Name: Dolphin
• Wingspan: 845mm(33.2″)
• Length: 710mm(28″)
• Motor: 2306 1700KV
• ESC: 30A with 5V/3A BEC
• Servo: 2pcs 9g servo
• Propeller recommend: 5~6 inch
• Battery recommend : 4S 1300-2200mah
• Dimension: 660*225*135mm

Recommend Parts (not included in kit version):

• Motor: 2306
• ESC: 30A with 5V/3A BEC
• Servo: 2pcs 9g servo
• Propeller: 5-6inch
• Battery: 4S 1300-2200mah (Not Included)
• Radio: more than 6CH (Not Included)

Manual

Package Includes:

Kit Version

• 1 x Prebuild Dolphin Kit
• 1 x Ball Push/Push Rod
• 1 X Sticker
• 1 x Battery Strap
• 1 x Camera Cable
• 1 x SMA to UFL VTX cable
• 1 x Screws
  • Requires: Radio, Receiver, Battery, Charger, ESC, Motor, Servos AND FPV set up.
