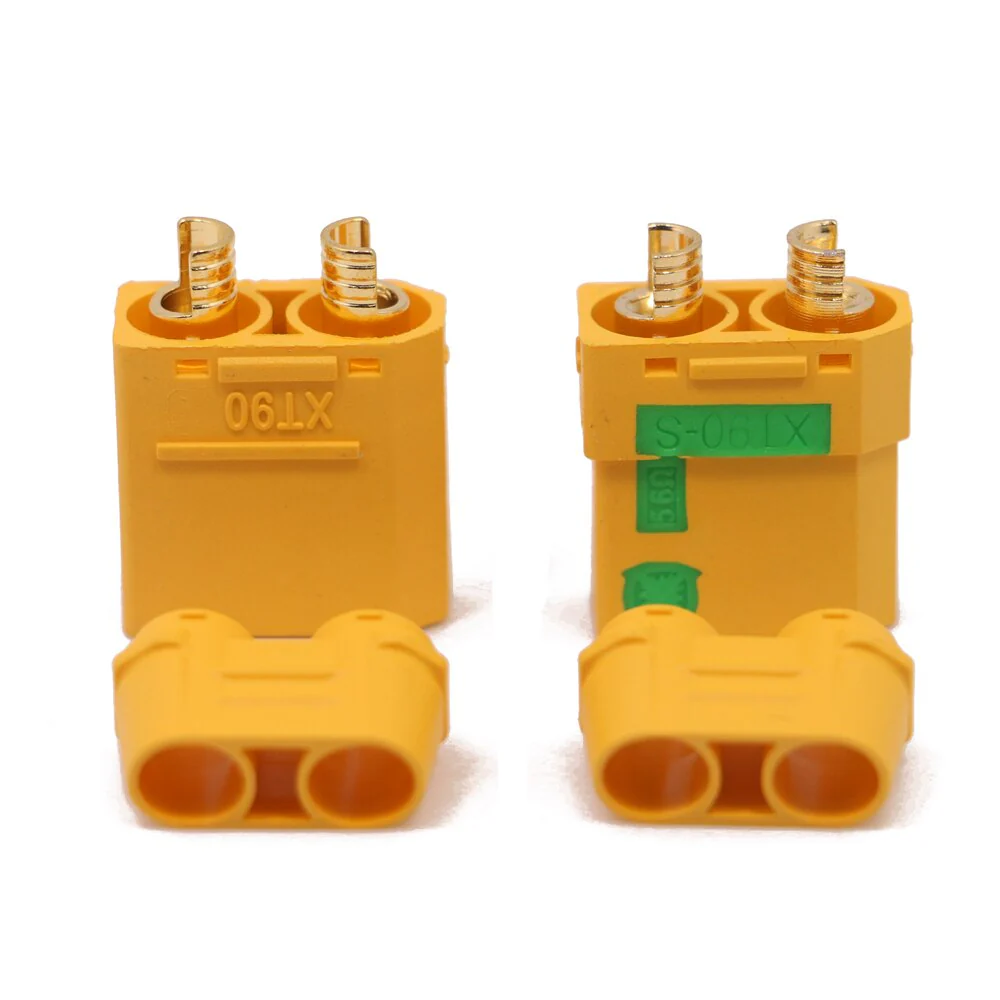

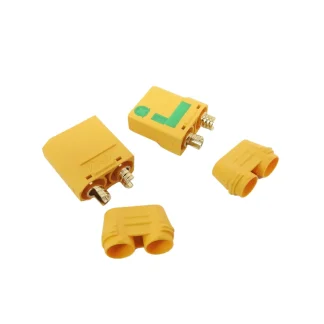

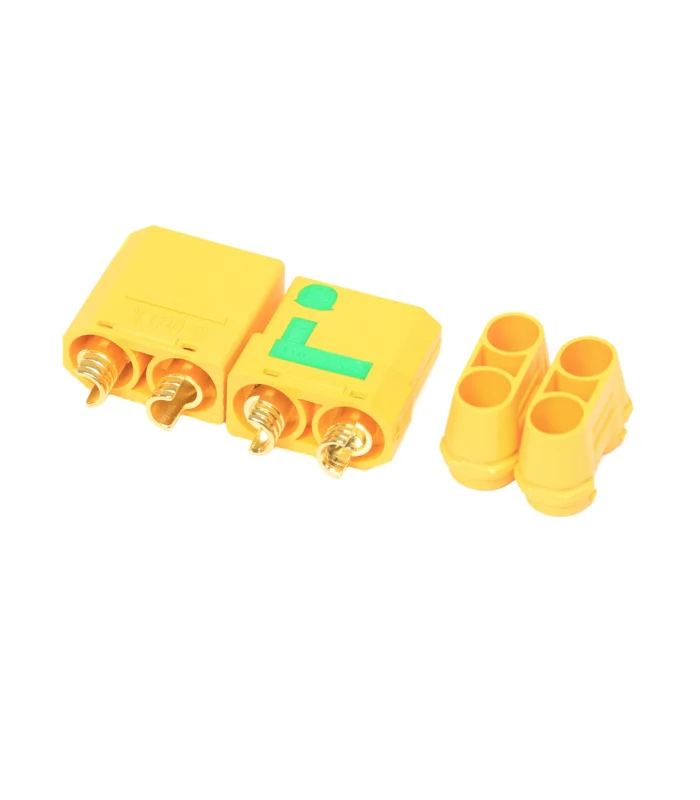

Amass XT90S/H connector Male+Female Pack of 5
₹1,299.00
This pack of 5 Amass XT90S/H male and female anti-spark connectors ensures safe and reliable high-current connections. Featuring an integrated spark suppression resistor and protective caps, they prevent damaging initial power-up sparks, extending the life of your components. Ideal for large drones, high-performance RC vehicles, and robust DIY power systems.
Choose Quantity
Product Details
Features:
- Amass XT90S/H Connectors: XT90 with anti-spark function.
- Integrated anti-spark resistor: Prevents damaging power-up sparks.
- Gold-plated contacts: Ensures low resistance, high conductivity.
- Very high current capacity: Ideal for extreme power demands.
- Durable nylon housing: Provides secure, insulated connection.
- Easy to solder: User-friendly for assembly.
- Secure click fit: Prevents accidental disconnections.
Technical Details:

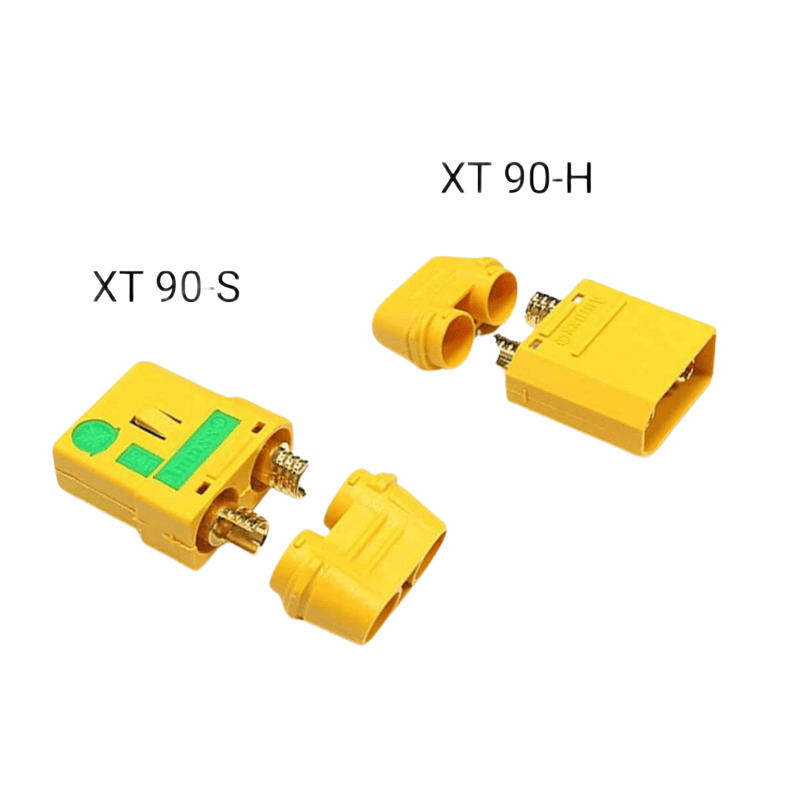

- Connector Type: XT90S/H (Male & Female with anti-spark resistor and protective cap)
- Body Material: High-Temperature Nylon / PA
- Contact Material: Gold-Plated Brass
- Anti-Spark Feature: Integrated resistor in the male connector to dissipate initial current surge.
- Recommended Wire Gauge: 8-10 AWG (can accommodate up to 6AWG with care)
- Temperature Resistance: -20°C to 120°C (approx.)
Additional Details:
- Manufacturer: AMASS Electronics Co., Ltd.
- Brand: AMASS
- Generic Name: XT90S Connector || XT90H Connector || Anti-Spark Connector || XT90 with Cap || Protected XT90 || Heavy-Duty Battery Connector || High-Power RC Plug || Drone Power Connector || ESC Connector || Lipo Battery Connector || Extreme Current Connector || Industrial Power Connector || Gold Plated Connector || Nylon Connector || Power Connector
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: Large RC drone battery connections, high-performance ESC-to-battery wiring, large-scale RC vehicle power systems requiring spark suppression, industrial robotics, electric bikes/scooters, DIY electronics demanding very high current and spark prevention, custom high-capacity battery pack building.
Package Details:
Includes: 5 x Amass XT90S Male Connectors , 5 x Amass XT90H Female Connectors.
Frequently Asked Questions:
Q1. How do XT90S/H connectors prevent sparks?
Ans - The male XT90S connector includes a built-in resistor that pre-charges capacitors in the ESC, gradually reducing the initial current surge and preventing destructive sparks upon connection.
Q2. Are these connectors compatible with standard XT90 plugs?
Ans - Yes, Amass XT90S/H connectors are fully compatible and can mate with standard XT90 connectors, providing the anti-spark benefit when the XT90S male is used.
Q3. What wire gauges are recommended for these high-current connectors?
Ans - These XT90S/H connectors are best suited for 8-10 AWG wire to handle their high current capacity, though they can carefully accommodate up to 6 AWG for specific applications.
