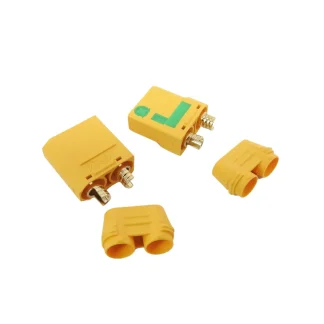

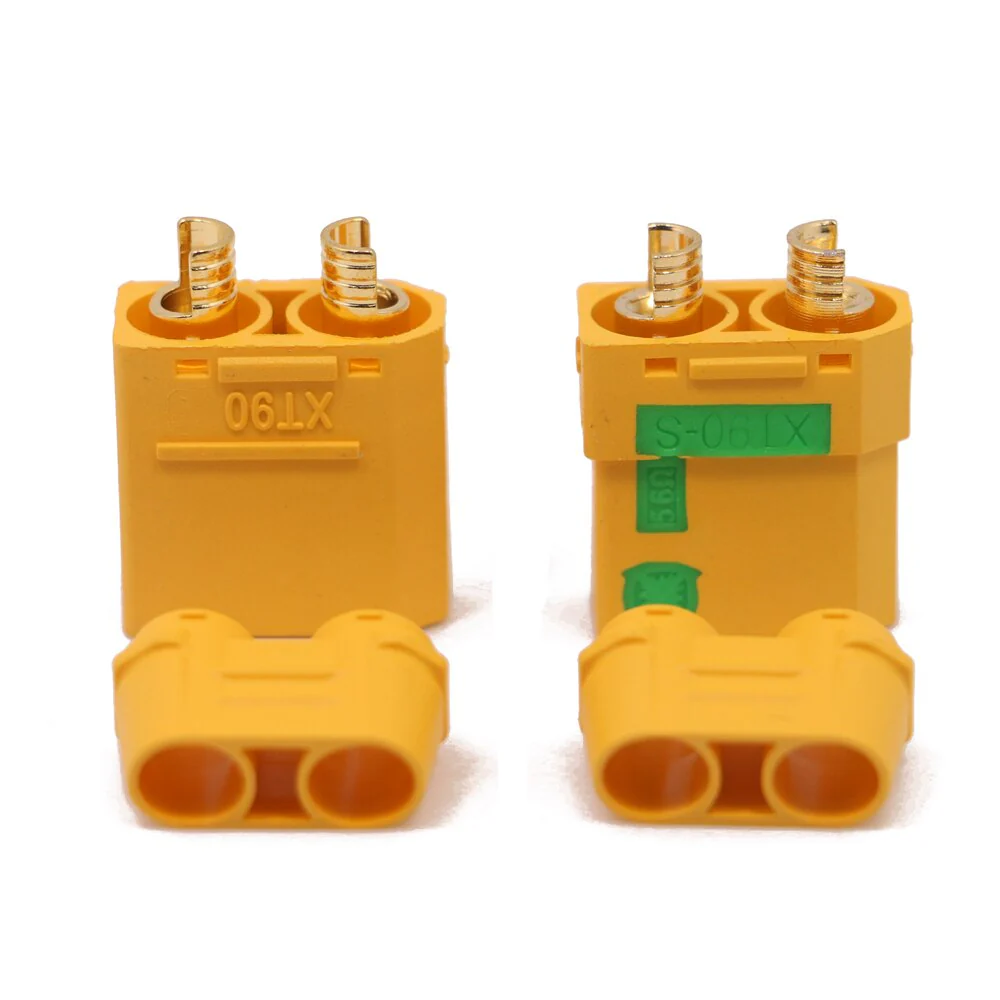

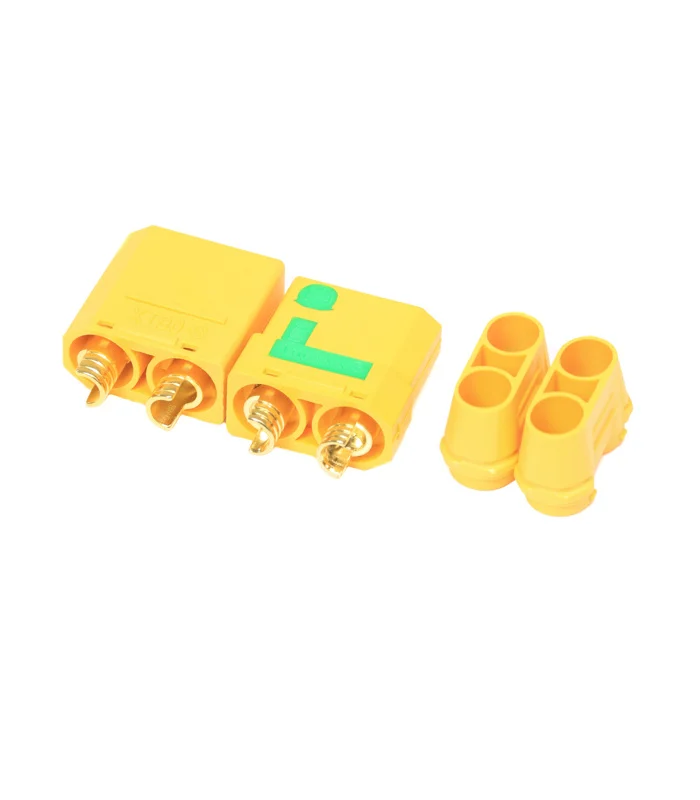

Amass XT90S/H connector Male+Female Pack of 2
Non-returnable
₹579.00
This pack of 2 Amass XT90S/H male and female anti-spark connectors provides safe and reliable high-current connections for demanding applications. Featuring a built-in spark suppression resistor and integrated caps for protection, they are ideal for preventing initial power-up sparks in large drones, high-performance RC vehicles, and industrial power systems, ensuring equipment longevity.
Choose Quantity
Product Details
Features:
- Amass XT90S/H Connectors: XT90 with anti-spark function.
- Integrated anti-spark resistor: Prevents damaging power-up sparks.
- Built-in protective cap: Enhances safety, dust resistance.
- Gold-plated contacts: Ensures low resistance, high conductivity.
- Very high current capacity: Ideal for extreme power demands.
- Durable nylon housing: Provides secure, insulated connection.
- Easy to solder: User-friendly for assembly.
- Secure click fit: Prevents accidental disconnections.
Technical Details:

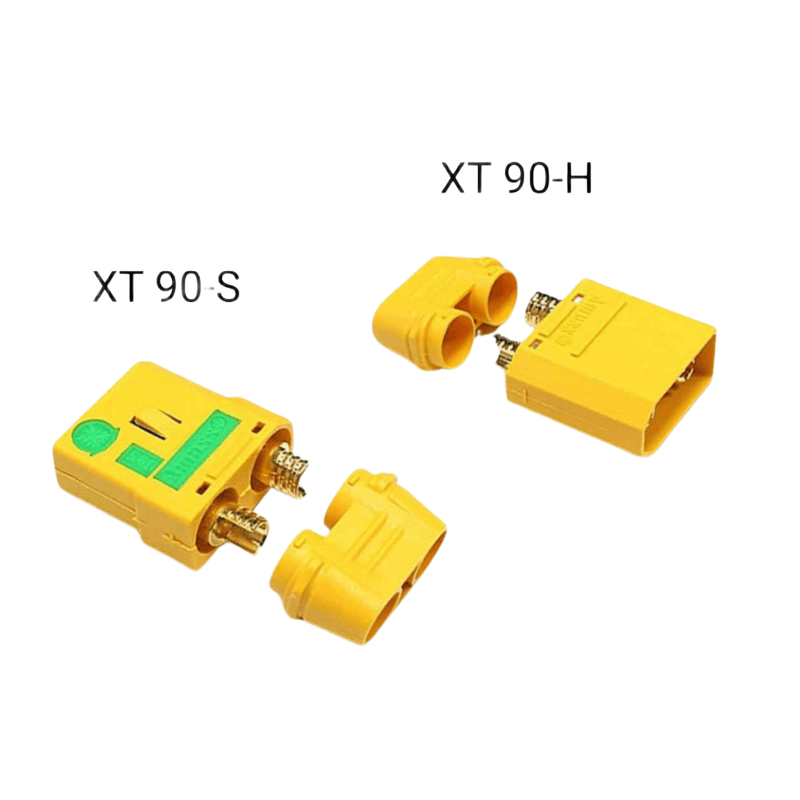

- Connector Type: XT90S/H (Male & Female with anti-spark resistor and protective cap)
- Body Material: High-Temperature Nylon / PA
- Contact Material: Gold-Plated Brass
- Anti-Spark Feature: Integrated resistor in the male connector to dissipate initial current surge.
- Recommended Wire Gauge: 8-10 AWG (can accommodate up to 6AWG with care)
- Temperature Resistance: -20°C to 120°C (approx.)
Additional Details:
- Manufacturer: AMASS Electronics Co., Ltd.
- Brand: AMASS
- Generic Name: XT90S Connector || XT90H Connector || Anti-Spark Connector || XT90 with Cap || Protected XT90 || Heavy-Duty Battery Connector || High-Power RC Plug || Drone Power Connector || ESC Connector || Lipo Battery Connector || Extreme Current Connector || Industrial Power Connector || Gold Plated Connector || Nylon Connector || Power Connector
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: Large RC drone battery connections, high-performance ESC-to-battery wiring, large-scale RC vehicle power systems requiring spark suppression, industrial robotics, electric bikes/scooters, DIY electronics demanding very high current and spark prevention, custom high-capacity battery pack building.
Package Details:
- Includes: 2 x Amass XT90S/H Male Connectors , 2 x Amass XT90S/H Female Connectors .
Frequently Asked Questions:
Q1. What is the primary benefit of the "S" in XT90S/H connectors?
Ans - The "S" in XT90S/H indicates an integrated anti-spark resistor in the male connector, which prevents damaging sparks upon initial connection of high-voltage battery packs, protecting your electronics.
Q2. Are these XT90S/H connectors compatible with standard XT90 or XT90H connectors?
Ans - Yes, Amass XT90S/H connectors are fully compatible and can mate with both standard XT90 and XT90H connectors, providing anti-spark functionality when the XT90S male is used.
Q3. How does the anti-spark feature work in these connectors?
Ans - When connecting, the XT90S male's anti-spark pin makes contact first through a resistor, safely charging the ESC capacitors before the main power pins connect, thus suppressing the spark.
