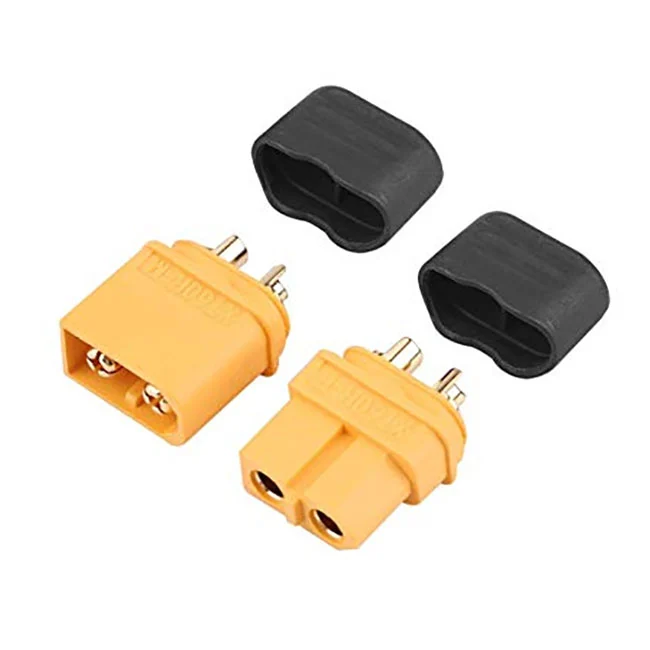

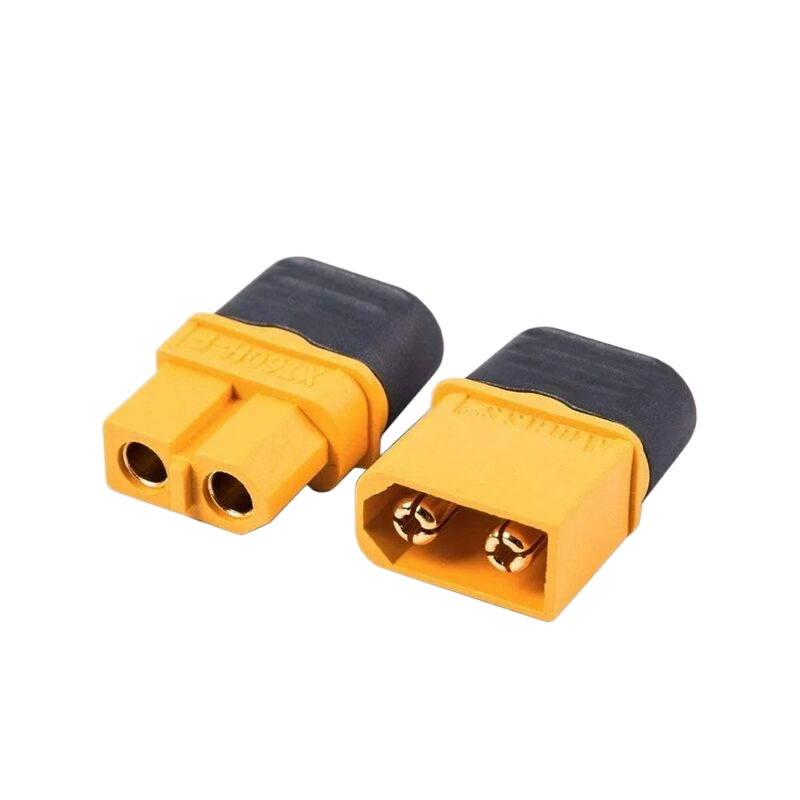

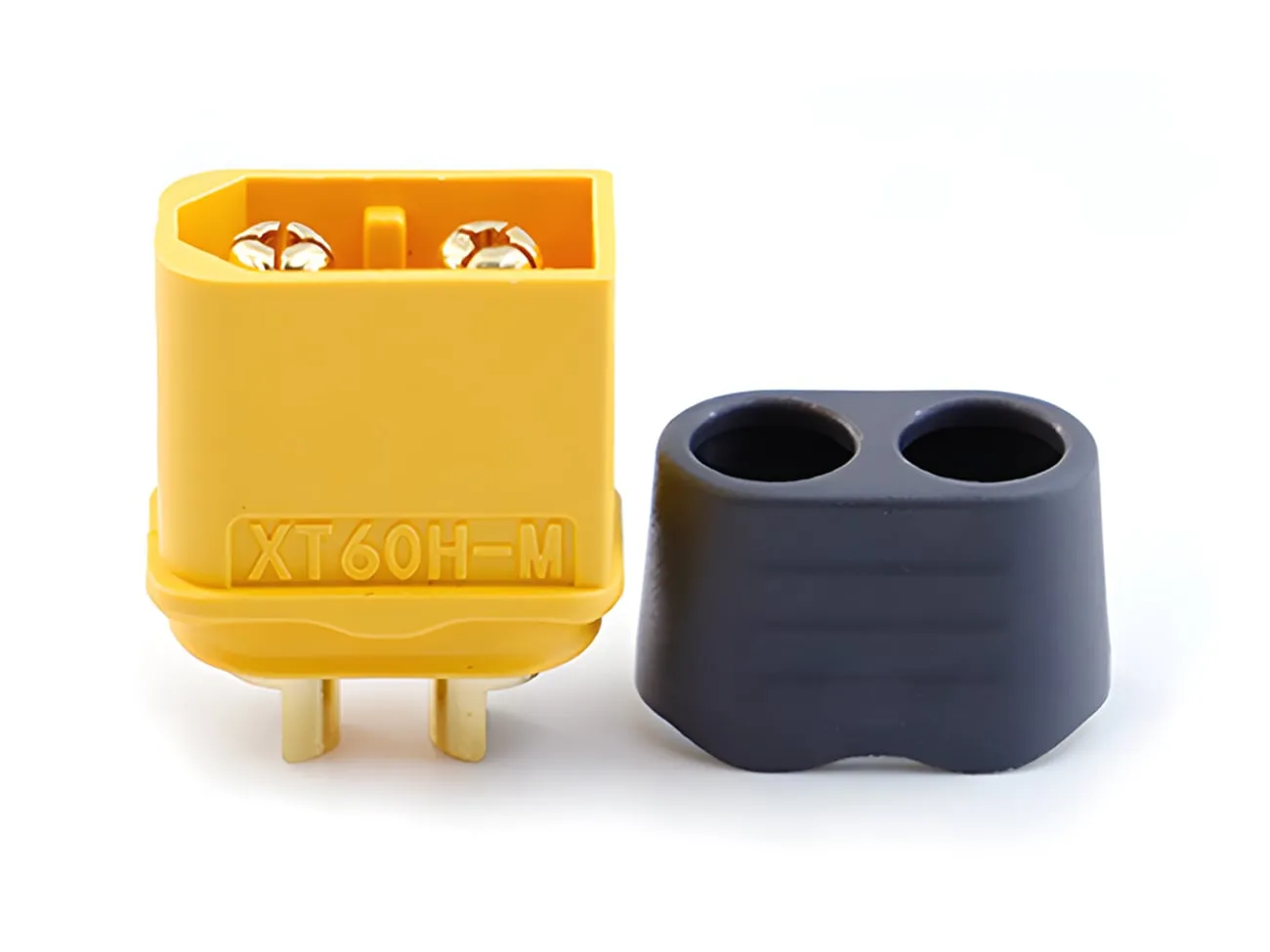

Amass XT60H connector Male+Female Pack of 5
₹389.00
The Amass XT60H connector pack provides 5 male and female pairs with integrated protective caps, offering enhanced safety and dust/splash resistance for your RC power systems. Ideal for demanding applications in drones, RC cars, and custom battery packs, these connectors feature gold-plated contacts and a secure connection for reliable current transfer.
Choose Quantity
Product Details
Features:
- Amass XT60H Connectors: XT60 with integrated cap.
- Built-in protective cap: Enhances safety, dust resistance.
- Gold-plated contacts: Ensures low resistance, high conductivity.
- Durable nylon housing: Provides secure, insulated connection.
- High current capacity: Ideal for demanding applications.
- Easy to solder: User-friendly for assembly.
- Secure click fit: Prevents accidental disconnections.
- Male and female: Complete connection solution.
- Versatile for RC: Drones, cars, boats, and more.
Technical Details:
- Connector Type: XT60H (Male & Female with protective cap)
- Body Material: High-Temperature Nylon / PA
- Contact Material: Gold-Plated Brass
- Recommended Wire Gauge: 12-14 AWG (can accommodate up to 10AWG with care)
- Temperature Resistance: -20°C to 120°C (approx.)
Additional Details:
- Manufacturer: AMASS Electronics Co., Ltd.
- Brand: AMASS
- Generic Name: XT60H Connector || XT60 with Cap || Protected XT60 || RC Battery Connector || Drone Power Plug || ESC Connector || Lipo Battery Connector || High Current Connector || RC Model Connector || Gold Plated Connector || Nylon Connector || Power Connector
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: RC drone battery connections, ESC-to-battery wiring, RC vehicle power systems needing extra protection, quadcopter builds, robotics power circuits, DIY electronics demanding enhanced safety and dust/splash resistance, custom battery pack building, and general RC hobby applications where environmental protection is a concern.
Package Details:
- Includes: 5 x Amass XT60H Male Connectors, 5 x Amass XT60H Female Connectors.
Frequently Asked Questions:
Q1. What is the main advantage of the XT60H over a standard XT60?
Ans - The main advantage of the XT60H is its integrated protective cap, which provides enhanced safety by covering solder joints and offering dust and splash resistance, improving durability in various environments.
Q2. Are the XT60H connectors compatible with standard XT60 connectors?
Ans - Yes, Amass XT60H connectors are fully compatible and can mate with standard XT60 connectors, offering flexibility while providing the added protection of the XT60H's integrated cap.
Q3. Do the integrated caps make soldering more difficult?
Ans - No, the integrated caps on the XT60H connectors are designed to be user-friendly; they typically slide back or are positioned to allow for easy soldering, after which they can be secured over the soldered joints for protection.
