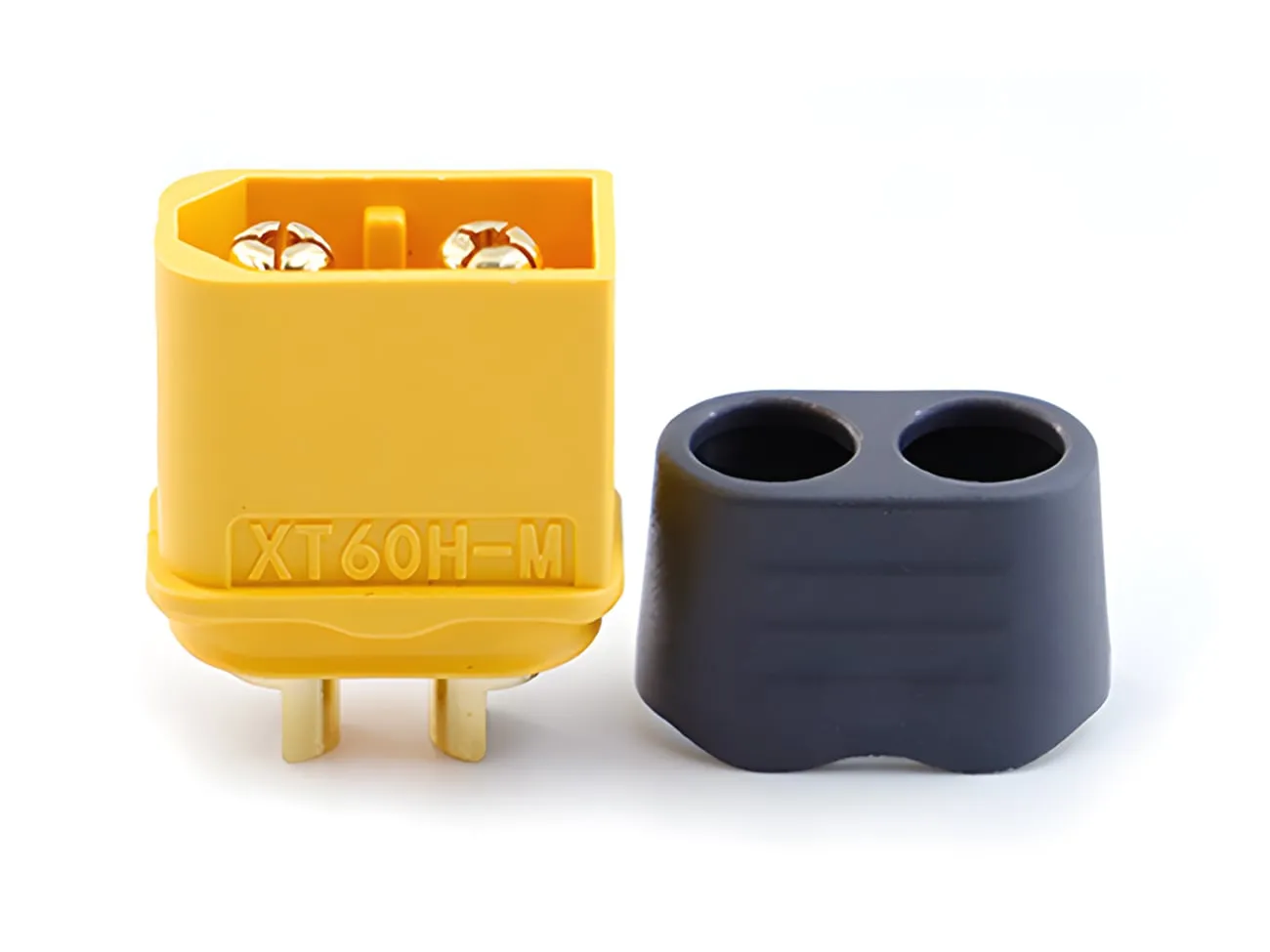

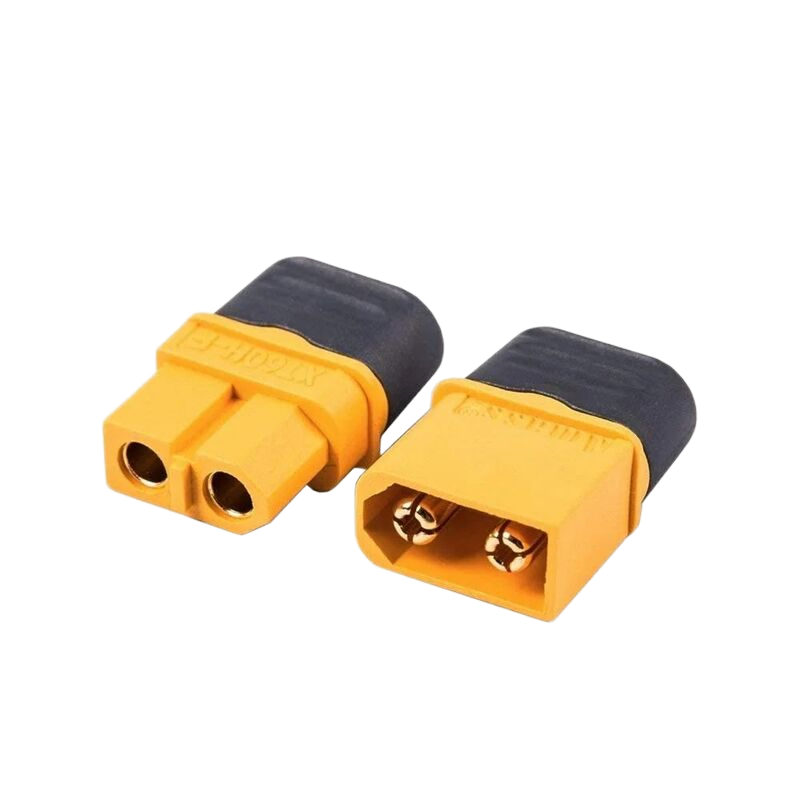

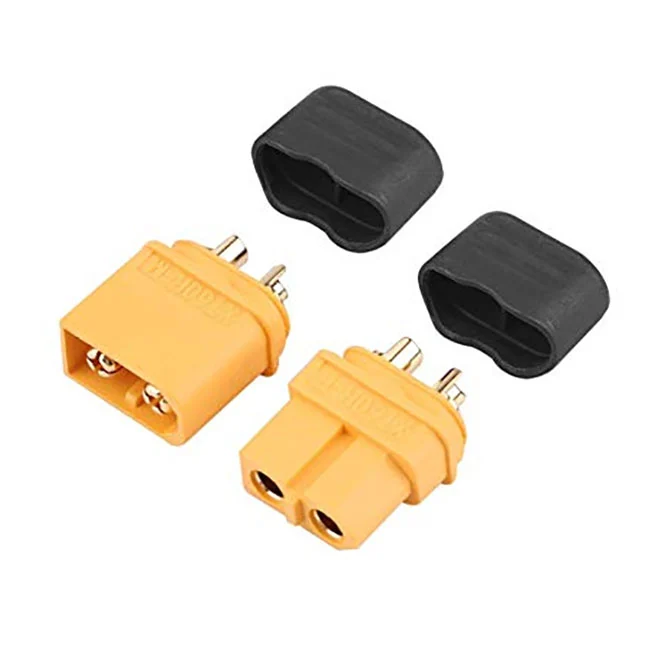

Amass XT60H connector Male+Female Pack of 2
₹199.00
This pack of 2 Amass XT60H male and female connectors offers enhanced safety and protection with integrated caps, ideal for demanding RC and electronics applications. Featuring gold-plated contacts for optimal conductivity and a durable design, they ensure secure and reliable power connections for drones, RC vehicles, and custom battery builds.
Choose Quantity
Product Details
Features:
- Amass XT60H Connectors: XT60 with integrated cap.
- Built-in protective cap: Enhances safety, dust resistance.
- Gold-plated contacts: Ensures low resistance, high conductivity.
- Durable nylon housing: Provides secure, insulated connection.
- High current capacity: Ideal for demanding applications.
- Easy to solder: User-friendly for assembly.
- Secure click fit: Prevents accidental disconnections.
- Male and female: Complete connection solution.
- Versatile for RC: Drones, cars, boats, and more.
Technical Details:
- Connector Type: XT60H (Male & Female with protective cap)
- Body Material: High-Temperature Nylon / PA
- Contact Material: Gold-Plated Brass
- Recommended Wire Gauge: 12-14 AWG (can accommodate up to 10AWG with care)
- Temperature Resistance: -20°C to 120°C (approx.)
Additional Details:
- Manufacturer: AMASS Electronics Co., Ltd.
- Brand: AMASS
- Generic Name: XT60H Connector || XT60 with Cap || Protected XT60 || RC Battery Connector || Drone Power Plug || ESC Connector || Lipo Battery Connector || High Current Connector || RC Model Connector || Gold Plated Connector || Nylon Connector || Power Connector
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: RC drone battery connections, ESC-to-battery wiring, RC vehicle power systems needing extra protection, quadcopter builds, robotics power circuits, DIY electronics demanding enhanced safety and dust/splash resistance, custom battery pack building, and general RC hobby applications where environmental protection is a concern.
Package Details:
- Includes: 2 x Amass XT60H Male Connectors, 2 x Amass XT60H Female Connectors.
Frequently Asked Questions:
Q1. What is the main benefit of XT60H over standard XT60 connectors?
Ans - The primary benefit of XT60H connectors is their integrated protective caps, which shield solder joints from dust and splashes, enhancing overall durability and safety in various operating conditions.
Q2. Are these XT60H connectors compatible with regular XT60s?
Ans - Yes, Amass XT60H connectors are fully compatible and can securely mate with standard XT60 connectors, providing flexibility while offering the added protection of the XT60H's design.
Q3. Are these connectors suitable for high-power drone applications?
Ans - Absolutely, these Amass XT60H connectors are rated for 60A continuous and 90A peak current, making them highly suitable for high-power drone, RC car, and robotics applications.
