Amass XT60 connector Male+Female Pack of 2
Non-returnable
₹159.00

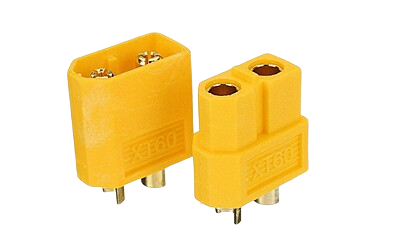

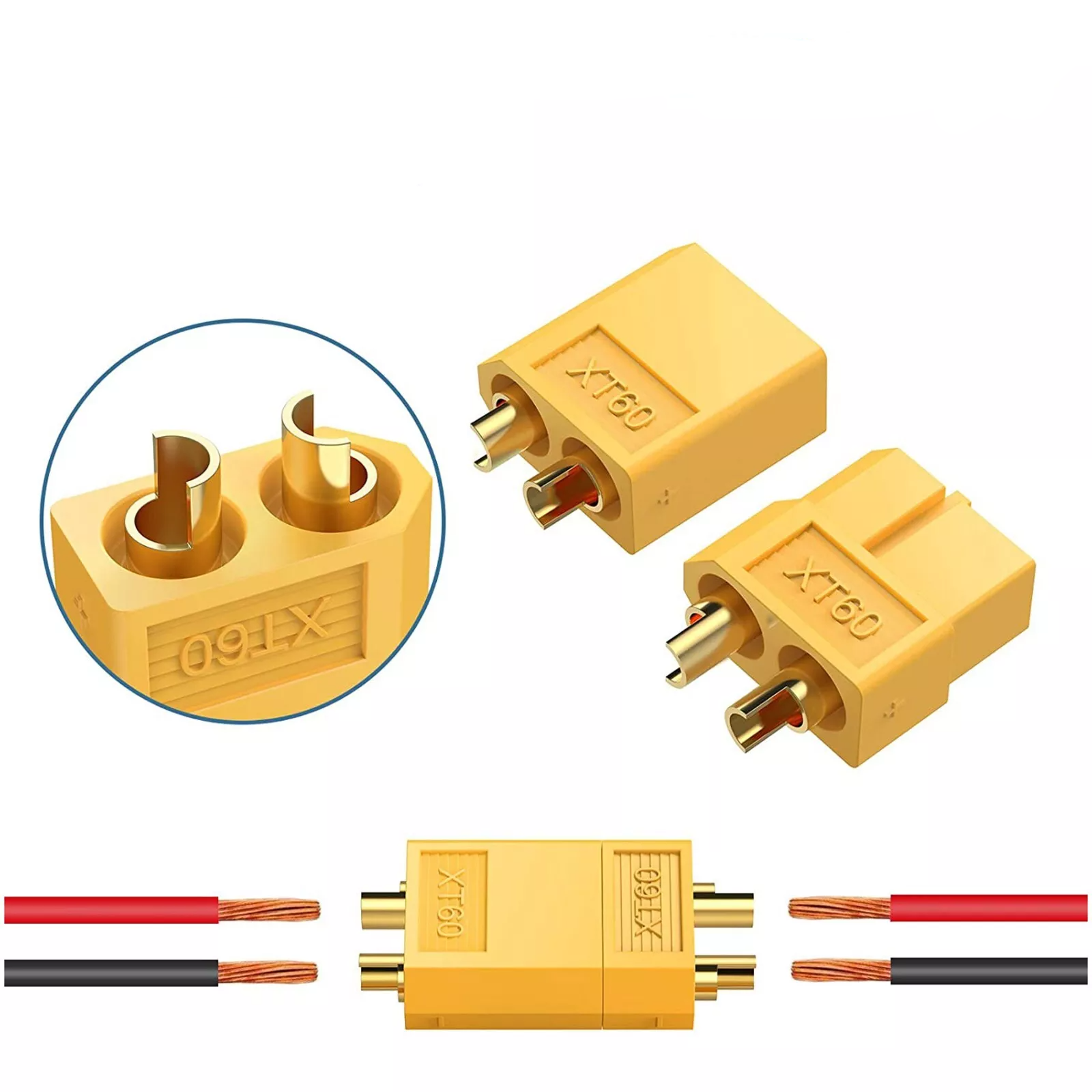

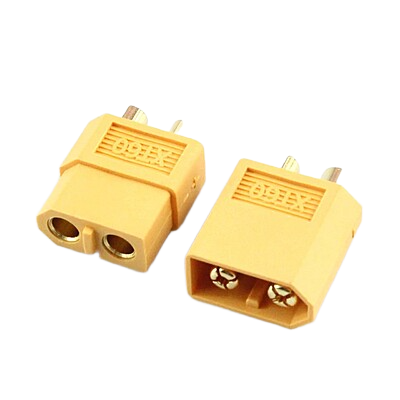

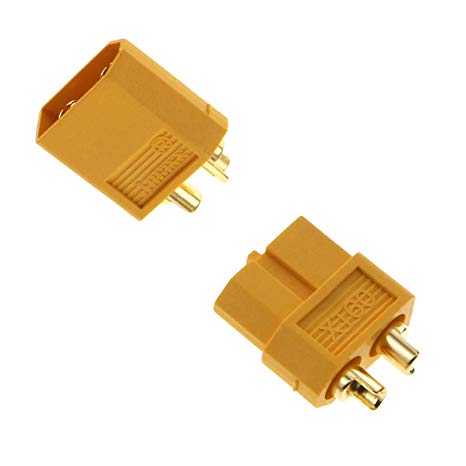

This pack of two AMASS XT60 Male + Female connectors provides reliable and secure power connections for your RC batteries, ESCs, and motors. Renowned for their high current handling and durable nylon housing with gold-plated pins, they ensure efficient power transfer and prevent accidental reverse polarity. Essential for any RC enthusiast or builder.
Choose Quantity
Product Details
Features
- Includes two male and two female connectors.
- High current rating (up to 60A continuous).
- Gold-plated pins for superior conductivity.
- Durable nylon housing prevents short circuits.
- Anti-reverse polarity design for safety.
- Easy to solder for secure connections.
- High temperature resistance for reliability.
- Ensures efficient power transfer.
- Ideal for RC batteries, ESCs, motors.
- Widely used in drones and RC vehicles.
Technical Details
- Connector Type: XT60 (Male & Female)
- Current Rating: 60A Continuous (Peak: 90A)
- Material: Gold-plated brass (pins), High-temp Nylon (housing)
- Temperature Resistance: -20°C to 120°C
- Recommended Wire Gauge: 12AWG to 14AWG
Additional Details
- Manufacturer: AMASS Electronics Co., Ltd.
- Brand: AMASS
- Generic Name: RC Battery Connector, ESC Connector, Motor Connector, XT60 Plug, Power Connector Set
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: Connecting LiPo/NiMH batteries to ESCs, ESCs to motors, power distribution boards (PDBs), drone power systems, RC cars, boats, planes, and various DIY electronics demanding high-current, reliable connections.
Package Details
- Includes: 2 x AMASS XT60 Male Connectors, 2 x AMASS XT60 Female Connectors (Total 2 Pairs)
Frequently Asked Questions
Q1. What is the maximum continuous current these XT60 connectors can handle?
Ans - AMASS XT60 connectors are designed to handle a continuous current of up to 60 Amps, with peak currents reaching up to 90 Amps, making them suitable for a wide range of RC applications.
Q2. Are these XT60 connectors difficult to solder?
Ans - No, AMASS XT60 connectors are generally easy to solder. Their design provides ample space for wire insertion, and the gold-plated terminals ensure excellent solderability when using a properly heated soldering iron.
Q3. Can these connectors be used for both batteries and ESCs?
Ans - Yes, XT60 connectors are universally used for both battery connections (often female on the battery) and ESC connections (often male on the ESC), providing a standardized and reliable power interface throughout your RC system.
