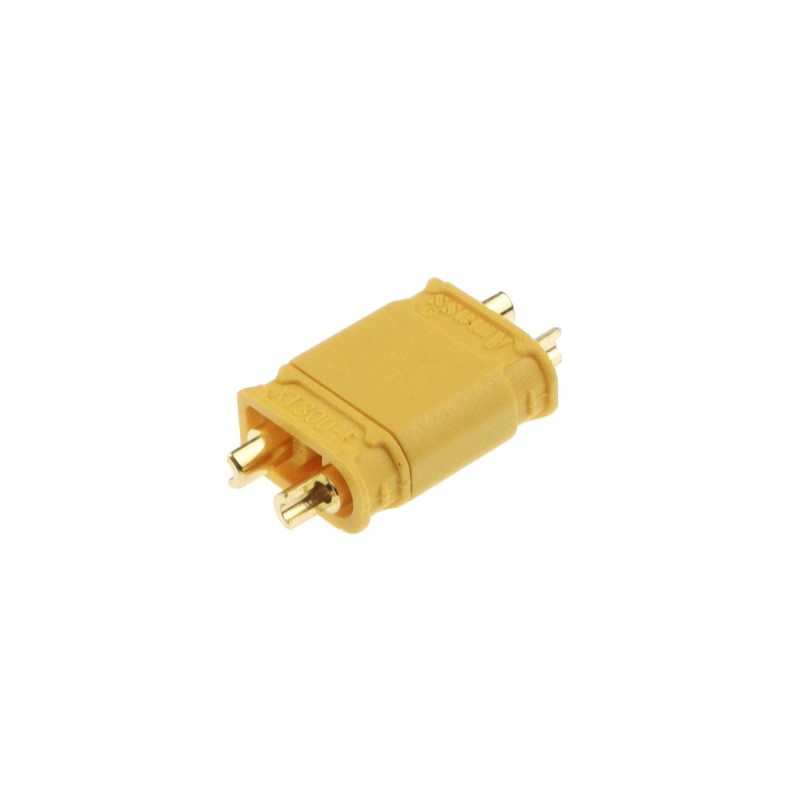

AMASS XT30U Connector
Non-returnable
₹99.00 - ₹229.00
The AMASS XT30U Connector is a compact and reliable solution for power connections in micro and mini RC applications. Designed for currents up to 30A, its robust construction and reverse polarity protection ensure safe and efficient power transfer. Ideal for small drones, park flyers, and lightweight robotics where space and weight are critical.
Instantaneous Current: 30A
Metal Material: Brass gold-plated
Recommend Cable Spec.: 14-18 AWG
Type
Nos
Product Details
Features
- Compact size, ideal for mini builds.
- Rated for currents up to 30 Amps.
- Reverse polarity protection for safety.
- Durable nylon housing, gold-plated pins.
- Lightweight design, minimizing added bulk.
- Ensures secure and reliable connections.
- Easy to solder for secure attachment.
- High temperature resistance for performance.
- Perfect for small drones and RC planes.
- Provides efficient power transfer.
- provides better protection from short-circuiting the batteries.
Technical Details
- Connector Type: XT30U (Male/Female pair)
- Current Rating: 30A (Continuous)
- Material: Gold-plated (pins), PA/Nylon (housing)
- Temperature Resistance: -20°C to 120°C (typical)
- Recommended Wire Gauge: 18AWG to 16AWG (for direct soldering)
Additional Details
- Manufacturer: AMASS Electronics Co., Ltd.
- Brand: AMASS
- Generic Name: XT30 Connector, Mini Power Connector, Micro Battery Connector, RC Power Plug, Compact ESC Connector
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: Micro FPV drones, tinywhoops, park flyers, small RC airplanes, mini RC cars, lightweight robotics, DIY electronics projects where space and weight are constrained.
Package Details
- Includes: AMASS XT30U Connector (packs of male and female pairs 2 or 5 pairs of XT30U connectors).
Frequently Asked Questions
Q1. What is the main difference between XT30 and XT30U connectors?
Ans - The XT30U is an updated version of the XT30, featuring a slightly more robust design with improved anti-sparking properties (though not fully anti-spark like AS150) and often a slightly more ergonomic shape for easier gripping.
Q2. What current range is the XT30U suitable for?
Ans - The AMASS XT30U connector is rated for a continuous current of up to 30 Amps, with peak current capabilities often reaching 40 Amps. This makes it ideal for setups with moderate power draw.
Q3. Can XT30U connectors be used interchangeably with XT30 connectors?
Ans - Yes, XT30U connectors are generally interchangeable with standard XT30 connectors as they share the same pin configuration and dimensions. The "U" version offers minor improvements without sacrificing compatibility.
