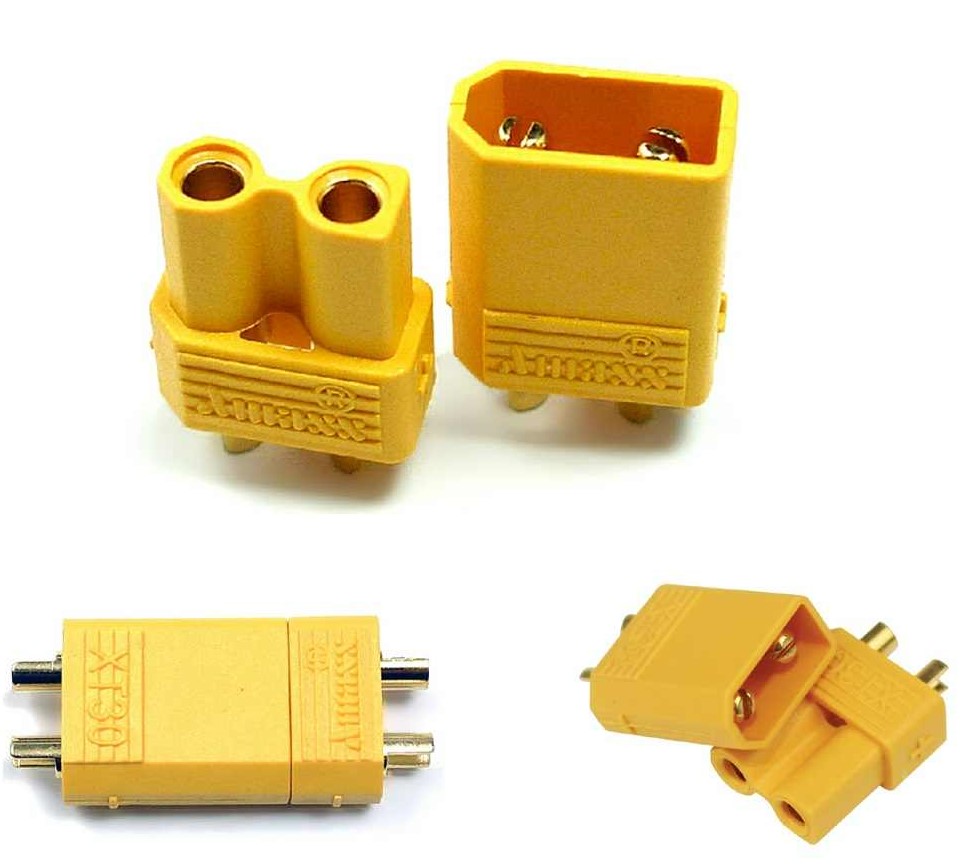

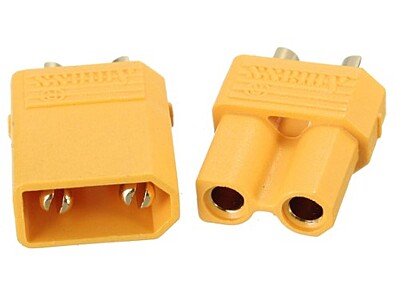

Amazing AMASS XT30U Male & Female Connector Set - Ultra-Light 30A High-Current Power Plug
In the 2026 FPV landscape, where every gram can mean the difference between a podium finish and a mid-pack result, the XT30U is the pilot's preferred choice. AMASS took the legendary XT30 platform and refined it into a leaner, meaner package. By optimizing the internal structure and housing, they've created a connector that is roughly 15% lighter than the original, yet maintains the same thermal and electrical performance.
Key Technical Advantages:
24K Gold Plating: The 0.05μm thick gold coating on the brass bullets ensures near-zero resistance and prevents the oxidation that can lead to "voltage sag" in humid Indian climates.
High-Temp Nylon Housing: The body is made from high-grade Polyamide (Nylon 66) with a UL94V-0 flammability rating, ensuring it won't melt or deform during the high-heat soldering required for 16AWG or 18AWG wires.
Backwards Compatibility: Despite the "U" designation, it mates perfectly with any standard XT30 connector, allowing you to upgrade your fleet incrementally.
Polarized Keying: The distinct D-shape prevents accidental reverse-polarity connections, protecting your ESC and flight controller from catastrophic failure.
Ergonomic Grip: The updated housing features subtle ribbing, making it much easier to disconnect—even with wet or sweaty hands during a tense race day.
FAQ: Top 5 Questions on AMASS XT30U
Q1: What is the difference between XT30 and XT30U?
A: The "U" stands for Updated/Ultra-light. The XT30U is a more modern version that is lighter and has a slightly improved internal design for better heat dissipation. They are 100% compatible with each other.
Q2: Can I use 14AWG wire with the XT30U?
A: While 14AWG is the absolute maximum, it is a very tight fit for the solder cups. For the best balance of weight and performance, 16AWG or 18AWG is the recommended wire gauge for this connector.
Q3: Is this an "Anti-Spark" connector?
A: No. While the XT30U has excellent contact geometry to minimize arcing, it does not have the built-in resistor found in the larger "S" (Anti-Spark) series like the XT90S. However, at 2S–4S voltages, sparking is rarely an issue.
Q4: Will this melt if I leave my soldering iron on it too long?
A: Because it is made from high-temp nylon, it is very resilient. However, to be safe, we always recommend plugging a male and female together while soldering to ensure the pins stay perfectly aligned if the plastic softens slightly.
Q5: Is this better than a Deans or T-plug?
A: In 2026, the XT-series is widely considered superior to Deans due to the bullet-style contact, which provides more surface area and a more secure, vibration-proof connection.
Expert Guide Question: Are you using this for a new 3-inch toothpick build or replacing the connectors on your 1S/2S batteries? Depending on your setup, I can help you pick the right AMASS Mounting Bracket or Panel Mount version to keep your build exceptionally clean!
