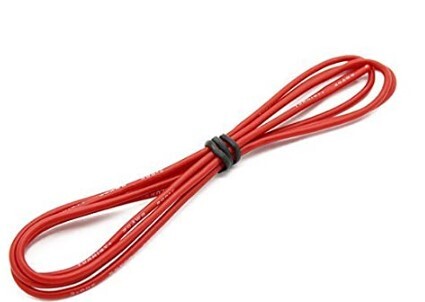

AMASS- SILICONE WIRE-20AWG-RED 1M
These wires are ideal for Mini Quad Motor wiring applications, especially because 20AWG is the standard wire gauge typically included with Mini Quad Brushless Motors. The 20AWG thickness provides an optimal balance between current-carrying capacity and flexibility, making it perfect for high-performance drone builds where space and weight are critical considerations.
Crafted from high-quality, flexible pure copper, these wires ensure excellent electrical conductivity and minimal power loss. The silicone insulation adds an extra layer of durability and heat resistance, allowing the wires to withstand high temperatures without melting or becoming brittle. This makes them particularly well-suited for demanding RC applications, including racing drones and custom quadcopters.
Features:
Made with high-strand count pure tinned copper for superior conductivity
Ultra-flexible silicone insulation for smooth installation and routing
Heat resistant from -60°C to +200°C for reliable performance in extreme conditions
Flame retardant and resistant to oils, solvents, and abrasion
Ideal for RC drones, hobby electronics, ESC and battery wiring
Maintains flexibility in both hot and cold environments
Lightweight, durable, and easy to manage
Technical Details:
Brand: AMASS
Wire Gauge: 20 AWG
Length: 1 meter (continuous length for multiple units)
Conductor Material: Tinned Pure Copper
Insulation Material: High-grade Silicone Rubber
Strand Count: ~105 strands of 0.08mm copper wire
Rated Voltage: 600V
Rated Temperature: -60°C to +200°C
Outer Diameter: ~2.0mm
Color: Red
Packing Details:
Packaging Type: Coiled, secured with a zip tie or twist tie
Length per Unit: 1 meter (continuous if you order multiple units)
Packaging Material: Anti-static, resealable pouch
Labeling: Product gauge, color, brand, and length clearly labeled
Shipping Protection: Shipped in bubble wrap or padded envelope
Weight (approx.): 10–12 grams per meter
Storage Note: Store in a cool, dry place away from direct sunlight
Additional Details:
Manufacturer: AMASS
Brand: AMASS
Generic Name: Flexible silicone wire || Pure copper wire || 20AWG red wire || Drone ESC wire || High temp RC cable || DIY electronic wire || Silicone coated flexible cable || Compact power wire || Hobby-grade wiring || Mini quad motor wire
Sold By: UAV Marketplace (an authorized seller of drone gear and electronic accessories)
Ideal For: RC drones, DIY electronics, battery and ESC connections, hobby builds, heat-sensitive setups, and compact circuit projects
FAQs
1. Will I get a continuous wire if I order more than 1 meter?
Yes, you'll receive a continuous length based on the quantity you order.
2. Is the wire suitable for high-temperature use?
Yes, it's rated for -60°C to +200°C and is highly heat resistant.
3. Can I use this wire for both power and signal?
Absolutely, the high-quality copper core ensures excellent performance for both.
